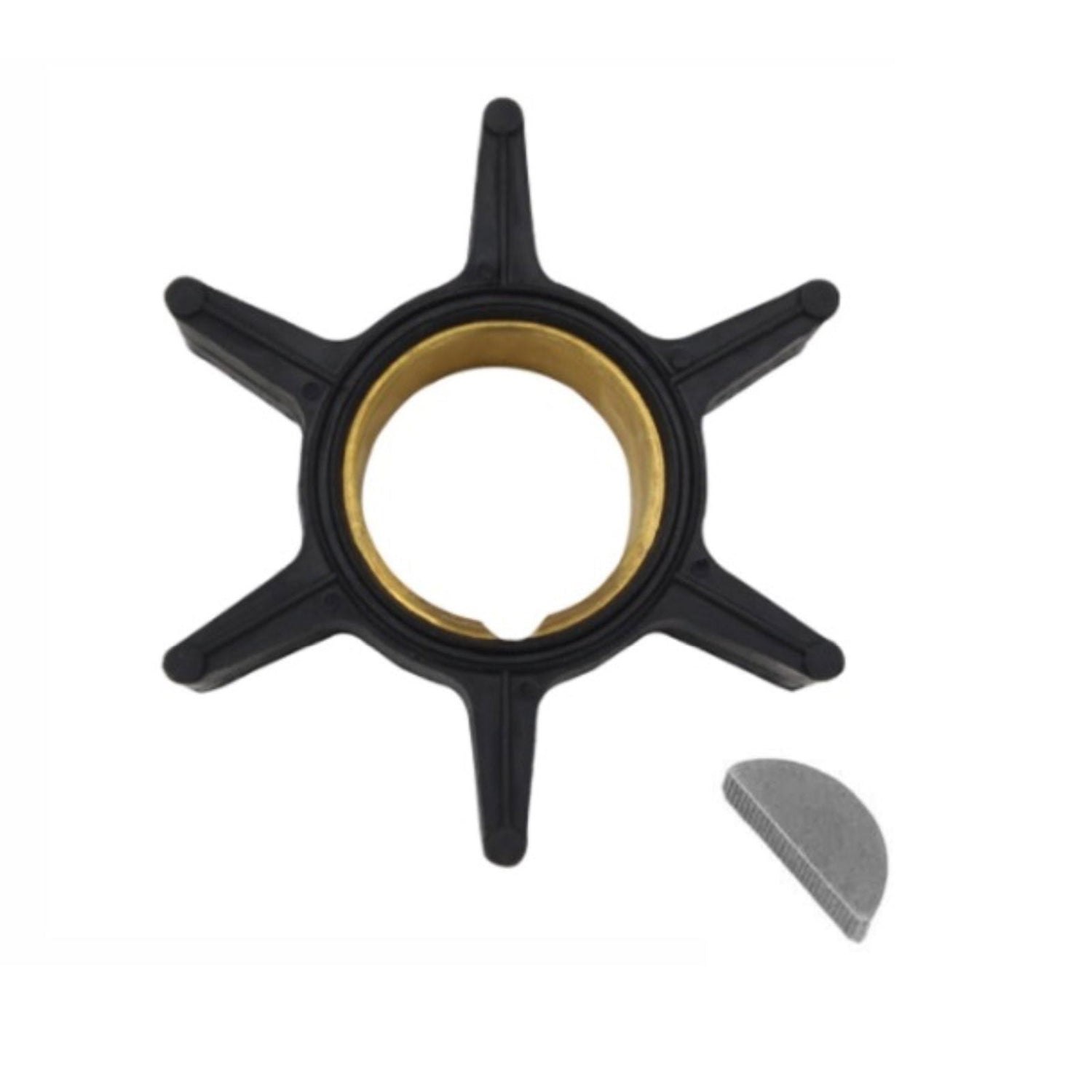

Water Pump Impeller – Fits Suzuki 2-Stroke 50-65 HP (Replaces 17461-95201, 18-3007)
Water Pump Impeller – Fits Suzuki 2-Stroke 50-65 HP (Replaces 17461-95201, 18-3007) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller – Fits Suzuki 2-Stroke 50-65 HP (Replaces 17461...
Product Details
This Water Pump Impeller is an essential replacement part for maintaining the engine cooling system on Suzuki 2-Stroke outboard motors (50–65 HP) from model years 1977–1997. Designed to OEM specifications, it ensures proper water circulation to prevent overheating and maintain engine performance.
It serves as a direct aftermarket replacement for Suzuki part 17461-95201 and interchanges with Sierra 18-3007, CEF 500312, and Mallory 9-45501.
- Installs as a direct replacement for the original factory part.
- Made from durable neoprene with a hardened nylon hub for longevity.
- Engineered specifically for use in seawater cooling systems.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17461-95201 | OEM Reference |
| Sierra | 18-3007 | Aftermarket Interchange |
| CEF | 500312 | Aftermarket Interchange |
| Mallory | 9-45501 | Aftermarket Interchange |
| Yamaha | 6G9-45501-01-00 | Cross-Reference |
| Yamaha | 6G9-45501-00-00 | Superseded Cross-Reference |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki models, this impeller fits a range of DT series two-stroke engines from the late 1970s to the late 1990s.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT50 | 50 | 2-Stroke | 1977–1984 | 17461-95201 | |
| Suzuki | DT55 | 55 | 2-Stroke | 1985–1997 | 17461-95201 | |
| Suzuki | DT60 | 60 | 2-Stroke | 1983 | 17461-95201 | |
| Suzuki | DT65 | 65 | 2-Stroke | 1977–1997 | 17461-95201 | |
| Suzuki | DT85 | 85 | 2-Stroke | 1977–1979 | 17461-95201 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct replacement
- Housing Material
- Neoprene with hardened nylon hub
- Dimensions
- Diameter: 67.5 mm (2.66 in)
Height: 19.5 mm (0.77 in)
Hub Shaft Diameter: 17.1 mm (0.67 in) - Number of Blades
- 6
- Other Technical Attributes
- Designed for seawater cooling systems
What’s in the Box
- 1 x Water Pump Impeller (replaces 17461-95201)
Installation Notes
- Disconnect the engine's battery and shift the outboard into neutral.
- Drain the gearcase oil and remove the lower unit (gearcase) from the outboard motor.
- Locate and unbolt the water pump housing cover.
- Note the rotational direction of the old impeller blades before removal.
- Remove the old impeller, key, and gaskets. Thoroughly clean the housing interior.
- Install the new impeller by turning the driveshaft clockwise while pushing down, ensuring the blades are correctly oriented.
- Reassemble the water pump housing with new gaskets (sold separately) and torque bolts to manufacturer specifications.
- Reinstall the lower unit, refill with gearcase oil, and reconnect the battery.
- Start the engine in water and verify a steady stream from the "tell-tale" water outlet.
Troubleshooting & FAQ
How do I know if my impeller is failing?
Common signs of a worn or damaged impeller include a weak or nonexistent water stream from the engine's tell-tale outlet, an engine temperature alarm, or visible steam from the exhaust. Upon inspection, you might find cracked, brittle, or missing impeller blades.
How often should I replace the water pump impeller?
For preventative maintenance, it is best practice to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of engine use. Replacement frequency should be increased if operating primarily in saltwater or sandy/silty conditions.
Does this impeller kit include gaskets or the housing?
This product includes the impeller only, as detailed in the "What’s in the Box" section. Gaskets, wear plates, and other water pump repair components are sold separately.
Is this part difficult to install myself?
Replacing an impeller is a common maintenance task that can be performed by a mechanically inclined owner with the right tools. However, it involves removing the lower unit, which can be heavy and complex. If you are not confident, professional installation is recommended to ensure safety and correct function.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
