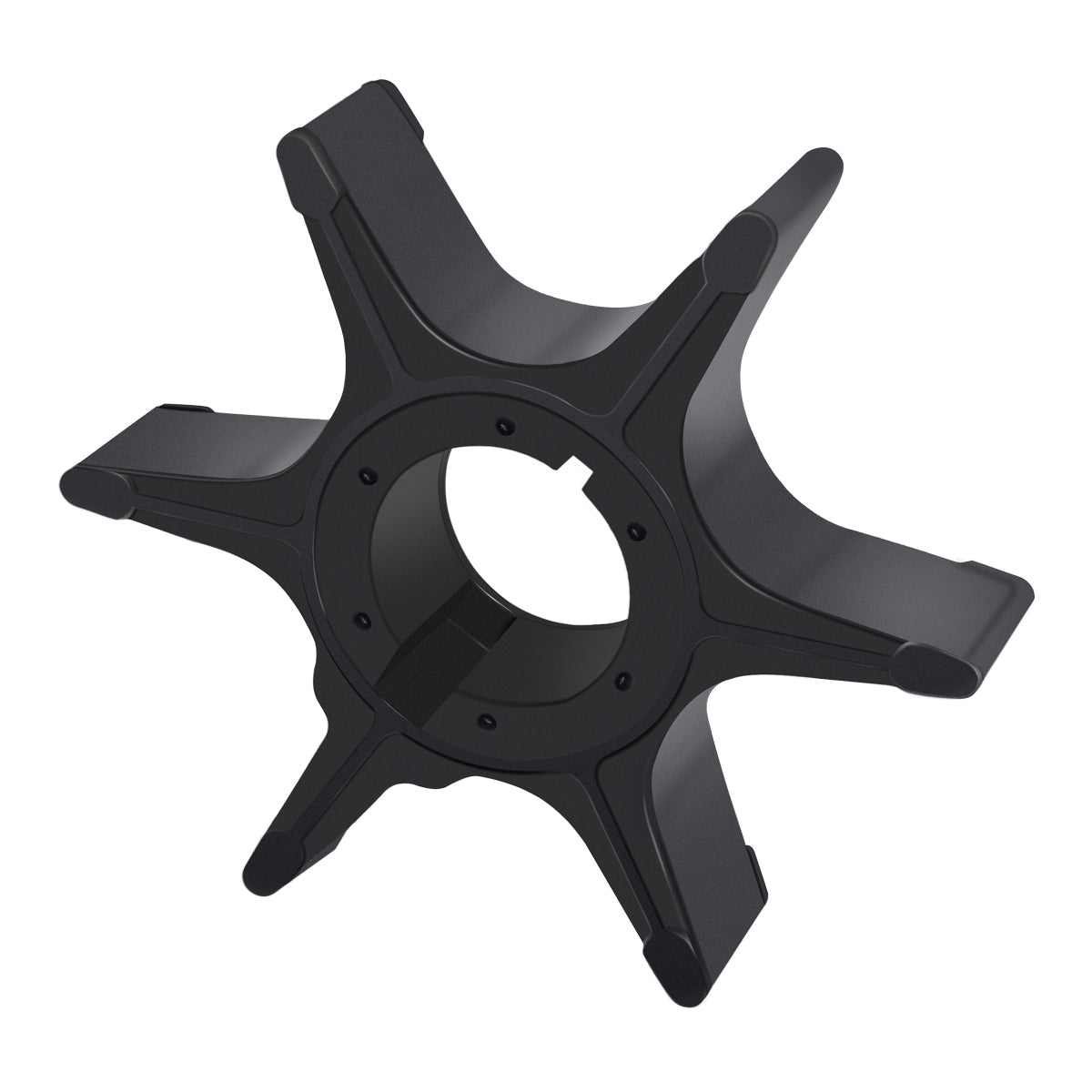

Water Pump Impeller – Fits Suzuki 25/30 HP Four-Stroke (Replaces 17461-94L00)

$23.00

Shipping calculated at checkout.

Water Pump Impeller – Fits Suzuki 25/30 HP Four-Stroke (Replaces 17461-94L00) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This high-quality Water Pump Impeller is engineered to fit Suzuki DF25A and DF30A four-stroke outboards, ensuring reliable cooling system performance. It serves as an essential component for maintaining proper engine temperature and preventing overheating.

It is a direct replacement for Suzuki part number 17461-94L00, providing an exact-fit alternative to the original component.

Engineered for direct replacement and straightforward installation.
Constructed from durable, high-strength rubber for longevity in marine environments.
Includes one impeller to complete your water pump service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17461-94L00

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Suzuki Outboards: This part is confirmed to fit the following models. Since year data is not available, please verify your part number before ordering.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF25A	25	4-Stroke		17461-94L00
Suzuki	DF30A	30	4-Stroke		17461-94L00

Technical Specs

Product Type: Water Pump Impeller
Installation: Direct replacement
Housing Material: Rubber
Housing Color: Black

What’s in the Box

1 x Water Pump Impeller (17461-94L00)

Installation Notes

Disconnect the negative battery cable and shut off the fuel supply.
Remove the lower unit (gearcase) bolts and carefully lower it from the outboard's midsection.
Unscrew the bolts holding the water pump housing cover and remove the cover.
Observe the vane direction of the old impeller before pulling it straight off the driveshaft.
Clean any debris or corrosion from the pump housing, wear plate, and cover.
Slide the new impeller onto the driveshaft while turning the shaft clockwise to correctly orient the vanes.
Reinstall the water pump housing, ensuring gaskets are aligned, and torque bolts to specification.
Reattach the lower unit to the engine, making sure the driveshaft and water tube align.
Reconnect the battery and test the engine using a flush attachment to confirm strong water flow from the telltale outlet.

Troubleshooting & FAQ

How do I confirm this impeller fits my Suzuki engine?

This impeller is specifically designed for Suzuki DF25A and DF30A four-stroke outboard models. The most reliable way to confirm fitment is to cross-reference your existing part number with the OEM number this part replaces: 17461-94L00.

What are the signs of a worn or failing water pump impeller?

Symptoms of a bad impeller include a weak or intermittent water stream from the engine's telltale port, engine overheating alarms, or a melted water pump housing. Regular inspection is key.

How often should an impeller be replaced?

For preventative maintenance, it is recommended to inspect your impeller annually and replace it every 1-2 years or 100-200 hours of operation, whichever comes first. Usage in saltwater or silty water may require more frequent changes.

Is this a difficult part to install?

Installation requires removing the lower unit of the outboard, which can be challenging without the proper tools and mechanical knowledge. For this reason, professional installation is recommended to ensure safety and correct function.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
