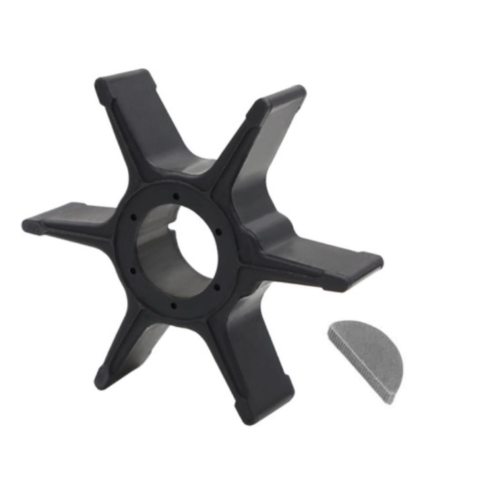

Water Pump Impeller – Fits Suzuki DF 25-50 HP & DT 20-60 HP (Replaces 17461-96312, 18-3096)

$14.90

Shipping calculated at checkout.

Water Pump Impeller – Fits Suzuki DF 25-50 HP & DT 20-60 HP (Replaces 17461-96312, 18-3096) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller – Fits Suzuki DF 25/30/40/50 HP & DT 20/25/30/35/40/60 HP (Replaces 17461-96312) ensures proper engine cooling by efficiently circulating water. It is designed for a precise fit on a wide range of Suzuki outboard motors, including 2-stroke DT series (20-60 HP) and 4-stroke DF series (25-70 HP) models from various years.

This part serves as a direct replacement for Suzuki OEM parts 17461-96300, 17461-96301, 17461-96302, 17461-96310, 17461-96311, 17461-96312, 17461-94L00, 17461-96402, 17461-96401, 17461-96400, 17461-964L0 and aftermarket parts from Sierra (18-3096), CEF (500362), and Mallory (9-45219).

Installs as a direct replacement for your original impeller.
Made from durable neoprene with a hardened nylon hub for longevity.
Includes the necessary impeller key for a complete installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17461-96312
Suzuki	17461-96300
Suzuki	17461-96301
Suzuki	17461-96302
Suzuki	17461-96310
Suzuki	17461-96311
Suzuki	17461-94L00
Suzuki	17461-96402
Suzuki	17461-96401
Suzuki	17461-96400
Suzuki	17461-964L0
Sierra	18-3096
CEF	500362
Mallory	9-45219

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DT20	20	2-Stroke	1986–1988	17461-96312
Suzuki	DT25	25	2-Stroke	1983–1988	17461-96312
Suzuki	DT25C	25	2-Stroke	1983–1988	17461-96312
Suzuki	DT30	30	2-Stroke	1983–1987	17461-96312
Suzuki	DT30C	30	2-Stroke	1983–1987	17461-96312
Suzuki	DT35	35	2-Stroke	1987–1989	17461-96312
Suzuki	DT40	40	2-Stroke	1984–1998	17461-96312
Suzuki	DT40C	40	2-Stroke	1984–1998	17461-96312
Suzuki	DT60	60	2-Stroke	1984	17461-96312
Suzuki	DF25	25	4-Stroke	1999–2010	17461-96312
Suzuki	DF25A	25	4-Stroke	2015 & up	17461-96312
Suzuki	DF25 V-Twin	25	4-Stroke	2006–2010	17461-96312
Suzuki	DF30	30	4-Stroke	1999–2007	17461-96312
Suzuki	DF30A	30	4-Stroke	2015 & up	17461-96312
Suzuki	DF40	40	4-Stroke	1999 & up	17461-96312
Suzuki	DF50	50	4-Stroke	1999 & up	17461-96312
Suzuki	DF60A	60	4-Stroke	2010	17461-96312
Suzuki	DF70	70	4-Stroke	2010	17461-96312
Suzuki	PU40 (JET)	40	4-Stroke	1989–1994	17461-96312

Technical Specs

Product Type: Water Pump Impeller
Installation: Direct replacement
Material: Neoprene and hardened nylon
Blades: 6
Impeller Height: 16.0 mm (0.63 inch)
Overall Diameter: 67.5 mm (2.66 inch)
Hub Shaft Diameter: 17.1 mm (0.67 inch)
Weight: 20 g (0.7 oz)
Other Technical Attributes: Key included
Warranty: 1 year (manufacturer)

What’s in the Box

1 x Water Pump Impeller (17461-96312)
1 x Impeller Key

Installation Notes

Consult your owner's manual for model-specific instructions and safety warnings before you begin.
Disconnect the battery and remove the engine cover. Disconnect the shift linkage.
Place the outboard in neutral and remove the bolts securing the lower unit (gearcase) to the engine.
Carefully lower and remove the gearcase. The driveshaft will disengage from the powerhead.
Locate the water pump housing on top of the gearcase. Remove the bolts and lift the housing off.
Remove the old impeller, gasket, and wear plate. Note the direction of the old impeller's blades.
Clean the housing and plate surfaces thoroughly. Install the new wear plate and gasket.
Slide the new impeller key into the driveshaft keyway. Align the new impeller's keyway and slide it down.
Install the new impeller by sliding it onto the driveshaft, rotating the shaft in the direction of engine rotation to seat the blades correctly within the housing.
Reinstall the water pump housing, ensuring a proper seal. Tighten bolts to the specified torque.
Re-install the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly. Fasten the bolts.
Reconnect the shift linkage and battery. Test the engine cooling system using a flush attachment before open water use.

Troubleshooting & FAQ

How do I know if this impeller fits my Suzuki engine?

This impeller is designed for a wide range of Suzuki 2-stroke (DT series) and 4-stroke (DF series) outboards. The best way to confirm fitment is to check your engine's model and year against the compatibility table on this page. You can also verify by cross-referencing your existing impeller's part number with our Part Number Matrix.

What are the signs of a failing water pump impeller?

Common symptoms include a weak or non-existent "telltale" water stream, engine overheating alarms, a reduction in engine power, or steam from the exhaust. If you notice any of these signs, inspect your water pump immediately.

How often should I replace my impeller?

For preventative maintenance, it is recommended to replace your water pump impeller every 1-2 years or every 100-200 hours of operation, depending on usage conditions. More frequent replacement may be necessary if you operate in sandy, silty, or saltwater environments.

Is this impeller difficult to install?

Installation can be performed by a mechanically inclined individual with the right tools. It involves removing the lower unit of the outboard. If you are not comfortable with this procedure, we strongly recommend professional installation to ensure safety and proper function.

Does this impeller kit include the drive key?

Yes, this kit includes both the neoprene impeller and the required impeller key for a complete installation.

What's the difference between this impeller and the original Suzuki part?

This is an aftermarket part designed to meet or exceed OEM specifications. It is made from high-quality neoprene and hardened nylon, comparable to the original, to ensure reliable performance and durability, but at a more competitive price point.

Is this an OEM part or an aftermarket replacement?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

What are your shipping speed and cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

What is the warranty and return policy?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
