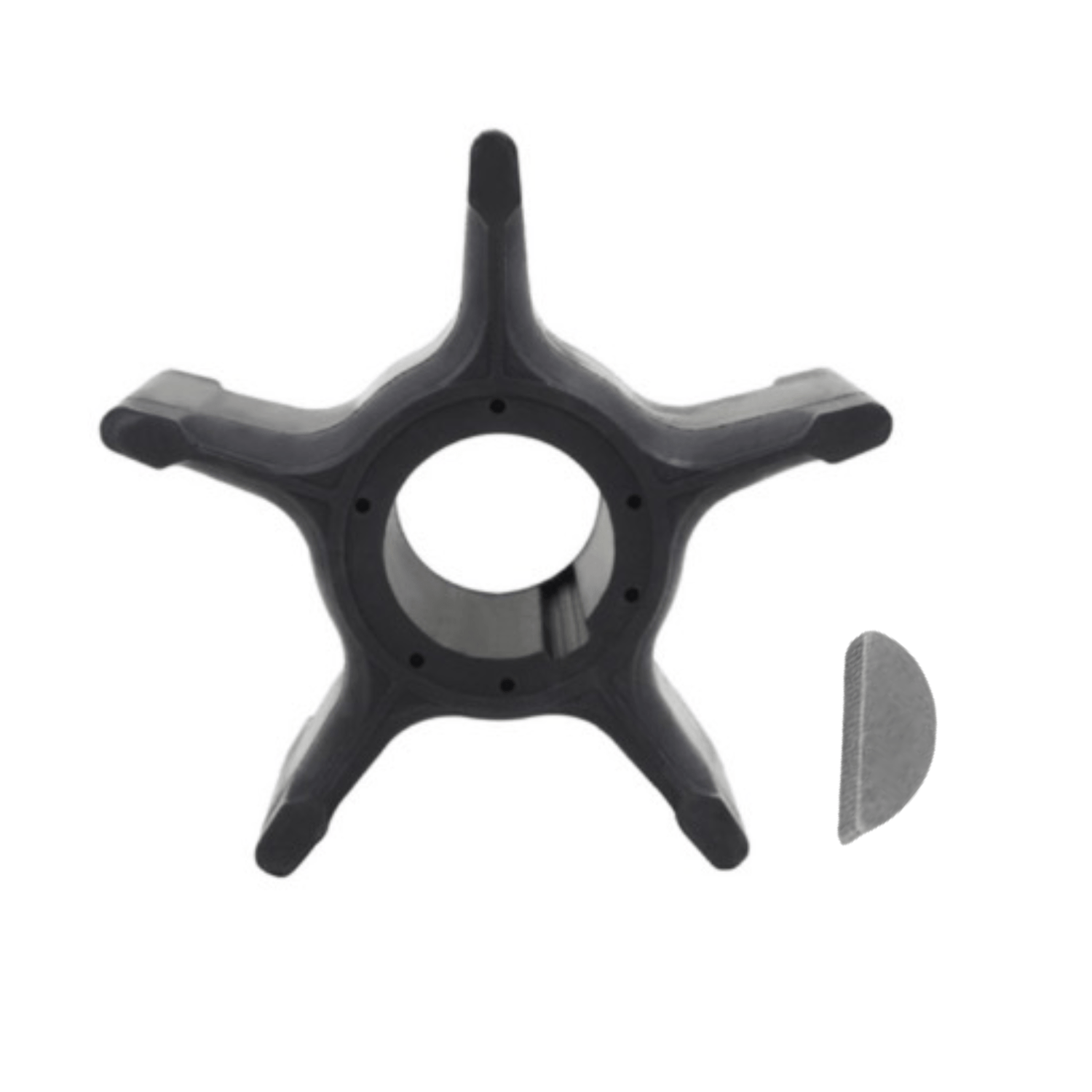

Water Pump Impeller – Fits Suzuki DF200/225/250/300/350HP Outboards (Replaces 17461-93J00, 17461-93J01)
Water Pump Impeller – Fits Suzuki DF200/225/250/300/350HP Outboards (Replaces 17461-93J00, 17461-93J01) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller – Fits Suzuki DF200/225/250/300/350HP Outboards...
Product Details
This aftermarket Water Pump Impeller is designed for Suzuki 4-Stroke outboard motors, including DF200, DF225, DF250 (non-A models, 2004–2018), and DF300 (non-A models, 2007–2018) engines. It provides a reliable, direct-fit solution for maintaining your engine's cooling system.
It serves as a direct cross-reference for Suzuki part numbers 17461-93J00 and 17461-93J01, as well as aftermarket equivalents from CEF Marine, Sierra Marine, and Mallory Marine.
- Installs as a direct OEM-style replacement, no modifications required.
- Constructed from a durable blend of neoprene and hardened nylon for longevity.
- Manufactured to meet or exceed original equipment manufacturer (OEM) specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 17461-93J00 |
| Suzuki | 17461-93J01 |
| CEF Marine | 500393 |
| Sierra Marine | 18-3035 |
| Mallory Marine | 9-45507 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki owners: Please note that this part is specified for non-A models within the listed year ranges. It is critical to verify your engine is not an "A" variant before purchasing.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF200 | 200 | 4-Stroke | 2004–2018 | 17461-93J00/17461-93J01 | For non-A models |
| Suzuki | DF225 | 225 | 4-Stroke | 2004–2018 | 17461-93J00/17461-93J01 | For non-A models |
| Suzuki | DF250 | 250 | 4-Stroke | 2004–2018 | 17461-93J00/17461-93J01 | For non-A models |
| Suzuki | DF300 | 300 | 4-Stroke | 2007–2018 | 17461-93J00/17461-93J01 | For non-A models |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM replacement
- Housing Material
- Neoprene and hardened nylon
- Dimensions
- (A) 24.30mm × (B) 87mm × (C) 39mm
- Other Technical Attributes
- Manufactured to OEM specifications using the same materials as originals
What’s in the Box
- 1 x Water Pump Impeller (Replaces 17461-93J00 / 17461-93J01)
Installation Notes
- Disconnect the battery and ensure the engine is off and cool before starting.
- Remove the lower unit gear case from the outboard motor.
- Unbolt and remove the water pump housing to access the old impeller. Note the orientation of the old impeller's blades.
- Clean the housing interior and inspect it for scoring, warping, or corrosion. Replace the housing if any damage is found.
- Lightly grease the new impeller with marine grease and install it into the pump cup, rotating clockwise to seat the blades correctly.
- Reassemble the water pump housing, using a new gasket, and torque bolts to manufacturer specifications.
- Reinstall the lower unit, ensuring the driveshaft and water tube are correctly aligned.
- Once assembled, start the engine in water and verify a strong, steady stream issues from the tell-tale outlet.
Troubleshooting & FAQ
Will this impeller fit my Suzuki DF250A model?
No. This impeller is specifically designed for the "non-A" models of the Suzuki DF200, DF225, DF250, and DF300. Please verify your exact model number does not contain an "A" before ordering.
What are the signs of a failing impeller?
Common symptoms include the engine overheating at idle or low speeds, a weak or intermittent water stream from the "tell-tale" outlet, or a melted water pump housing. Visible cracks, brittleness, or missing vanes on the old impeller also indicate failure.
How often should I replace my water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 2-3 years or 200-300 operating hours, whichever comes first. This interval can be shorter in water with high levels of sand or silt.
Is this an OEM part or an aftermarket equivalent?
This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component. It is engineered to meet or exceed OEM specifications using comparable materials and is manufactured in an ISO 9002 certified facility with batch-inspections for quality assurance.
How fast do you ship and what does it cost?
We ship worldwide, with most orders arriving in 5–15 days. Standard shipping is free for most regions. Expedited shipping options, where available, will be presented at checkout for an additional fee.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter an issue, please contact our support team with your order details. Returns are accepted for unused items in their original condition within our standard return window. Refer to our full policy page or contact us for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
