Product Details

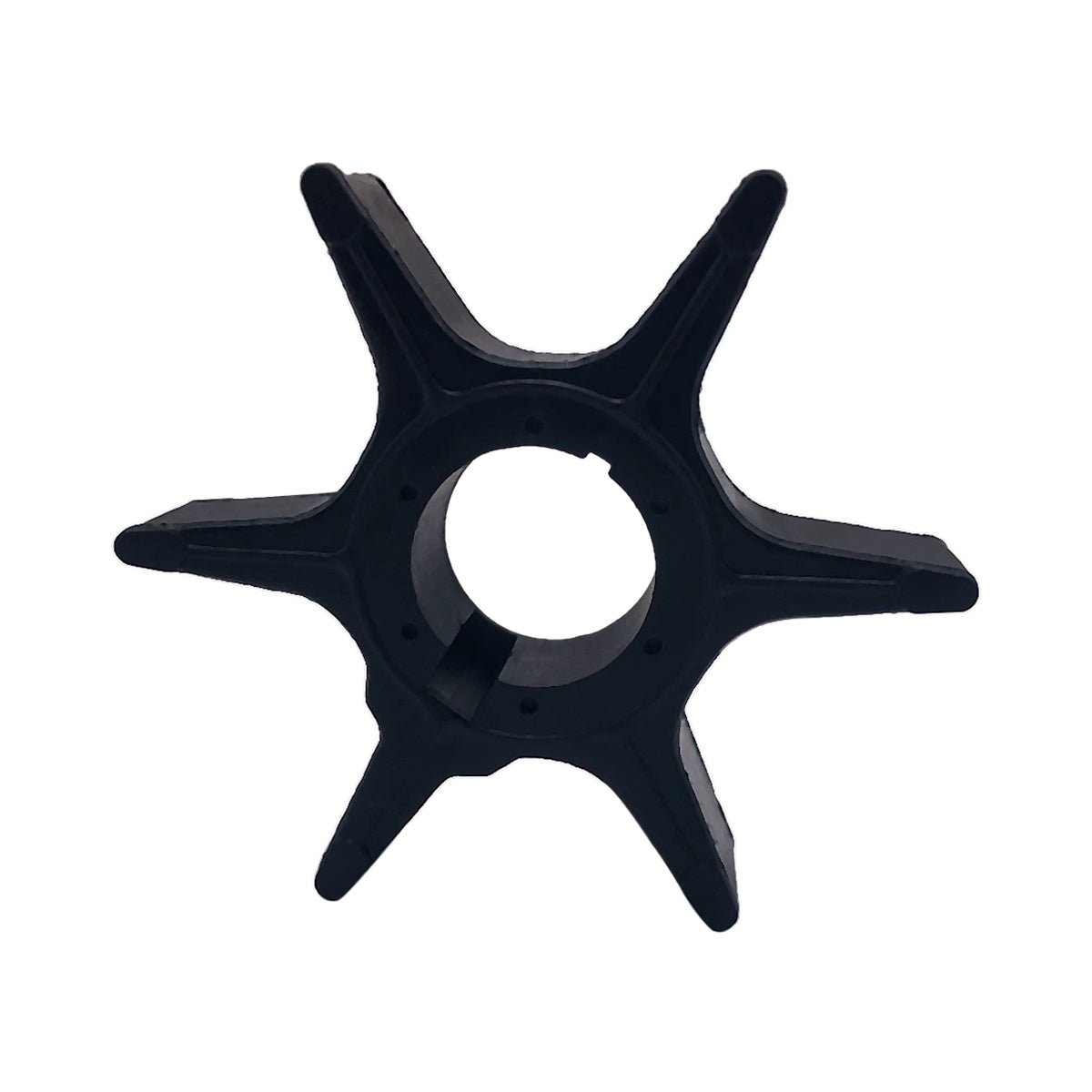

This replacement Water Pump Impeller – Fits Suzuki DF25A/DF30A Outboards (Replaces 17461-94L00) is a standard cooling system component for Suzuki DF25A and DF30A 4-Stroke outboard motors from 2014 to current model years. It ensures your engine maintains proper operating temperature by circulating coolant efficiently.

This impeller is a direct replacement for Suzuki OEM part 17461-94L00 and aftermarket equivalents like AM17461-94L00.

Engineered for direct-fit installation.
Constructed from durable rubber with a solid brass hub.
Features a key slot design for precise alignment during installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17461-94L00
Aftermarket	AM17461-94L00

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Compatibility for Suzuki outboard motors.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF25A	25	4-Stroke	2014–Current	17461-94L00	Part of water pump kit 17400-94L21
Suzuki	DF30A	30	4-Stroke	2014–Current	17461-94L00	Part of water pump kit 17400-94L21
Suzuki	DT40	40	2-Stroke	1983	17461-94L00	Listed in JLM Marine compatibility
Suzuki	DT50	50	2-Stroke	Up to 1983	17461-94L00	Listed in JLM Marine compatibility
Suzuki	DT55	55	2-Stroke	1985–1997	17461-94L00	Listed in JLM Marine compatibility
Suzuki	DT60	60	2-Stroke	1983	17461-94L00	Listed in JLM Marine compatibility
Suzuki	DT65	65	2-Stroke	1985–1997	17461-94L00	Listed in JLM Marine compatibility

Technical Specs

Product Type: Water Pump Impeller
Installation: Direct Replacement
Housing Material: Rubber with Brass Hub
Dimensions: Diameter: 51.8 mm, Hub diameter: 17 mm, Thickness: 19 mm
Other Technical Attributes: Key slot design for proper installation alignment

What’s in the Box

1 x Water Pump Impeller (17461-94L00)

Installation Notes

Disconnect the battery and remove the engine cover.
Drain the gearcase oil from the lower unit.
Unbolt and carefully lower the gearcase from the outboard's midsection.
Locate and unbolt the water pump housing cover.
Remove the old impeller, noting the direction its vanes are bent.
Clean any debris from the pump housing and inspect it for wear or damage.
Install the new impeller by sliding it onto the driveshaft. Rotate the shaft clockwise while pushing down to correctly orient the vanes.
Reinstall the water pump housing and torque its bolts to manufacturer specifications.
Reattach the lower unit to the engine, ensuring the driveshaft and water tube align correctly.
Refill the lower unit with the specified gear oil.
Start the engine using a flush-muzzle or in the water and confirm a steady stream from the tell-tale port.

Troubleshooting & FAQ

How do I know if this impeller fits my Suzuki outboard?

This impeller is a confirmed fit for Suzuki DF25A and DF30A (4-Stroke) models from 2014 to present. It also cross-references to several older DT 2-Stroke models. To guarantee fitment, always compare your engine's required part number to 17461-94L00 before ordering.

What are signs of a failing water pump impeller?

Common signs include a weak or non-existent water stream from the "tell-tale" indicator, engine overheating alarms, and visible damage (cracks, missing vanes, brittleness) on the old impeller upon inspection.

How often should I replace my impeller?

As a preventative maintenance item, we recommend replacing the impeller every 100-200 operating hours or every 1-2 years, whichever comes first. More frequent replacement may be necessary if you operate in sandy, silty, or debris-heavy water.

Does this impeller come in a full kit?

This listing is for the impeller only. It is also included as a component in the complete water pump repair kit, Suzuki part number 17400-94L21.

My Suzuki is an older 2-Stroke DT model. Will this fit?

While some compatibility data suggests this part fits certain DT models (like the DT40, DT55, and DT65), this information is less consistent. We strongly recommend verifying the part number 17461-94L00 in your engine's official service manual before purchasing for these older models.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
