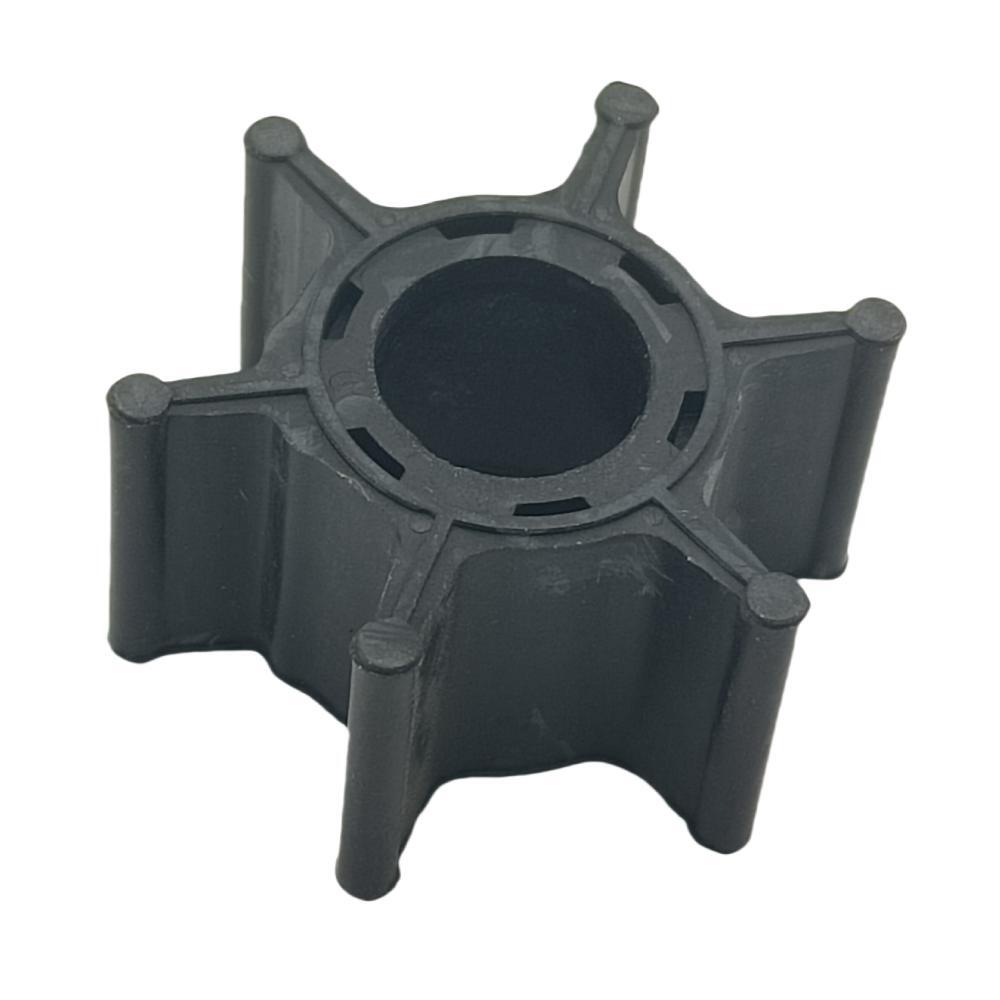

Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 17461-93501, 17461-93500)
Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 17461-93501, 17461-93500) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 174...
Product Details
This Water Pump Impeller – Fits Suzuki DT9.9/DT16 2-Stroke (Replaces 17461-93501, 17461-93500) is engineered for Suzuki's 9.9HP and 16HP DT model 2-stroke outboards. It ensures your engine's cooling system functions effectively, preventing overheating and maintaining performance.
It serves as a direct replacement for multiple aftermarket part numbers, including Wingogo 17461-93501/17461-93500, Soxa Marine 17461-93501/17461-93500, and JLM Marine 17461-93501/17461-93500.
- Engineered for direct replacement installation.
- Constructed from durable CR Neoprene rubber for longevity.
- Some offerings include the necessary impeller key for a complete swap.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki (OEM) | 17461-93501 |
| Suzuki (OEM) | 17461-93500 |
| Wingogo | 17461-93501 / 17461-93500 |
| Soxa Marine | 17461-93501 / 17461-93500 |
| JLM Marine | 17461-93501 / 17461-93500 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Suzuki | DT9.9 | 9.9 | 2-Stroke | 17461-93501, 17461-93500 | |
| Suzuki | DT16 | 16 | 2-Stroke | 17461-93501, 17461-93500 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct Replacement
- Housing Material
- CR Neoprene Rubber
- Housing Color
- Black
- Dimensions
- 5.0 x 5.0 x 2.0 inches (127 x 127 x 50.8 mm)
- Weight
- 0.32 ounces (9.07 grams)
- Other Technical Attributes
- Includes key in some offerings (varies by brand)
What’s in the Box
- 1 x Water Pump Impeller (17461-93501/17461-93500)
- 1 x Impeller Key (09420-03002) - *Included only with some brands/offerings*
Installation Notes
- Disconnect the spark plug leads and shift the outboard into neutral.
- Remove the bolts securing the lower unit (gearcase) to the engine leg.
- Carefully lower and separate the gearcase from the driveshaft housing.
- Locate and unbolt the water pump housing cover.
- Pry or slide the old impeller off the driveshaft, being sure to retrieve the small drive key.
- Clean any corrosion or debris from the housing interior and wear plate.
- Insert the new key into the driveshaft slot and slide the new impeller on, rotating clockwise to seat the vanes.
- Re-install the water pump housing and torque bolts to manufacturer specifications.
- Re-attach the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly. Secure all bolts.
- Reconnect spark plug leads and test the engine in water, confirming a steady telltale stream.
Troubleshooting & FAQ
How do I confirm this impeller fits my Suzuki engine?
This impeller is designed specifically for Suzuki DT9.9 and DT16 2-stroke outboard models. Always check your engine's model number and cross-reference the OEM part numbers (17461-93501, 17461-93500) listed here before purchasing.
What are the signs of a failing water pump impeller?
Key indicators of a worn or failed impeller include the engine overheating, a weak or non-existent water stream from the "telltale" outlet, or an alarm from your engine's warning system. Upon inspection, you might find cracked, broken, or brittle vanes on the old impeller.
How often should I replace the impeller?
As a general rule, it's best to inspect your impeller annually and replace it every 1-2 years or every 100-200 hours of operation. Replacement intervals should be shorter if you frequently operate in sandy, silty, or saltwater environments.
Does this kit include the impeller key?
Yes, the package typically includes one impeller key (part number 09420-03002). However, please note that package contents can vary by brand or specific offering, as noted in the "What's in the Box" section.
Is this an OEM or aftermarket part?
This listing is for an aftermarket replacement part, not an OEM component. It is built to meet or exceed OEM-level specifications using comparable, high-quality materials. Our parts are manufactured in an ISO 9002 certified facility and are batch-inspected for quality and consistency.
What are the shipping speed and cost?
We ship worldwide quickly, with typical transit times of 5–15 days for most regions. Standard shipping is free for all orders. Expedited shipping options may be available at checkout, depending on your location.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. See our full policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not install.
- This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component.
- Professional installation is highly recommended for safety, proper function, and to prevent engine damage.
