Water Pump Impeller Kit – Fits Suzuki 60-100 HP (Replaces 17461-87E00, 17461-87E10, 17461-87E11, 17461-87E12, Sierra 18-3049)
Water Pump Impeller Kit – Fits Suzuki 60-100 HP (Replaces 17461-87E00, 17461-87E10, 17461-87E11, 17461-87E12, Sierra 18-3049) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller Kit – Fits Suzuki 60-100 HP (Replaces 17461-87E...
Product Details
This Water Pump Impeller Kit is a direct replacement for Suzuki 2-Stroke DT90/DT100 and 4-Stroke DF60/DF70/DF80/DF90 outboard engines from approximately 1998 to 2007. It restores cooling system performance to prevent overheating and ensure engine longevity.
Replaces Suzuki part numbers 17461-87E00, 17461-87E10, 17461-87E11, and 17461-87E12, as well as Sierra 18-3049.
- Constructed with a modern, durable neoprene impeller for reliable performance.
- Engine mount installation for straightforward replacement of the original unit.
- Includes the impeller and drive key for a complete installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 17461-87E00 |
| Suzuki | 17461-87E10 |
| Suzuki | 17461-87E11 |
| Suzuki | 17461-87E12 |
| Sierra | 18-3049 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DT90 | 90 | 2-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
| Suzuki | DT100 | 100 | 2-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
| Suzuki | DF60 | 60 | 4-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
| Suzuki | DF70 | 70 | 4-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
| Suzuki | DF80 | 80 | 4-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
| Suzuki | DF90 | 90 | 4-Stroke | 1998–2007 | 17461-87E00/10/11/12 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Engine Mount
- Housing Material
- Neoprene (Impeller)
- Other Technical Attributes
- Modern Neoprene construction
- Package Dimensions
- 299.97 × 199.9 × 59.94 mm (11.81 × 7.87 × 2.36 in)
- Weight
- 0.085 kg (3 oz)
What’s in the Box

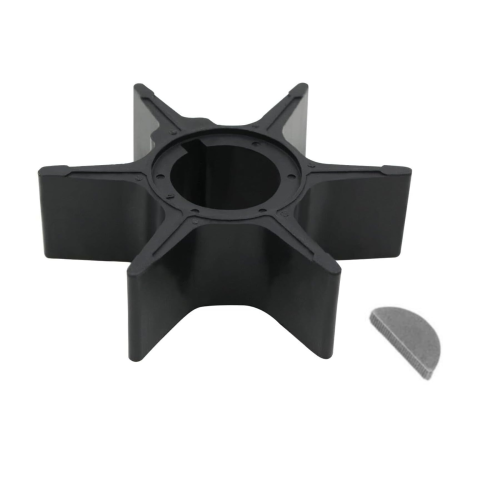

- 1 x Water Pump Impeller with Key (Replaces 17461-87E00/10/11/12)
Installation Notes
- Disconnect the engine's battery and shift the outboard into neutral.
- Place a drain pan under the lower unit and remove the gear oil drain screw to empty the oil.
- Remove the bolts securing the lower unit (gearcase) to the upper driveshaft housing.
- Carefully lower and remove the gearcase assembly to access the water pump.
- Unscrew the bolts for the water pump housing and lift it to expose the impeller.
- Note the rotational direction of the old impeller fins before removing it and the drive key.
- Clean the housing interior and install the new drive key and impeller, ensuring the fins face the correct direction.
- Reassemble the water pump housing, re-install the lower unit, and refill the gear oil with new, correct-grade oil.
- Reconnect the battery and test the engine on a water supply, confirming a strong tell-tale stream.
Troubleshooting & FAQ
How do I confirm this impeller fits my Suzuki engine?
Check the "Engine & Model Compatibility" table. Match your engine's model (e.g., DF90), horsepower, and year range. If it's listed, this kit is compatible. Also cross-reference your existing part number with the "Part Number Matrix."
What are the signs of a failing water pump impeller?
The most common signs are the engine overheating at idle or low speeds, or a weak or non-existent water stream from the "tell-tale" outlet port. Reduced engine performance can also be a symptom.
How often should I replace the impeller?
As a preventative maintenance item, it is recommended to replace the impeller every 1 to 2 years or every 100-200 hours of use, whichever comes first. This can vary based on operating conditions (e.g., saltwater vs. freshwater).
What's the difference between part numbers 17461-87E00, -87E10, -87E11, and -87E12?
These are OEM part numbers that have been superseded by Suzuki over time. This aftermarket kit is designed to replace all of them, offering the same fit and function as the latest version.
Is this an OEM part?
This listing is for a high-quality aftermarket replacement, not an original equipment manufacturer (OEM) component. It is engineered to meet or exceed OEM specifications using comparable materials and is manufactured in an ISO 9002 certified facility with strict quality control.
What are the shipping speed and cost?
We ship worldwide quickly, with a typical transit time of 5–15 days for most regions. Standard shipping is free. Expedited shipping options, if available for your location, will be presented at checkout.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal use conditions. If you encounter an issue, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is highly recommended for safety and optimal performance.
