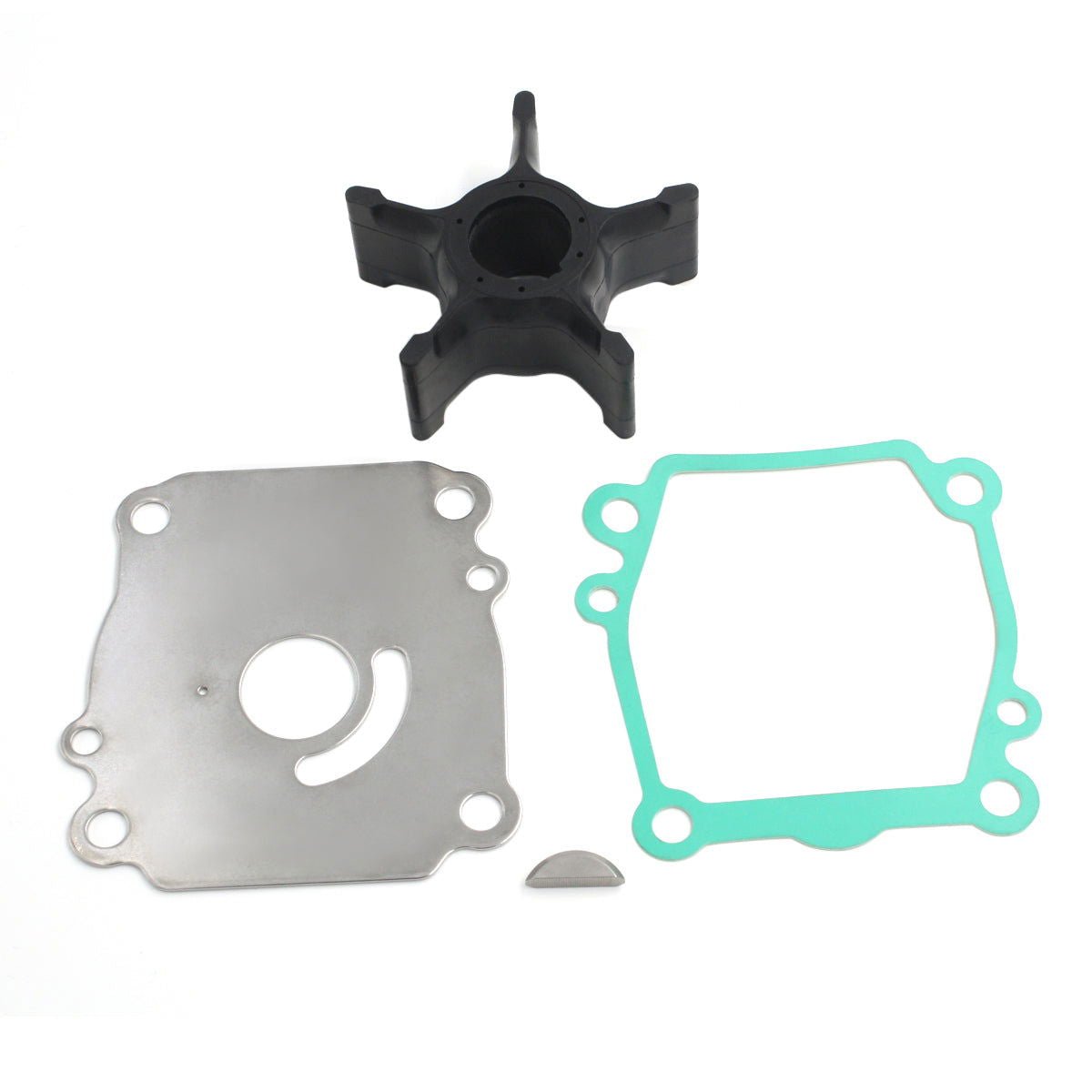

Water Pump Impeller Kit – Fits Suzuki 90-140HP Outboards (Replaces 17400-90J20, 18-3258, 17400-90J00)

$31.99

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Suzuki 90-140HP Outboards (Replaces 17400-90J20, 18-3258, 17400-90J00) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit provides a reliable solution for maintaining the cooling system of Suzuki DF90, DF115, and DF140 4-Stroke outboard motors manufactured between 1999–2006. It ensures your engine circulates water effectively, preventing critical overheating during operation.

The kit is a direct interchange for Suzuki part number 17400-90J20, Sierra 18-3258, and is also compatible with the superseded OEM part 17400-90J00.

Designed for direct-fit, hassle-free installation.
Includes all essential components: impeller, gasket, plate, and key.
Restores cooling system performance to original factory specifications.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Suzuki	17400-90J20
Sierra	18-3258
Suzuki	17400-90J00	Superseded by 17400-90J20

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is confirmed to fit the following Suzuki outboard models:

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DF90	90	4-Stroke	1999–2006	17400-90J20
Suzuki	DF115	115	4-Stroke	1999–2006	17400-90J20
Suzuki	DF140	140	4-Stroke	1999–2006	17400-90J20

Technical Specs

Product Type: Water Pump Impeller Kit
Installation: Direct replacement
Weight: 1 lbs (0.45 kg)

What’s in the Box

1 x Water Pump Impeller
1 x Impeller Gasket
1 x Impeller Plate
1 x Impeller Key

Installation Notes

Disconnect the battery leads and remove the engine cowl.
Place a drain pan under the lower unit and remove the gear lube drain screw to empty the oil.
Unbolt and carefully slide the lower unit off the driveshaft housing.
Remove the water pump housing bolts to access the impeller.
Take note of the old impeller's orientation before removing it, along with the plate, gasket, and key.
Install the new components from the kit, applying a light coat of marine grease to the new impeller.
Reinstall the water pump housing and torque its bolts to the manufacturer's specification.
Reassemble the lower unit, refill with fresh gear lube, and test the engine on a water supply to confirm proper cooling.

Troubleshooting & FAQ

How do I know if this kit fits my engine?

This kit is specifically for Suzuki DF90, DF115, and DF140 4-Stroke models from 1999 to 2006. Please verify your engine model and year against the compatibility table before ordering.

What are the signs of a failing water pump impeller?

Common signs of a worn or failed impeller include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alerts, and reduced engine performance.

How often should I replace the impeller?

For preventative maintenance, it is recommended to replace the impeller every 100-200 operating hours or every 1-2 years, whichever comes first. More frequent replacement may be necessary in saltwater or high-debris environments.

Is this difficult to install myself?

The installation is moderately difficult and requires disassembling the lower unit. While it can be a DIY project for those with mechanical experience, we recommend professional installation if you are unfamiliar with the process.

Is this an OEM part?

This listing is for an aftermarket replacement, not an OEM part. It has been manufactured in an ISO 9002 facility and is built to meet or exceed OEM specifications using comparable materials and undergoing batch inspections for quality control.

What are the shipping costs and speed?

We offer free standard shipping worldwide, with a typical transit time of 5–15 days. Expedited shipping options may be available at checkout depending on your location.

What is the warranty and return policy?

This product is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, please contact our support team with your order details. Returns are accepted for unused items in their original condition within our standard return window.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
