Water Pump Impeller Kit – Fits Suzuki DF40A/DF50A/DF60A 4-Stroke Outboard (Replaces 17400-88L00, 17400-88L01)

$31.30

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Suzuki DF40A/DF50A/DF60A 4-Stroke Outboard (Replaces 17400-88L00, 17400-88L01) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This is a complete Water Pump Impeller Kit – Fits Suzuki DF40A/DF50A/DF60A 4-Stroke Outboard (Replaces 17400-88L00, 17400-88L01), engineered for 40–60 HP Suzuki 4-Stroke outboard engines (models DF40A, DF50A, and DF60A) from 2010 and newer. It provides all necessary components to restore your engine's cooling system performance.

This kit serves as a direct replacement for Suzuki OEM part numbers 17400-88L00, 17400-88L01, 17400-88L01-000, 17400-88812, and 17400-88810.

Engineered for durability with a flexible impeller suitable for broad temperature ranges.
Installation is a direct replacement for original factory parts.
Includes a comprehensive set of gaskets, seals, and hardware for a full service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17400-88L00
Suzuki	17400-88L01
Suzuki	17400-88L01-000
Suzuki	17400-88812
Suzuki	17400-88810

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is designed for the following Suzuki 4-stroke outboard models:

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DF40A	40	4-Stroke	2010+	17400-88L00/17400-88L01
Suzuki	DF50A	50	4-Stroke	2010+	17400-88L00/17400-88L01
Suzuki	DF60A	60	4-Stroke	2010+	17400-88L00/17400-88L01

Technical Specs

Product Type: Water Pump Impeller Repair Kit
Installation: Direct OEM replacement
Technical Attributes: Designed for durability with improved flexibility across broad temperature ranges
Warranty: 1 Year (from some vendors)

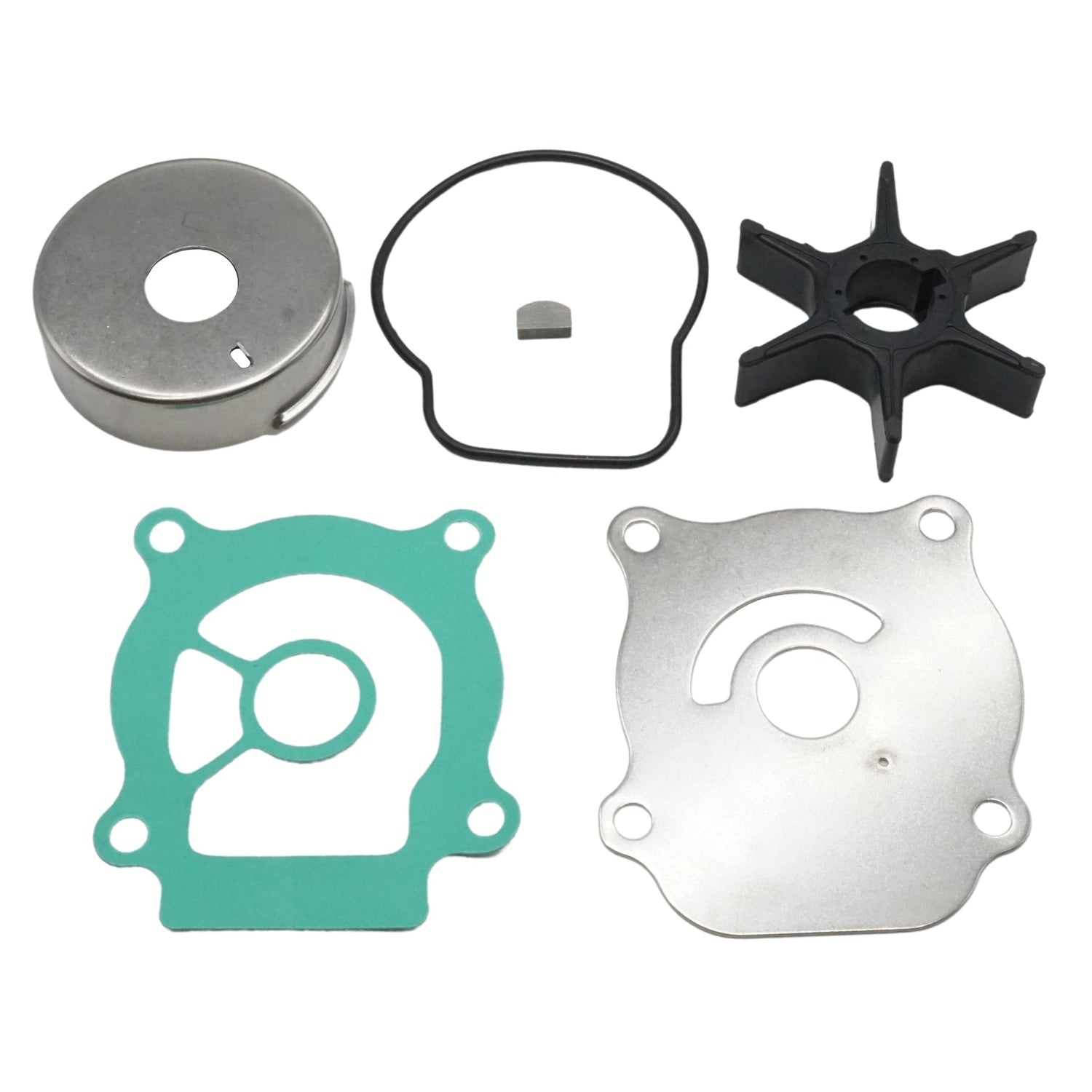

What’s in the Box

1 x Water Pump Repair Kit (17400-88L01)
2 x Gasket, 10X17X1.5 (09168-10022)
1 x Gasket, 12.5X20X2.5 (09168-12012)
1 x Pin (09204-03003)
2 x O-Ring, D:1.9, ID:21.8 (09280-22019)

Installation Notes

Disconnect the negative battery cable and shift the outboard into neutral.
Undo the lower unit mounting bolts and gently slide the lower unit (gearcase) off the driveshaft housing.
Locate and unbolt the water pump housing cover to expose the old impeller.
Observe the rotational direction of the old impeller's vanes before pulling it off the driveshaft. Remove the old woodruff key.
Thoroughly clean all debris and old gasket material from the housing and wear plate surfaces.
Install the new gaskets, wear plate, and woodruff key.
Align the new impeller with the key and slide it onto the driveshaft, turning the shaft clockwise to bed the vanes correctly inside the housing cup.
Reinstall the water pump housing and tighten the bolts to the torque specifications in your service manual.
Carefully guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube align correctly. Fasten the mounting bolts.
Reconnect the battery, supply cooling water to the engine, and run it briefly to check for a strong, steady stream from the tell-tale outlet.

Troubleshooting & FAQ

How can I tell if my water pump impeller is failing?

Common signs of a worn or damaged impeller include a weak or nonexistent water stream from the tell-tale (peephole) outlet, frequent engine overheating alarms, or visible cracks, stiffness, and missing vanes on the impeller itself upon inspection.

How often should I replace my outboard's water pump impeller?

For preventative maintenance, it is best practice to inspect the impeller annually and replace it every 1 to 2 years or every 100-200 hours of use. This interval may be shorter if you operate primarily in sandy, silty, or saltwater environments.

Will this kit fit a 2009 Suzuki DF60A?

No, this kit is specifically for Suzuki DF40A, DF50A, and DF60A models manufactured in 2010 or later. Using it on an incompatible model can lead to improper fit and cooling system failure. Always verify your engine's model and year.

What is the small metal pin for?

The included pin is the woodruff key (or drive key). It locks the impeller to the driveshaft, forcing it to spin with the shaft. It is a critical component; do not reuse the old one.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
