Product Details
This Water Pump Impeller Kit – Fits Suzuki DF70A/80A/90A Outboards (Replaces 17400-87L00) is designed for Suzuki Marine 70-90 HP, 4-Stroke outboard engines from 2009 and newer, specifically models DF70A, DF80A, and DF90A. It provides all the necessary components for a complete water pump service to maintain optimal engine cooling.
This kit is a direct interchange for Suzuki OEM part numbers 17400-87L00, 17400-87L01, 17400-87L02, 17400-87L03, and 17400-87L04, as well as aftermarket references like Sierra 18-4544 and Soxa Marine 21KS005.
- Installs in the lower unit/gearcase.
- Direct OEM replacement for a precise fit and function.
- Includes all essential seals, gaskets, and hardware for a full service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17400-87L00 | Original part number. |
| Suzuki | 17400-87L01 | Supersedes 17400-87L00. |
| Suzuki | 17400-87L02 | Supersedes 17400-87L01. |
| Suzuki | 17400-87L03 | Supersedes 17400-87L02. |
| Suzuki | 17400-87L04 | Current supersession. |
| Sierra | 18-4544 | Aftermarket cross-reference. |
| Soxa Marine | 21KS005 | Aftermarket cross-reference. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is specifically designed for the Suzuki DF-A series 4-stroke outboards listed.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF70A | 70 | 4-Stroke | 2009+ | 17400-87L00/87L01/87L02/87L03/87L04 | All variations are supersessions |
| Suzuki | DF80A | 80 | 4-Stroke | 2009+ | 17400-87L00/87L01/87L02/87L03/87L04 | All variations are supersessions |
| Suzuki | DF90A | 90 | 4-Stroke | 2009+ | 17400-87L00/87L01/87L02/87L03/87L04 | All variations are supersessions |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Lower Unit / Gearcase
- Connection
- Direct Fit
- Weight
- ≈0.45 kg (1 lb)
- Fitting Type
- Direct OEM Replacement
- Other Technical Attributes
- Produced in ISO9002 certified factory (JLM Marine version)

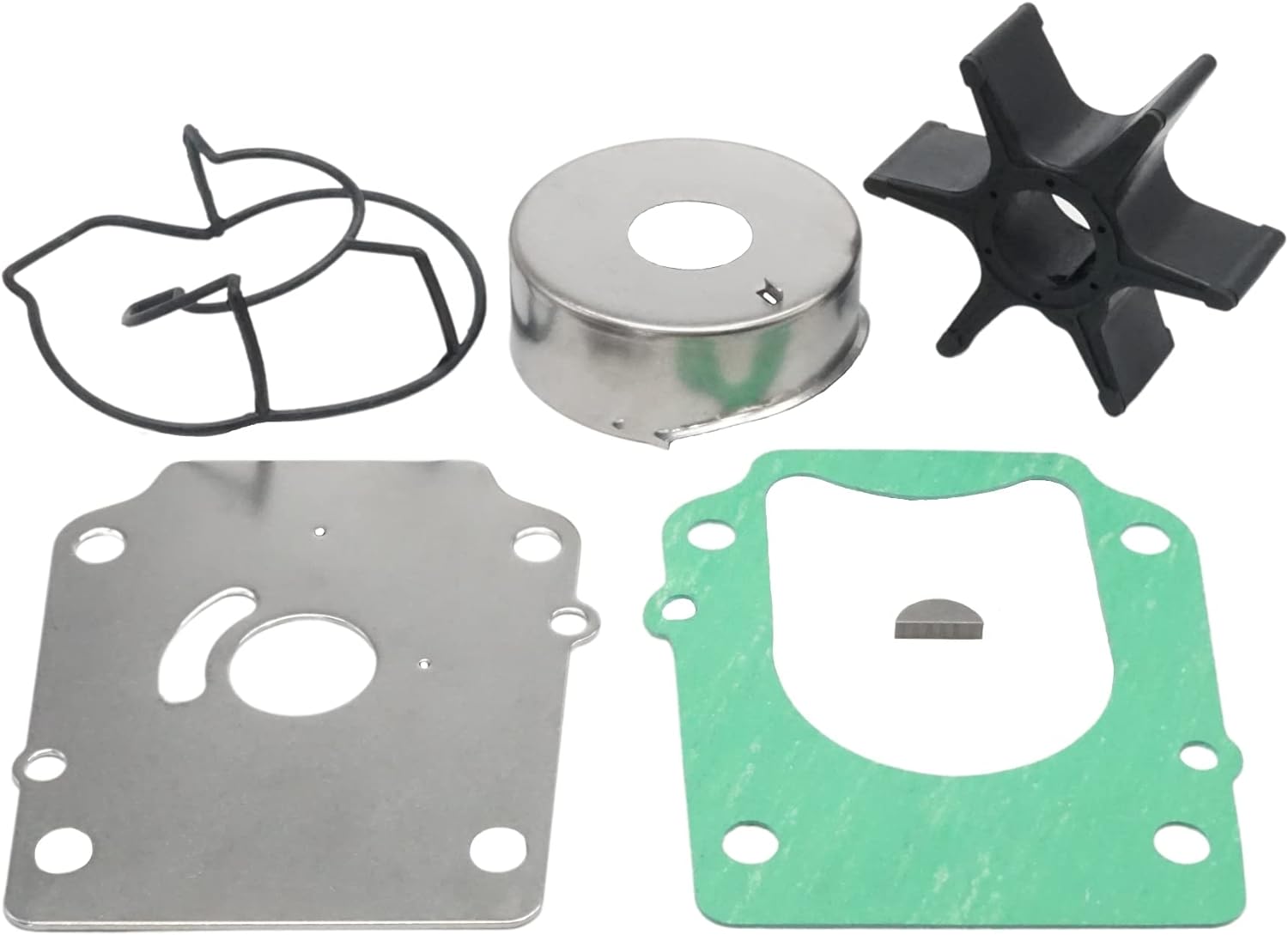

What’s in the Box
- 1 x Water Pump Impeller (17461-87E12)
- 1 x Pump Wear Plate (17471-87L00)
- 1 x Impeller Shaft Key (09420-04009)
- 1 x Housing Case Panel Gasket (17472-87L00)
- 1 x Water Pump Case Sealing (17416-99E10)
Installation Notes
- Disconnect the battery and spark plug leads for safety.
- Shift the outboard into neutral.
- Remove the lower unit (gearcase) by unbolting it from the engine assembly.
- Locate and unbolt the water pump housing.
- Carefully note the orientation of old parts before removing the old impeller, wear plate, and gasket.
- Clean all housing surfaces thoroughly, removing any old gasket material or debris.
- Install the new wear plate, gasket, impeller, and key from the kit. Lubricate the new impeller and inside of the housing lightly with grease.
- Reassemble the pump housing, ensuring the impeller vanes are correctly oriented (turn the driveshaft clockwise during installation). Torque bolts to factory specs.
- Reinstall the lower unit, making sure the driveshaft, shift shaft, and water tube align correctly.
- Once reassembled, start the engine in water and verify a strong, steady stream from the cooling system tell-tale outlet.
Troubleshooting & FAQ
How do I know if this kit fits my Suzuki outboard?
This kit is specifically for Suzuki DF70A, DF80A, and DF90A models manufactured from 2009 to the present. Please verify your exact model and year before ordering. It is not suitable for other models.
What are signs of a failing water pump impeller?
Common signs include a weak, intermittent, or completely stopped water stream from the "telltale" outlet, engine overheating alarms on the console, or a visible reduction in performance. Upon inspection, a worn impeller may be cracked, brittle, or have missing vanes.
How often should I replace my water pump impeller?
For preventative maintenance, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of use, whichever comes first. This interval may be shorter in saltwater or silty/sandy water conditions.
Is this kit difficult to install?
Installation requires basic mechanical skills and tools to drop the lower unit. While it can be a DIY job for those familiar with outboard maintenance, we recommend professional installation if you are not fully comfortable with the process.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
