Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke 150-200 HP (Replaces 17400-96J00, 17400-96J02, 17400-96J04)
Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke 150-200 HP (Replaces 17400-96J00, 17400-96J02, 17400-96J04) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke 150-200 HP (...
Product Details
This comprehensive Water Pump Impeller Service Kit fits Suzuki 4-Stroke 150-200 HP outboard engines, including DF150, DF150AP, DF175, DF175AP, DF200A, and DF200AP models from 2006 to current. It contains all necessary components to restore your engine's cooling system for optimal performance and reliability.
It serves as a direct replacement for Suzuki OEM part numbers 17400-96J00, 17400-96J01, 17400-96J02, 17400-96J03, and 17400-96J04.
- Engineered as a direct OEM-equivalent replacement for a perfect fit.
- Features marine-grade components resistant to saltwater corrosion and wear.
- Includes all essential gaskets, seals, and hardware for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17400-96J00 | Superseded |
| Suzuki | 17400-96J01 | Superseded |
| Suzuki | 17400-96J02 | Superseded |
| Suzuki | 17400-96J03 | Superseded |
| Suzuki | 17400-96J04 | Current Version |
Engine & Model Compatibility
Confirm your engine model and year in the table below.
For Suzuki models, this kit covers a wide range of DF series 4-stroke outboards from 150 to 200 HP manufactured since 2006.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF150 | 150 | 4-Stroke | 2006–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
| Suzuki | DF150AP | 150 | 4-Stroke | 2017–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
| Suzuki | DF175 | 175 | 4-Stroke | 2006–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
| Suzuki | DF175AP | 175 | 4-Stroke | 2017–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
| Suzuki | DF200A | 200 | 4-Stroke | 2015–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
| Suzuki | DF200AP | 200 | 4-Stroke | 2015–Current | 17400-96J00/17400-96J04 | Multiple supersessions |
Technical Specs
- Product Type
- Water Pump Impeller Service Kit
- Installation
- Direct OEM replacement
- Fitting Type
- Direct fit
- Other Technical Attributes
- Marine-grade components resistant to saltwater corrosion

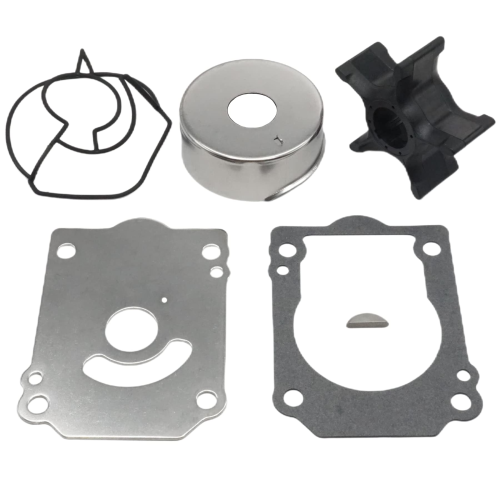

What’s in the Box
- 1 x Water Pump Impeller (17461-90J01)
- 1 x Impeller Shaft Key (09420-05009)
- 1 x Pump Wear Plate Case (17471-93J02)
- 1 x Housing Gasket (17472-93J00)
- 1 x Water Pump Case Sealing (17416-96J00)
- 1 x Water Pump Housing Case Sleeve Cup (17413-96J01)
Installation Notes
- Disconnect the battery and shift the outboard into neutral.
- Remove the lower unit (gearcase) from the outboard's midsection by unbolting it.
- Locate and unbolt the water pump housing cover to access the old impeller.
- Remove the old impeller, wear plate, gaskets, and seals. Clean all mating surfaces thoroughly.
- Install the new wear plate, gaskets, and impeller shaft key provided in the kit.
- Slide the new impeller onto the driveshaft, rotating it in the correct direction to seat the vanes.
- Install the new housing, cup, and seals, ensuring a proper fit.
- Torque the housing bolts to the manufacturer's specified values.
- Reinstall the lower unit, ensuring the driveshaft and shift rod align correctly.
- Reconnect the battery and test the engine with a water supply to verify proper cooling system function.
Troubleshooting & FAQ
How do I know if this kit fits my Suzuki engine?
This kit is designed for Suzuki 4-Stroke models DF150, DF175, and DF200 (including A and AP variants) from 2006 to current. Always cross-reference your engine model and year with the "Engine & Model Compatibility" table above. Verifying the OEM part number is the most reliable way to ensure a match.
What are the signs of a failing water pump impeller?
Common symptoms include a weak or non-existent stream of water from the "telltale" outlet, engine overheating alerts, and reduced engine performance. A visual inspection may reveal cracked, brittle, or missing impeller vanes.
How often should the water pump impeller be replaced?
As a general maintenance rule, it is recommended to inspect the impeller annually and replace it every 2-3 years or every 200-300 hours of operation, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent replacement.
What is the difference between Suzuki part numbers 17400-96J00, 17400-96J02, etc.?
These numbers represent a supersession chain. Suzuki periodically updates parts for improvements in materials or design. 17400-96J04 is the latest version, and this kit is designed to replace all previous part numbers in that sequence (17400-96J00 through 17400-96J04), ensuring you get a current-spec repair.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
