Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke DF8A/DF9.9A/DF9.9B/DF15A/DF20A (Replaces Suzuki 17400-99J01, 17400-99J02)

$23.75

Shipping calculated at checkout.

Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke DF8A/DF9.9A/DF9.9B/DF15A/DF20A (Replaces Suzuki 17400-99J01, 17400-99J02) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Service Kit – Fits Suzuki 4-Stroke DF8A/DF9.9A/DF9.9B/DF15A/DF20A (Replaces 17400-99J01, 17400-99J02) provides all necessary components to restore your outboard's cooling system. It is designed for Suzuki 4-Stroke engines from 8 to 20 HP (models DF8A, DF9.9A, DF9.9B, DF15A, DF20A) manufactured from 2010 to the present.

This kit serves as a direct replacement for Suzuki OEM part numbers 17400-99J01 and 17400-99J02, as well as aftermarket references like UANOFCN 17400-99J01 and MARKGOO 17400-99J20.

Engineered for direct-fit installation, matching OEM specifications.
Constructed with a durable Stainless Steel 316 housing plate and a neoprene rubber impeller for longevity and higher flow rates.
Includes all essential gaskets, key, and plates for a complete overhaul.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17400-99J01
Suzuki	17400-99J02
UANOFCN	17400-99J01
MARKGOO	17400-99J20

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is specifically designed for the following Suzuki outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF8A	8	4-Stroke	2010–Present	17400-99J01/17400-99J02	All model years
Suzuki	DF9.9A	9.9	4-Stroke	2012–Present	17400-99J01/17400-99J02	All model years
Suzuki	DF9.9B	9.9	4-Stroke	2012–Present	17400-99J01/17400-99J02	All model years
Suzuki	DF15A	15	4-Stroke	2013–Present	17400-99J01/17400-99J02	All model years
Suzuki	DF20A	20	4-Stroke	2013–Present	17400-99J01/17400-99J02	All model years

Technical Specs

Product Type: Water Pump Impeller Service Kit
Installation: Direct replacement
Materials: Stainless Steel 316 Plate, Neoprene Rubber Impeller
Weight: 85g (3 ounces)
Other Attributes: Designed for durability with higher flow rates

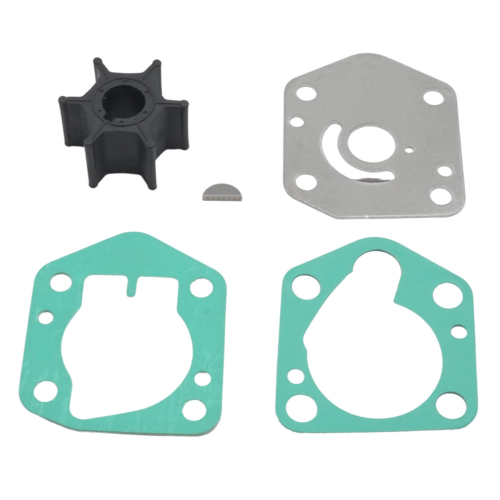

What’s in the Box

1 x Water Pump Impeller (17461-939M0)
1 x Pump Wear Plate (17471-99J00)
1 x Impeller Shaft Key (09420-03009)
1 x Housing Gasket (17472-99J00)
1 x Impeller Gasket (17473-94J00)

Installation Notes

Disconnect the battery and secure the engine to prevent accidental starting.
Place a drain pan under the lower unit and drain the gearcase oil.
Remove the bolts securing the lower unit (gearcase) and carefully slide it off the driveshaft housing.
Unbolt and remove the water pump housing cover to access the impeller.
Take note of the old impeller's vane direction before removing it, along with the old gaskets, plate, and key.
Clean all mating surfaces of any old gasket material or debris.
Install the new wear plate (17471-99J00) and gasket (17472-99J00).
Insert the new impeller shaft key (09420-03009) into the driveshaft.
Slide the new impeller (17461-939M0) onto the shaft, rotating it clockwise to bend the vanes correctly as you fit it into the housing.
Reinstall the housing cover with the new gasket (17473-94J00) and tighten bolts to the manufacturer’s torque specs.
Carefully reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube engage properly.
Refill the gearcase with marine-grade gear oil. Start the engine in water and confirm a strong, steady stream from the cooling system's tell-tale port.

Troubleshooting & FAQ

How do I confirm this kit fits my engine?

Verify your outboard's model (e.g., DF15A) and year against the "Engine & Model Compatibility" table. This kit is a direct cross-reference for Suzuki OEM parts 17400-99J01 and 17400-99J02.

What are the signs of a failing water pump impeller?

Common symptoms include an overheating engine alarm, a weak or intermittent water stream from the tell-tale port, or steam from the exhaust. Upon inspection, a worn impeller may have cracked, brittle, or sheared-off vanes.

How often should I replace my water pump impeller?

For preventative maintenance, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of operation. Service intervals should be shorter in saltwater or silty conditions.

Is there a correct orientation for the impeller vanes?

Yes. When installing the impeller into the housing, the vanes must be bent in the direction of the driveshaft's normal clockwise rotation to ensure proper pump operation and water flow.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
