Water Pump Repair Kit – Fits Suzuki DF60/70 & DT90/100 (Replaces 17400-87E03, 17400-87E04)

$19.45

Shipping calculated at checkout.

Water Pump Repair Kit – Fits Suzuki DF60/70 & DT90/100 (Replaces 17400-87E03, 17400-87E04) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Repair Kit provides all the necessary components to service the lower unit water pump on Suzuki DF60, DF70, DT90, and DT100 (60–100 HP) 2-stroke and 4-stroke outboard engines from 1998–2007.

It serves as a direct replacement for Suzuki part numbers 17400-87E03 and 17400-87E04, as well as Sierra Marine 18-3254 and Mallory Marine 9-45219.

Designed for direct replacement installation.
Includes OEM-quality components for reliable performance.
Kit does not include the water pump housing.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17400-87E03
Suzuki	17400-87E04
Sierra Marine	18-3254
Mallory Marine	9-45219

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is designed for the following Suzuki outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DF60	60	4-Stroke	1998–2007	17400-87E03, 17400-87E04
Suzuki	DF70	70	4-Stroke	1998–2007	17400-87E03, 17400-87E04
Suzuki	DT90	90	2-Stroke	1998–2007	17400-87E03, 17400-87E04
Suzuki	DT100	100	2-Stroke	1998–2007	17400-87E03, 17400-87E04

Technical Specs

Product Type: Water Pump Repair Kit (without housing)
Installation: Direct replacement
Fuel Type: Gasoline
Dimensions: 12 × 9 × 1 in (305 × 229 × 25 mm)
Weight: 1 lb (0.45 kg)
Other Technical Attributes: OEM quality replacement parts

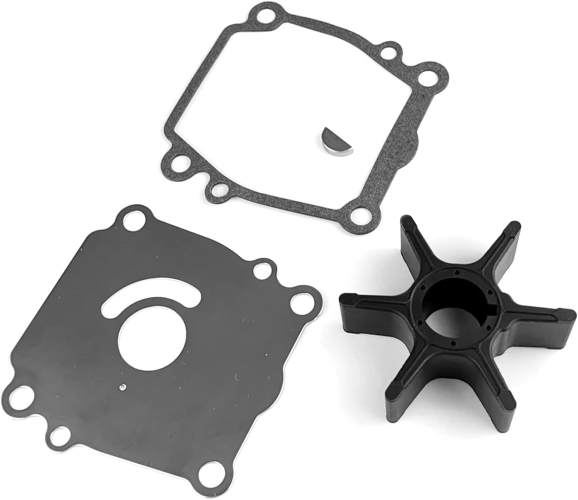

What’s in the Box

Impeller
Gaskets
Wear Plate
Hardware and seals required for installation

Installation Notes

Always disconnect the battery negative terminal before starting work.
Drain the lower unit gearcase oil completely.
Remove the mounting bolts securing the lower unit (gearcase) and carefully detach it from the engine's midsection.
Unbolt and remove the existing water pump housing. Take note of all component positions.
Remove the old impeller, gaskets, wear plate, and any seals from the driveshaft and housing.
Thoroughly clean all mating surfaces and inspect the housing for cracks or warping. Replace if damaged.
Install the new wear plate and gaskets provided in the kit.
Slide the new impeller onto the driveshaft. Turn the shaft clockwise while pushing down to seat the vanes correctly.
Reinstall the water pump housing and tighten its bolts to the manufacturer's specified torque.
Reattach the lower unit to the midsection, ensuring the driveshaft and water tube align correctly.
Refill the gearcase with fresh marine gear lube.
Reconnect the battery. Test the engine in water, confirming a steady stream of water from the tell-tale port.

Troubleshooting & FAQ

How do I know if this kit fits my Suzuki engine?

This kit is specifically for Suzuki 60–100 HP outboard engines made between 1998 and 2007, including models DF60, DF70, DT90, and DT100. Please verify your exact model and year against the compatibility table on this page.

What are the signs of a failing water pump?

Common symptoms include a weak or intermittent water stream from the "tell-tale" outlet, engine overheating alarms, or a noticeable decrease in engine performance. A worn impeller is the most frequent cause.

How often should the water pump impeller be replaced?

As a general maintenance guideline, it is recommended to inspect and likely replace your water pump impeller every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).

Is the water pump housing included in this kit?

No, this is a repair kit that includes the impeller, gaskets, wear plate, and seals. It does not include the metal or plastic pump housing. You should inspect your existing housing for wear, cracks, or warping and replace it if necessary.

Can I reuse my old gaskets or wear plate?

It is strongly recommended to use all new components provided in the kit. Old gaskets can become brittle and fail to seal properly, and a worn plate will reduce the new impeller's efficiency and lifespan.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
