Product Details

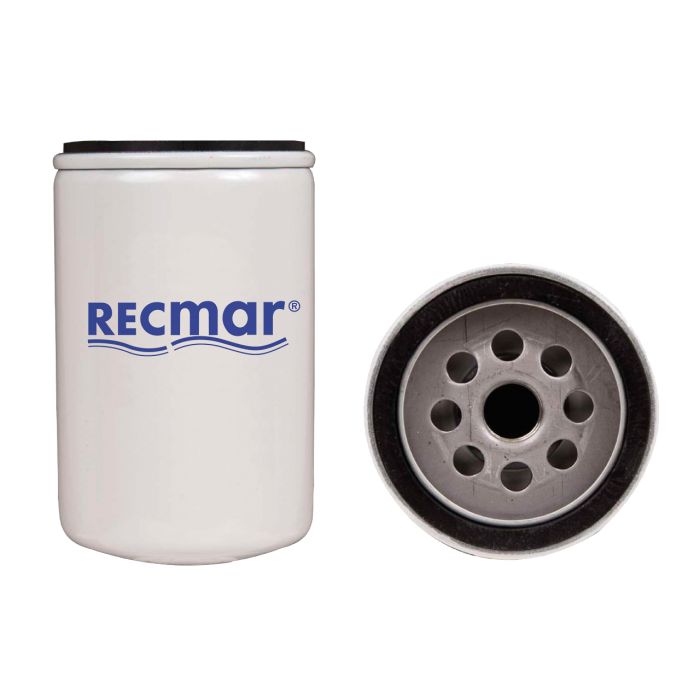

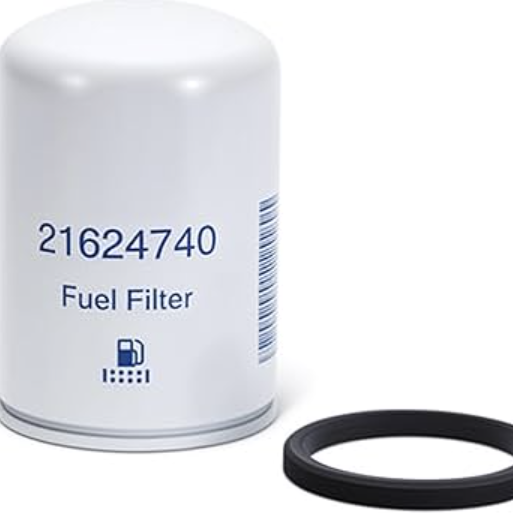

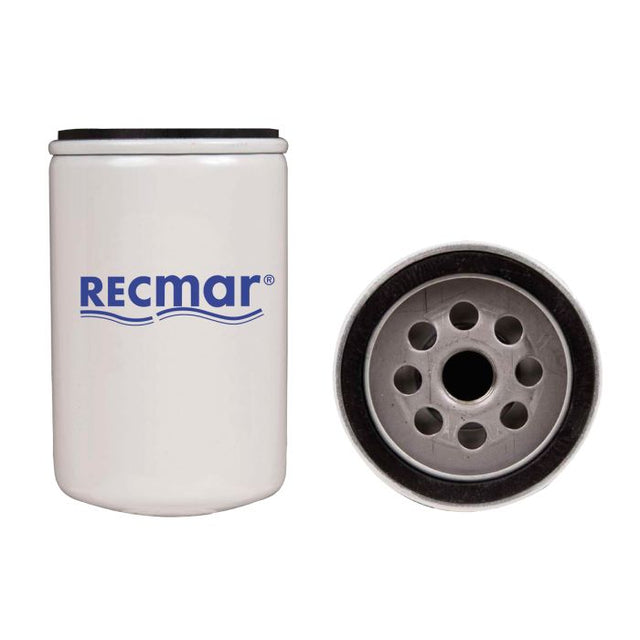

This aftermarket Volvo Penta Fuel Filter is a direct replacement for diesel fuel filters used in a wide range of Volvo Penta marine engines, including popular models like the AD41, TAMD41, KAD42, KAD44, and KAMD300 series from the 1970s through the 2010s. It is engineered to meet OEM specifications for filtration and performance, ensuring your engine is protected from contaminants.
This part replaces multiple Volvo Penta part numbers, including 3840335, 21624740, 243464, 3588378, 838593, 860008, and 860874, offering a reliable equivalent for your maintenance needs.
- Installation Type: Inline/Canister
- Filtration Level: 10 microns
- Package includes one fuel filter
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Volvo Penta | 3840335 | Superseded by 21624740. Note: Later versions may not include a drain. |
| Volvo Penta | 21624740 | Current primary replacement number. |
| Volvo Penta | 243464 | Interchangeable part number. |
| Volvo Penta | 3588378 | Interchangeable part number. |
| Volvo Penta | 838593 | Interchangeable part number. |
| Volvo Penta | 860008 | Interchangeable part number. |
| Volvo Penta | 860874 | Interchangeable part number. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Stroke | OEM Part No. |
|---|---|---|---|
| Volvo Penta | MD6A, MD6B | 4-Stroke | 3840335/21624740 |
| Volvo Penta | MD7A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | MD22A, MD22L-A, MD22L-B, MD22P-B | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TAMD22P-B | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TMD22A, TMD22B | 4-Stroke | 3840335/21624740 |
| Volvo Penta | AD40B, AQAD40A, AQAD40B, AQD40A, MD40A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TAMD40A, TAMD40B | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TMD40A, TMD40B, TMD40C | 4-Stroke | 3840335/21624740 |
| Volvo Penta | AD41A, AD41B, AD41D, AD41L-A, AD41P-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | AQAD41A, D41A, D41B, D41D, D41L-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TAMD41A, TAMD41B, TAMD41D, TAMD41L-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TAMD41M-A, TAMD41P-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TMD41A, TMD41B, TMD41D, TMD41L-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAD42A, KAD42B, KAD42P-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAMD42A, KAMD42B, KAMD42P-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TAMD42B, TAMD42WJ-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAD43P-A, KAMD43P-A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAD44P-A, KAD44P-B, KAD44PC | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAMD44P-A, KAMD44P-B, KAMD44P-C | 4-Stroke | 3840335/21624740 |
| Volvo Penta | KAD300A, KAMD300A | 4-Stroke | 3840335/21624740 |
| Volvo Penta | TD30, TD40 | 4-Stroke | 3840335/21624740 |
Technical Specs
- Product Type
- Diesel Fuel Filter
- Installation
- Inline/Canister
- Filtration Rating
- 10 microns
- Fuel Type
- Diesel
- Connection
- Thread mount
- Housing Material
- Plastic/Metal
- Dimensions (Product)
- Height: 9.0 in; Width: 9.0 in; Length: 13.0 in
- Dimensions (Box)
- Height: 9.0 in; Width: 9.0 in; Length: 13.0 in
- Weight
- 0.5 kg (1.1 lb)
- Operating Temperature
- -40°C to +100°C (-40°F to +212°F)
- Flow Rate
- Up to 95 l/h
What’s in the Box
- 1 x Fuel Filter (Replaces 3840335 / 21624740)
Installation Notes
- Shut off the fuel supply valve and place a drip pan under the old filter.
- Carefully loosen the fittings or clamps securing the filter housing.
- Remove the old filter. Be prepared for some residual fuel spillage.
- Lightly lubricate the gasket of the new filter with clean diesel fuel.
- Install the new filter, ensuring the flow direction arrow (if present) points toward the engine.
- Hand-tighten the filter until the gasket makes contact, then tighten an additional half to three-quarters of a turn. Do not overtighten.
- Reconnect fuel lines and tighten any clamps securely.
- Open the fuel supply valve and prime the fuel system according to your engine manufacturer's procedure.
- Start the engine and carefully inspect the filter and all connections for leaks.
Troubleshooting & FAQ
How can I confirm this filter fits my engine?
Check your existing filter for a part number and compare it to the list in our Part Number Matrix. Additionally, find your engine model in the compatibility table above. If both your part number and engine model are listed, it will fit.
Is this filter different from the original Volvo Penta part?
This is a direct aftermarket replacement built to meet or exceed OEM specifications. One notable difference is that some very early versions of the original part (3840335) had a drain, whereas the current replacement (21624740) and this aftermarket version do not.
What is the recommended replacement interval for this fuel filter?
For most Volvo Penta diesel engines, the recommended interval is every 200 hours of operation or annually, whichever comes first. Refer to your engine's service manual for the specific maintenance schedule.
What are the signs of a clogged or failing fuel filter?
Common symptoms include a loss of engine power, difficulty starting, rough idling, or engine stumbling under load. If you notice any of these issues, inspect and replace your fuel filter as a first step.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
