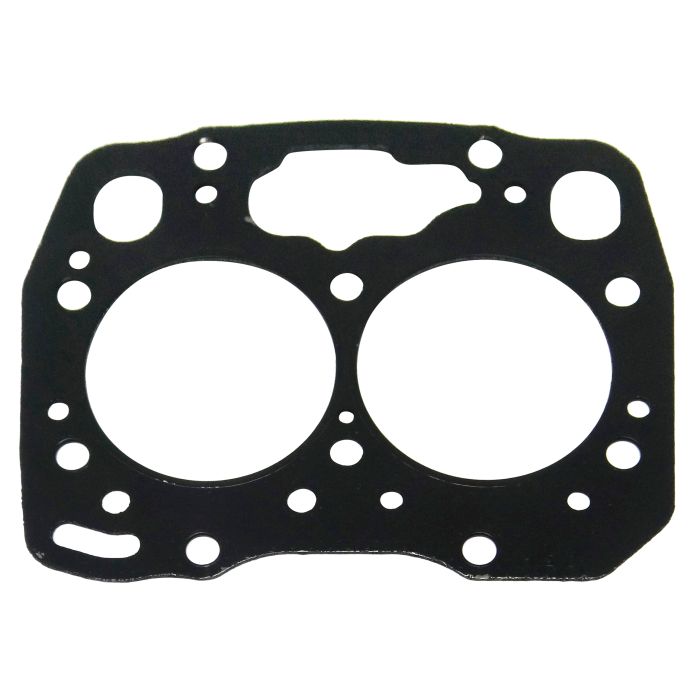

Cylinder Head Gasket – Fits Volvo Penta D1-13 Series Engines (Replaces 3809647)

$0.00

Shipping calculated at checkout.

Cylinder Head Gasket – Fits Volvo Penta D1-13 Series Engines (Replaces 3809647) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This is a direct replacement Cylinder Head Gasket designed specifically for Volvo Penta D1-13, D1-13B, and D1-13F 2-cylinder diesel engines. It ensures a precise seal between the cylinder head and the engine block, critical for maintaining engine compression and preventing leaks.

It serves as a direct interchange for Volvo Penta part numbers 3809647 and 3808602.

Engineered for marine diesel applications.
Installation Method: Direct replacement.
Thickness: 1.3 mm, matching OEM specifications.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Volvo Penta	3809647
Volvo Penta	3808602

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This part is confirmed to fit the following Volvo Penta engine models.

Brand	Model	Rated HP	Stroke	OEM Part No.
Volvo Penta	D1-13	13	Diesel	3809647
Volvo Penta	D1-13B	13	Diesel	3809647
Volvo Penta	D1-13F	13	Diesel	3809647

Technical Specs

Product Type: Cylinder Head Gasket
Installation: Direct replacement
Thickness: 1.3 mm
Fuel Type: Diesel
Dimensions: 18.0" L x 14.0" W x 0.1" H
Fitting Type: Direct fit
Other Technical Attributes: Designed for marine applications

What’s in the Box

1 x Cylinder Head Gasket (3809647)

Installation Notes

Disconnect the battery and allow the engine to cool completely. Drain the engine coolant.
Remove any components obstructing access to the cylinder head, such as the intake and exhaust manifolds.
Carefully unbolt and remove the cylinder head, followed by the old gasket.
Thoroughly clean and inspect the mating surfaces of both the engine block and the cylinder head. Ensure they are free of debris and old gasket material.
Position the new cylinder head gasket, paying close attention to its correct orientation.
Reinstall the cylinder head. Tighten the head bolts in the sequence and to the torque values specified by the manufacturer.
Reassemble all previously removed components, refill the cooling system, and reconnect the battery.
Start the engine and check for any coolant, oil, or compression leaks.

Troubleshooting & FAQ

How do I confirm this gasket fits my engine?

This gasket is specifically made for Volvo Penta D1-13, D1-13B, and D1-13F engine models. The best way to ensure fitment is to check the part number (3809647 or 3808602) from your engine's service manual and compare it to this listing.

What are the common signs of a failing cylinder head gasket?

Symptoms of a blown head gasket include engine overheating, white smoke from the exhaust (burning coolant), milky or frothy engine oil, unexplained coolant loss, and poor engine performance or loss of compression.

Why are two part numbers (3809647 and 3808602) listed?

Manufacturers often update part numbers over time. In this case, 3809647 is a newer number that supersedes the older 3808602. Both refer to the same component with identical specifications for the listed engines.

Is this gasket made from the same material as the original?

This aftermarket gasket is manufactured to meet or exceed OEM specifications, using comparable, high-quality materials suitable for the high-pressure, high-temperature environment of a marine diesel engine.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
