Product Details

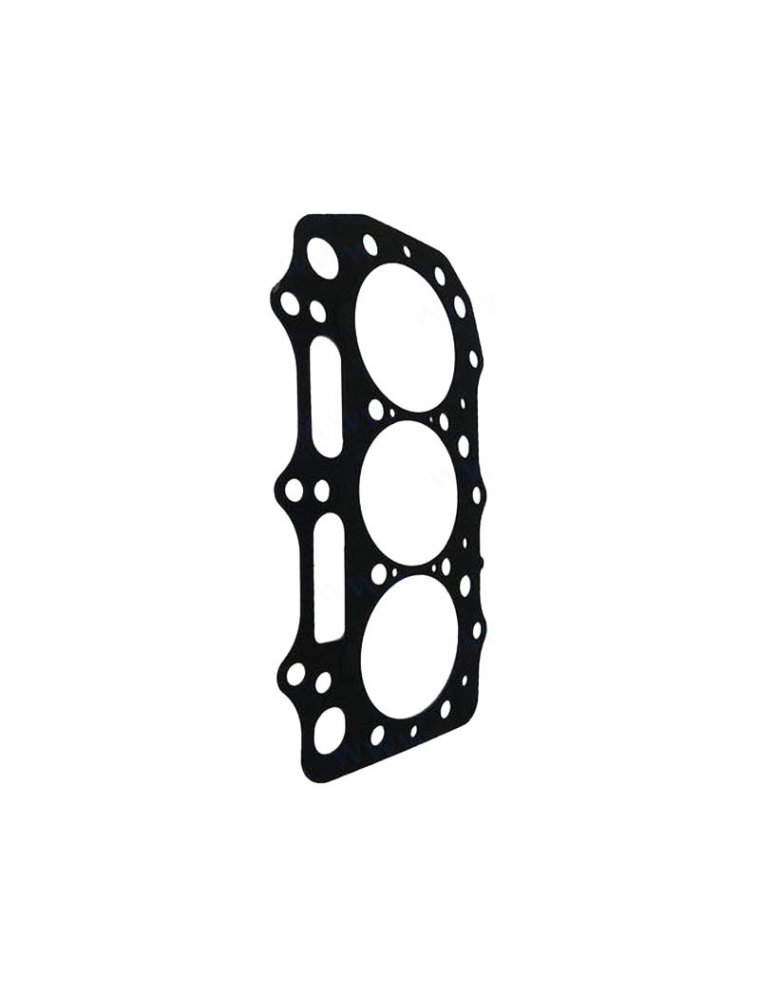

This replacement Cylinder Head Gasket is engineered for Volvo Penta D1-30 series 3-cylinder, 4-stroke diesel engines, covering models from 2004 to the present. It creates a critical seal between the engine block and the cylinder head, preventing combustion gas leaks and ensuring coolant and oil circulate properly.
It serves as a direct replacement for Volvo Penta part number 3812199.
- Installation: Fits between the engine block and cylinder head.
- Engine Fuel Type: Designed exclusively for diesel applications.
- Specific Models: Also specified for D1-30F model engines.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3812199 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Volvo Penta | D1-30A | 20.9 | 4-Stroke | 2004–Present | 3812199 | Diesel engine |
| Volvo Penta | D1-30B | 20.9 | 4-Stroke | 2004–Present | 3812199 | Diesel engine |
| Volvo Penta | D1-30F | 20.9 | 4-Stroke | 2004–Present | 3812199 | Diesel engine |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Engine Block to Cylinder Head
- Fuel Type
- Diesel
- Dimensions
- Height: 0.1 in; Width: 15.0 in; Length: 29.0 in
- Thickness
- 1.2 mm
- Weight
- 0.12 lbs (0.054 kg)
- Other Technical Attributes
- For D1-30F model engines
What’s in the Box
- 1 x Gasket (3812199)
Installation Notes
- Disconnect the vessel's battery and completely drain the engine's cooling system.
- Remove the valve cover, exhaust manifold, and any other components obstructing access to the cylinder head.
- Following the manufacturer's specified pattern, loosen and remove the cylinder head bolts in reverse order of the tightening sequence.
- Carefully lift the cylinder head from the engine block. Avoid using pry bars that could damage the mating surfaces.
- Remove the old head gasket. Thoroughly clean all residue from both the engine block deck and the cylinder head surface.
- Position the new gasket over the dowel pins on the engine block, ensuring it is oriented correctly. Do not use sealant unless specified by the manufacturer.
- Carefully lower the cylinder head back onto the block and gasket.
- Install new or verified head bolts. Tighten them in the specified sequence and torque stages according to the Volvo Penta service manual.
- Reinstall all previously removed components.
- Refill the cooling system, reconnect the battery, and start the engine. Check for any coolant, oil, or compression leaks.
Troubleshooting & FAQ
How do I know if my head gasket is failing?
Common signs of a blown head gasket include engine overheating, white smoke from the exhaust (indicating burnt coolant), milky or foamy engine oil, unexplained coolant loss, and poor engine performance or loss of compression.
Is this gasket definitely compatible with the D1-30F engine?
Yes, this gasket is specified as a direct fit for the Volvo Penta D1-30F, as well as the D1-30A and D1-30B models.
Do I need to apply a sealant when installing this gasket?
No. This gasket is designed to be installed dry. Applying sealants can interfere with its ability to seal correctly and may lead to premature failure. Always clean both mating surfaces thoroughly before installation.
What is the correct torque specification for the head bolts?
Torque specifications and the tightening sequence are critical for a lasting repair. These details are specific to your engine and must be sourced from the official Volvo Penta D1-30 series service manual. Failure to follow the correct procedure can result in engine damage.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
