Cylinder Head Gasket – Fits Volvo Penta MD22 Series Marine Engines ...
Product Details

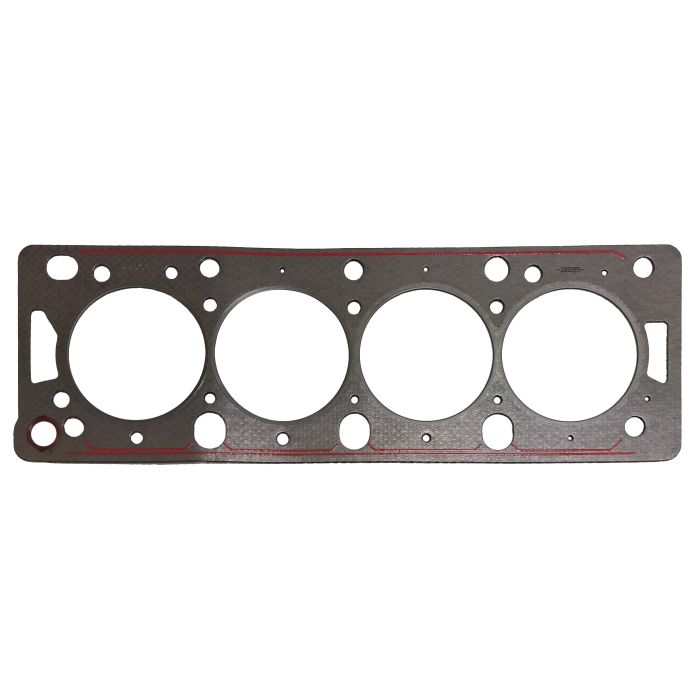

This high-quality Cylinder Head Gasket is designed for Volvo Penta MD22 series diesel marine engines manufactured between 1990–2005, including models MD22A, MD22L-A, MD22L-B, MD22P-B, TAMD22P-B, TMD22A, TMD22B, and TMD22P-C. It also fits Perkins Prima 4.20, M50, M65, and M80T diesel engines, ensuring a perfect seal between the engine block and cylinder head.
This part is a direct replacement for multiple aftermarket parts, including Orbitrade 13647 and Sierra 18-3867.
- Function: Creates a tight seal to maintain maximum compression and prevent oil or coolant from leaking into the cylinders.
- Installation: Installs between the engine block and the cylinder head assembly.
- Material: Constructed from a durable composite and metal blend to withstand high pressures and temperatures.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 859647 |
| Orbitrade | 13647 |
| Sierra | 18-3867 |
Engine & Model Compatibility
Confirm your engine model and year in the tables below to ensure proper fitment.
This gasket is compatible with the following Volvo Penta MD22, TAMD22, and TMD22 series engines.
| Brand | Model | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|
| Volvo Penta | MD22A | 4-Stroke | 859647 | |
| Volvo Penta | MD22L-A | 4-Stroke | 859647 | |
| Volvo Penta | MD22L-B | 4-Stroke | 859647 | |
| Volvo Penta | MD22P-B | 4-Stroke | 859647 | |
| Volvo Penta | TAMD22P-B | 4-Stroke | 859647 | Turbocharged |
| Volvo Penta | TMD22A | 4-Stroke | 859647 | |
| Volvo Penta | TMD22B | 4-Stroke | 859647 | |
| Volvo Penta | TMD22P-C | 4-Stroke | 859647 | |
| Volvo Penta | MS2B-A | 4-Stroke | 859647 |
Also compatible with the following Perkins Prima and M-series engines.
| Brand | Model | Stroke | Notes |
|---|---|---|---|
| Perkins | Prima 4.20 | 4-Stroke | |
| Perkins | M50 | 4-Stroke | |
| Perkins | M65 | 4-Stroke | |
| Perkins | M80T | 4-Stroke | Turbocharged |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation Location
- Between engine block and cylinder head
- Fuel Type
- Diesel
- Housing Material
- Composite/Metal
- Dimensions
- 18.0 cm L x 44.5 cm W x 0.3 cm H
- Function
- Ensures maximum compression and prevents leaks of oil or coolant into cylinders
What’s in the Box
- 1 x Cylinder Head Gasket (Replaces 859647)
Installation Notes
- Disconnect the battery and drain all engine coolant and oil.
- Remove any components obstructing access to the cylinder head, such as manifolds and the valve cover.
- Carefully loosen and remove the cylinder head bolts, following the manufacturer's recommended sequence (typically reverse of tightening order).
- Lift the cylinder head off the engine block. Do not pry or force it.
- Remove the old head gasket. Thoroughly clean and inspect the mating surfaces of both the engine block and the cylinder head to ensure they are flat and free of debris.
- Position the new cylinder head gasket correctly. Check for any "TOP" or "FRONT" markings to ensure proper orientation.
- Carefully place the cylinder head back onto the block.
- Install the head bolts and tighten them in stages using a torque wrench, following the manufacturer's specified sequence and torque values. This is critical for a proper seal.
- Reassemble all previously removed components.
- Refill the engine with fresh oil and the correct type of coolant.
- Reconnect the battery, start the engine, and carefully check for any coolant, oil, or compression leaks around the head.
Troubleshooting & FAQ
How do I know if my cylinder head gasket is failing?
Signs of a blown head gasket include engine overheating, unexplained coolant loss, white smoke from the exhaust, milky residue on the oil cap (indicating oil/coolant mixing), bubbling in the coolant reservoir, and a noticeable loss of engine compression or power.
Is this gasket compatible with turbocharged engines?
Yes, this gasket is fully compatible with the turbocharged models listed, including the Volvo Penta TAMD22P-B and Perkins M80T. It is built to handle the higher pressures of turbocharged applications.
Do I need to use a sealant with this gasket?
No. This head gasket is designed to be installed dry. Applying sealants can interfere with its ability to seal correctly and may cause premature failure. Always ensure the block and head surfaces are perfectly clean and flat before installation.
What causes a head gasket to fail?
The most common cause of failure is engine overheating. Other causes include improper installation (incorrect torque sequence or values), pre-ignition or detonation, and age or material fatigue.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
