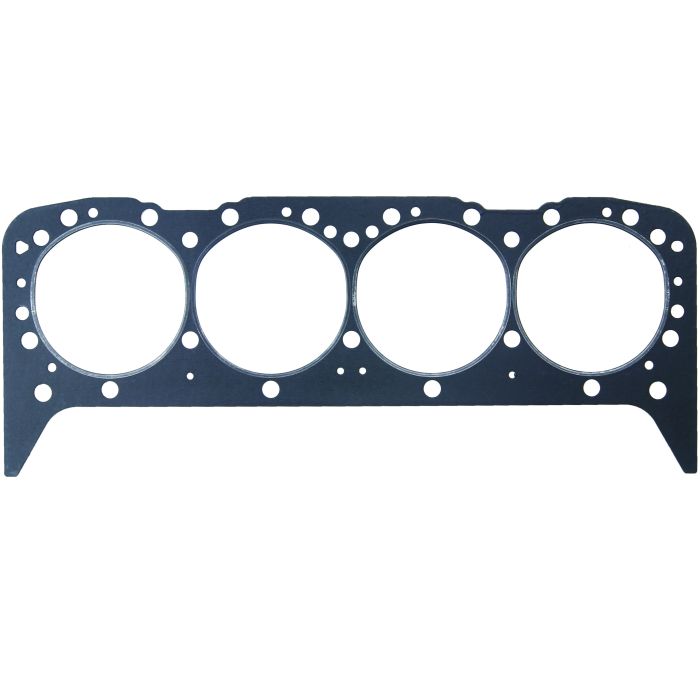

Cylinder Head Gasket – Fits Volvo Penta/Mercruiser 5.7L & 6.2L V8
Product Details
This replacement Cylinder Head Gasket – Fits Volvo Penta/Mercruiser 5.7L & 6.2L V8 (Replaces 17030, 3853380, 856474) is designed for a wide range of Volvo Penta (5.0L, 5.7L, 6.2L), Mercruiser, and GM Marine (305/350 CID) V8 engines from the 1970s to the present. It ensures a reliable seal between the cylinder head and the engine block, essential for maintaining engine compression and preventing fluid leaks.
It directly replaces Volvo Penta 3853380/856474/841207, Mercruiser 27-75611/27-75611001, Crusader RM0195, Bombardier 0508718/0509116, and Fel-Pro 17030.
- Material: Multi-layer steel with a non-stick coating for a durable, sealant-free installation.
- Application: Fits GM-based 305 and 350 CID marine engines with a 104.50 mm bore.
- Installation: Mounts directly between the engine block and cylinder head.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3853380 |
| Volvo Penta | 856474 |
| Volvo Penta | 841207 |
| Mercruiser | 27-75611 |
| Mercruiser | 27-75611001 |
| Crusader | RM0195 |
| Bombardier | 0508718 |
| Bombardier | 0509116 |
| Bombardier | 3853380 |
| Fel-Pro | 17030 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Volvo Penta engines, this gasket fits a wide range of V8 models from the 1970s through current production years.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Volvo Penta | 5.0-BY, 5.0-EF, 5.0-WT | 220 | 4-Stroke | 1990s–2000s | 3853380 | |
| Volvo Penta | 5.0Gi, 5.0GL, 5.0GS, 5.0GXi, 5.0OSi | 220–270 | 4-Stroke | 1990s–2000s | 3853380 | |
| Volvo Penta | 5.7-BY, 5.7-EF, 5.7-LK, 5.7-WT | 270–300 | 4-Stroke | 1990s–2000s | 3853380 | |
| Volvo Penta | 5.7Gi, 5.7GL, 5.7GS, 5.7GXi, 5.7OSi, 5.7OSXi | 270–320 | 4-Stroke | 1990s–2000s | 3853380 | |
| Volvo Penta | 500A, 501, 501A, 501B, 570A, 571A, 572A | 190–275 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | AQ200A/B/C/D/F, AQ210A, AQ211A | 190–205 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | AQ225A/B/C/D/E/F, AQ231A/B | 225–231 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | AQ255A/B, AQ260A/B, AQ271A/B/C/D | 255–275 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | AQ280A, AQ290A, AQ311A/B | 280–311 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | BB225A/AV/B/C, BB231A | 225–231 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | BB260A/AV/B/C, BB261A | 260–261 | 4-Stroke | 1970s–1990s | 856474 | Older models |
| Volvo Penta | 6.2 Series | 320–380 | 4-Stroke | 2010s–Present | 3853380 | Newer V8 models |
For Mercruiser and other GM-based marine engines, compatibility generally covers models from 1997-newer with an 8-bolt intake manifold.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercruiser | 5.0L (305 CID) | 190–260 | 4-Stroke | 1997–newer | 27-75611/27-75611001 | For engines with 8-bolt intake manifold |
| Mercruiser | 5.7L (350 CID) | 220–320 | 4-Stroke | 1997–newer | 27-75611/27-75611001 | For engines with 8-bolt intake manifold |
| Mercruiser | 6.2L | 320–380 | 4-Stroke | 1997–newer | 27-75611/27-75611001 | For engines with 8-bolt intake manifold |
| Crusader | 5.7L/350 CID engines | 270–330 | 4-Stroke | 1997–newer | RM0195 | |
| Marine Power | 5.7L/350 CID engines | 270–315 | 4-Stroke | 1997–newer | 27-75611 | Compatible with Vortec marine engines |
| Bombardier | 5.7L/350 CID engines | 270–315 | 4-Stroke | 1997–newer | 0508718/0509116 |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Between cylinder head and engine block
- Fuel Type
- Gasoline
- Material
- Multi-layer steel with non-stick coating
- Dimensions
- 66.0 cm × 28.5 cm × 1.0 cm
- Weight
- 0.25 kg (0.55 lb)
- Application
- GM 305 and 350 CID engines
- Bore Size
- 104.50 mm (4.115 in)
What’s in the Box
- 1 x Cylinder Head Gasket
Installation Notes
- Disconnect the battery and completely drain the engine cooling system.
- Remove interfering components like the intake/exhaust manifolds, valve covers, and rocker arms.
- Following the service manual, loosen and remove the cylinder head bolts in the specified reverse sequence.
- Carefully lift the cylinder head from the engine block and remove the old gasket.
- Thoroughly clean and inspect the mating surfaces of the engine block and cylinder head. Ensure they are flat, clean, and dry.
- Position the new gasket correctly on the engine block; do not use any sealant.
- Carefully lower the cylinder head onto the gasket and block.
- Install new or verified head bolts. Lubricate threads as per the manual and tighten in multiple stages, following the manufacturer's torque sequence and values precisely.
- Reinstall all previously removed components.
- Refill the cooling system with the appropriate coolant, check oil level, and reconnect the battery before starting the engine.
Troubleshooting & FAQ
How do I know if my cylinder head gasket has failed?
Common signs include engine overheating, white smoke from the exhaust (coolant burning), milky or frothy engine oil (oil/coolant mixing), bubbles in the radiator or coolant reservoir, and unexplained coolant loss.
Does this gasket require sealant upon installation?
No. This is a multi-layer steel (MLS) gasket with a non-stick coating designed for a dry installation. Applying sealants can interfere with its function and cause premature failure.
Can I reuse my old head bolts?
It is strongly recommended to use new head bolts, as many are torque-to-yield (TTY) and stretch permanently upon first use. Reusing them can lead to improper clamping force and gasket failure. Always consult your service manual.
Is this gasket compatible with both Vortec and non-Vortec heads?
This gasket is primarily designed for 1997 and newer engines, many of which use Vortec-style heads with an 8-bolt intake manifold. Always verify your specific engine requirements and part numbers before purchase.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility and batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
