Exhaust Manifold to Turbo Gasket – Fits Volvo Penta MD30A/31A/40A/B (Replaces 22134)
Exhaust Manifold to Turbo Gasket – Fits Volvo Penta MD30A/31A/40A/B (Replaces 22134) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Exhaust Manifold to Turbo Gasket – Fits Volvo Penta MD30A/31A/40A/B...
Product Details

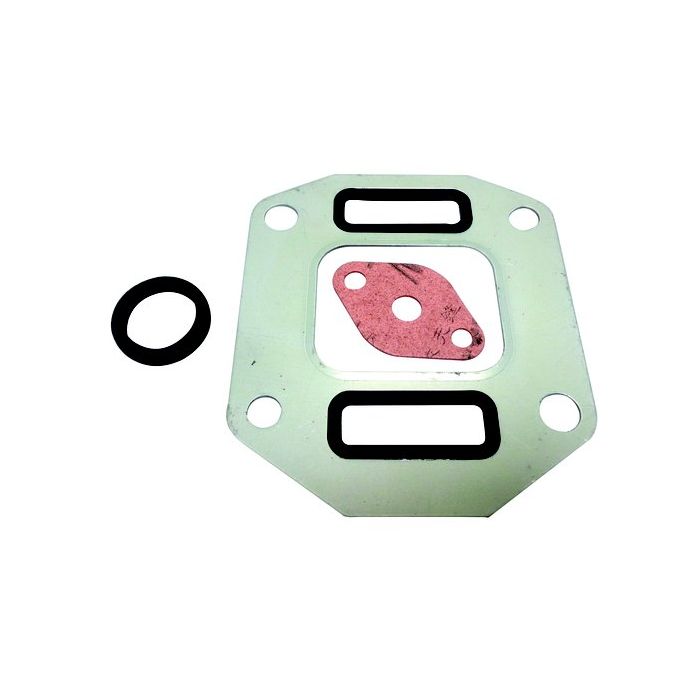

This high-temperature Exhaust Manifold to Turbo Gasket creates a secure seal between the exhaust manifold and the turbocharger assembly. It is engineered to fit Volvo Penta MD30A and MD31A series 4-cylinder diesel engines (1983–1994) as well as select MD40A/B 6-cylinder diesel engines (1976–1986).
It serves as a direct replacement for Volvo Penta part 22134 and Orbitrade 22134.
- Direct bolt-on flange gasket
- Designed for high-temperature diesel exhaust environments
- Made from durable composite gasket material
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 22134 |
| Orbitrade | 22134 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Designed for specific Volvo Penta turbo diesel models from the 1970s and 1980s. Please verify your engine details carefully.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Volvo Penta | MD30A | 65 | 4-Stroke | 1983–1986 | 22134 | Turbo diesel |
| Volvo Penta | MD31A | 62 | 4-Stroke | 1986–1994 | 22134 | Turbo diesel |
| Volvo Penta | TAMD30A | 110 | 4-Stroke | 1983–1986 | 22134 | Turbo diesel |
| Volvo Penta | TAMD31A | 130 | 4-Stroke | 1986–1991 | 22134 | Turbo diesel |
| Volvo Penta | TMD30A | 90 | 4-Stroke | 1983–1986 | 22134 | Turbo diesel |
| Volvo Penta | TMD31A | 100 | 4-Stroke | 1986–1989 | 22134 | Turbo diesel |
| Volvo Penta | MD40A | 72-85 | 4-Stroke | 1976–1985 | 22134 | Turbo diesel, some models |
Technical Specs
- Product Type
- Exhaust Manifold to Turbo Gasket
- Installation
- Direct fit between exhaust manifold and turbocharger
- Fuel Type
- Diesel
- Connection
- Bolt-on flange gasket
- Housing Material
- Composite gasket material
- Dimensions
- Height: 0.3 cm, Width: 14.5 cm, Length: 18.5 cm
- Weight
- 0.09 kg (0.2 lb)
- Operating Temperature
- Suitable for high-temperature exhaust applications
What’s in the Box
- 1x Exhaust Manifold to Turbo Gasket (Replaces 22134)
Installation Notes
- Ensure the engine is completely cool. Disconnect the battery.
- Remove any heat shields or components blocking access to the turbo-to-manifold connection.
- Carefully unbolt the turbocharger from the exhaust manifold.
- Remove the old gasket and thoroughly clean both mating surfaces. Ensure they are free of old material, carbon, and debris.
- Position the new gasket correctly, aligning all bolt holes.
- Re-attach the turbocharger and tighten the bolts to the manufacturer's recommended torque specifications in the correct sequence.
- Reconnect the battery, start the engine, and check for any exhaust leaks around the new gasket.
Troubleshooting & FAQ
Will this gasket fit my Volvo Penta MD40A engine?
This gasket is listed as compatible with some MD40A models (1976–1985). However, as fitment can vary, we strongly recommend comparing the gasket's shape and dimensions (14.5 cm x 18.5 cm) to your old part before ordering to ensure a perfect match.
Do I need to use sealant with this gasket?
Generally, this type of composite gasket is designed to be installed dry without any additional sealant. Applying sealant can sometimes cause premature failure. Always follow the specific instructions in your engine's service manual.
What are the signs of a failing exhaust manifold to turbo gasket?
Common signs include an audible exhaust leak (a ticking or hissing sound) from the engine bay that may change with engine RPM, a noticeable loss of turbo boost or power, and visible black soot or exhaust residue around the manifold-to-turbo flange.
How often should this gasket be replaced?
This gasket does not have a fixed replacement interval. It should be replaced whenever the turbocharger is removed or if signs of a leak develop.
Is this part equivalent to the OEM version?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. It is manufactured in an ISO 9002 facility and batch-inspected for consistency.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window for unused items in original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is recommended for safety and performance.
