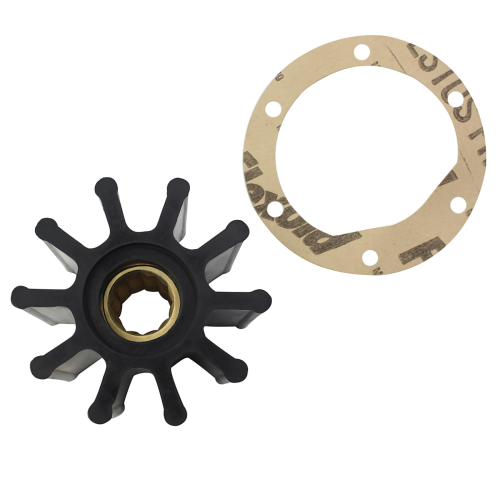

Impeller Kit for Volvo Penta D4 Diesel Engines – Fits Multiple Marine Applications (Replaces 3588475, 877061-2)
Impeller Kit for Volvo Penta D4 Diesel Engines – Fits Multiple Marine Applications (Replaces 3588475, 877061-2) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Impeller Kit for Volvo Penta D4 Diesel Engines – Fits Multiple Mari...
Product Details
This Impeller Kit for Volvo Penta D4 Diesel Engines is a crucial cooling system component designed for various models, including the D4-180, D4-210, D4-225, D4-260, and D4-300 series. The kit provides reliable performance as a direct replacement for your original impeller, ensuring your engine remains properly cooled.
It serves as a direct interchange for multiple part numbers, including Volvo Penta 3588475, 877061-2, 825941, and 801277; Jabsco 17937-0001; Caterpillar 7C3286; and others.
- Designed for a direct OEM replacement fit.
- Made from durable neoprene for longevity in marine environments.
- Kit includes all necessary gaskets and O-rings for a complete installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3588475 |
| Volvo Penta | 877061-2 |
| Volvo Penta | 825941 |
| Volvo Penta | 801277 |
| Jabsco | 17937-0001 |
| Jabsco | 17937-0001P |
| Caterpillar | 7C3286 |
| Detroit Diesel | 5193602 |
| Mercruiser | 47-8013326-01 |
| Perkins | 0460024 |
| Perkins | 24880031 |
| Yanmar | 127610-42200 |
| Vetus | IMP00301 |
Engine & Model Compatibility
Confirm your engine model in the table below. This impeller is designed for the specified Volvo Penta D4 series diesel engines.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Volvo Penta | D4-180I-B/C/D/E/F | 180 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-175I-G | 175 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-210I-A/B | 210 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-210A-A/B | 210 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-225I-B/C/D/E/F | 225 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-225A-B/C/D/E/F | 225 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-230I-G | 230 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-230A-G | 230 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-260I-A/B/C/D/E/F | 260 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-260A-A/B/C/D/E/F | 260 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-260D-B/C/D/E/F | 260 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-270I-G | 270 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-270A-G | 270 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-300I-A/C/D/E/F/G | 300 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-300A-A/C/D/E/F/G | 300 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-300D-A/C/D/E/F | 300 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-320I-G | 320 | 4-Stroke | 3588475 | Diesel Engine |
| Volvo Penta | D4-320A-G | 320 | 4-Stroke | 3588475 | Diesel Engine |
This impeller is also used in the following JMP Marine replacement pumps.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| JMP Marine | JPR-G6000F | 7426-01K | Detroit Diesel Replacement |
| JMP Marine | JPR-G6010F | 7426-01K | Detroit Diesel Replacement |
| JMP Marine | JPR-VP0040DA | 7426-01K | Volvo Penta Replacement |
Technical Specs
- Product Type
- Flexible Impeller Kit
- Installation
- Direct OEM Replacement
- Housing Color
- Black (Neoprene)
- Impeller Diameter
- 65 mm (2.56 in)
- Impeller Width
- 50-51 mm (1.97-2.00 in)
- Shaft Diameter
- 15.8 mm (0.62 in)
- Weight
- 0.208 kg (0.46 lb)
- Number of Blades
- 10
- Drive Type
- Spline Drive (12)
- Insert Material
- Brass
- Impeller Material
- Neoprene
What’s in the Box
- 1 x Impeller (7426-01/17937-0001)
- 1 x Gasket (GAK0016)
- 1 x O-Ring (ORG0013)
- 1 x O-Ring (ORG0071)
- 2 x Screws (included with Volvo kit)
Installation Notes
- Shut off the engine, let it cool, and close the water intake seacock.
- Remove the screws from the sea water pump cover.
- Carefully remove the cover and the old gasket or O-ring.
- Use impeller pullers or two pairs of pliers to grip the hub and pull the old impeller out. Avoid using screwdrivers, which can damage the housing.
- Clean any debris or old gasket material from the pump housing interior and cover plate.
- Lubricate the inside of the pump housing and the new impeller with water-resistant grease or liquid soap.
- Insert the new impeller, bending the blades in the direction of the pump's normal rotation.
- Install the new gasket or O-ring on the cover plate.
- Reinstall the cover plate and tighten the screws evenly in a crisscross pattern.
- Open the seacock, start the engine, and immediately check for water flow from the exhaust and for any leaks around the pump cover.
Troubleshooting & FAQ
How do I know this impeller fits my Volvo Penta D4?
This kit is specifically for Volvo Penta D4 series engines. Please check the compatibility table on this page and match your complete engine model number (e.g., D4-260I-A) to confirm fitment. Verifying your OEM part number (3588475) is the most reliable method.
What are the signs of a failing impeller?
Common signs include engine overheating alarms, reduced water flow from the exhaust outlet, visible cracks on the impeller blades, or pieces of rubber found in the cooling system (e.g., in the heat exchanger).
How often should I replace my impeller?
As a best practice, impellers should be inspected annually and replaced either every year or every two years, depending on usage hours and operating conditions. Always follow your engine manufacturer's service recommendations.
Is this kit difficult to install?
Installation is straightforward for those with basic mechanical skills. However, accessing the sea water pump can be difficult depending on the engine room layout. Always follow safety procedures like closing the seacock before starting.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
