Neoprene Flexible Impeller Kit – Fits Caterpillar, Detroit Diesel, ...
Product Details

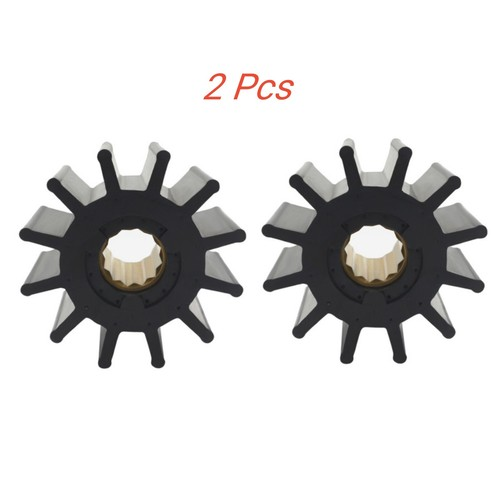

This Neoprene Flexible Impeller Kit – Fits Multiple Marine Engines (Replaces Jabsco 17935-0001) is a 12-blade, spline drive impeller engineered for raw water and sea water cooling applications. It is designed for reliable performance on a variety of marine engines, including models from Caterpillar, Detroit Diesel, and Volvo Penta.
This kit serves as a direct replacement for Jabsco 17935-0001/17935-0001-P, Johnson Pump 09-819B, Sierra 18-3275, and many other OEM and aftermarket part numbers.
- Engineered for raw/sea water cooling systems.
- Features a spline drive for secure installation.
- Kit includes the impeller, gasket, and lubricating packet.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Jabsco | 17935-0001 |
| Jabsco | 17935-0001-P |
| Johnson Pump | 09-819B |
| Sierra | 18-3275 |
| Caterpillar | 5L6042 |
| Caterpillar | 5N9360 |
| Caterpillar | 1W9046 |
| Detroit Diesel | 5196628 |
| Detroit Diesel | 8924838 |
| Volvo Penta | 875660 |
| Volvo Penta | 875736 |
| Volvo Penta | 825942 |
| Volvo Penta | 807904 |
| Volvo Penta | 21730344 |
| Volvo Penta | 877066 |
| Volvo Penta | 21951362 |
| Onan | 500135 |
| Perkins | 7054 |
| Ancor | J050035 |
| CEF | 500135 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Caterpillar engines, this impeller fits various 3300 series models.
For Detroit Diesel engines, fits popular 6V and 8V series models.
For Volvo Penta engines, this impeller is compatible with a wide range of MD, TD, TMD, and TAMD series engines.
| Brand | Model | OEM Part No. |
|---|---|---|
| Caterpillar | 3304 | 5L6042, 5N9360, 1W9046 |
| Caterpillar | 3304B | 5L6042, 5N9360, 1W9046 |
| Caterpillar | 3306 | 5L6042, 5N9360, 1W9046 |
| Caterpillar | 3306B | 5L6042, 5N9360, 1W9046 |
| Caterpillar | D330C | 5L6042, 5N9360, 1W9046 |
| Detroit Diesel | 6V53 | 5196628, 8924838 |
| Detroit Diesel | 6V71 | 5196628, 8924838 |
| Detroit Diesel | 8V53 | 5196628, 8924838 |
| Volvo Penta | TAMD61 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD62 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD71 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD72 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD73 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | MD100 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | MD120 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TD100 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TD120 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TMD100 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TMD120 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD100 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD102 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Volvo Penta | TAMD120 | 875660, 875736, 825942, 807904, 21730344, 877066, 21951362 |
| Onan | MDL3 | 500135 |
| Onan | MDL4 | 500135 |
| Onan | MDL6 | 500135 |
| Chris Craft | 350 | |
| Chris Craft | 454 | |
| Pleasurecraft Marine | 302 | |
| Pleasurecraft Marine | 351 | |
| Pleasurecraft Marine | 454 |
Technical Specs
- Product Type
- Flexible Impeller Kit
- Installation
- Spline Drive
- Material
- Neoprene
- Insert Type
- Brass
- Number of Blades
- 12
- Impeller Profile
- Q (Jabsco)
- Outer Diameter
- 95 mm (3.74 in)
- Width/Depth
- 63 mm (2.48 in)
- Shaft Diameter
- 25 mm (1 in)
- Weight
- 0.68 kg (1.5 lb)
- Application
- Engine Cooling (Raw/Sea Water)
- Warranty
- Manufacturer's Standard Warranty
What’s in the Box
- 1 x Neoprene Impeller (Replaces Jabsco 17935-0001)
- 1 x Gasket
- 1 x Lubricating Packet (Glycerin)
Installation Notes
- Ensure the engine is off and the water intake seacock is closed.
- Remove the cover plate from the water pump housing.
- Use pliers or an impeller puller to carefully remove the old impeller.
- Clean the interior of the pump housing, removing any debris or old impeller fragments.
- Install the new gasket on the cover plate or pump body as required.
- Apply the provided glycerin lubricant to the inside of the pump housing and the new impeller.
- Insert the new impeller, bending the blades in the correct rotational direction if necessary.
- Reinstall the cover plate and tighten the screws evenly.
- Open the seacock and check for leaks after starting the engine.
Troubleshooting & FAQ
How do I confirm this impeller fits my specific engine?
The best method is to match your existing part number to one listed in our Part Number Matrix. If you cannot find your part number, check the Engine & Model Compatibility table. If still unsure, measure your old impeller's diameter, width, and shaft type and compare it to our Technical Specs.
What are the signs of a failing impeller?
Common symptoms include engine overheating at idle or low speeds, a reduced flow of water from the exhaust outlet, and visible cracks or missing blades on the impeller itself during inspection.
How often should I replace my raw water pump impeller?
As a general rule, it's recommended to inspect your impeller annually and replace it every 1-2 years or every 200-300 operating hours, whichever comes first. This can vary based on usage, water conditions (sandy/silty water causes faster wear), and whether you frequently run the pump dry.
My old impeller had a different number of blades. Can I still use this one?
Generally, you should use an impeller with the same blade count as the original. However, some part numbers are superseded by designs with a different blade count that provide similar or better flow characteristics. This 12-blade impeller is the current standard replacement for the listed part numbers, some of which may have originally used a 9-blade design.
What is 'spline drive'?
Spline drive refers to the mounting interface of the impeller. The center brass hub has a series of grooves (splines) that match corresponding ridges on the pump shaft. This design ensures a tight, non-slip fit, allowing the shaft to transfer rotational force to the impeller effectively.
Is it okay if the included gasket looks different from my original?
Yes. Aftermarket kits are designed to fit a wide range of pump models, and the included gasket is often a universal style that seals correctly across all listed applications, even if its shape differs slightly from the OEM version.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
