Power Trim Cylinder Kit – Fits Volvo Penta SX and DP-SM Sterndrives...
Product Details
This Power Trim Cylinder Kit provides a complete replacement solution for Volvo Penta SX and DP-SM sterndrives manufactured in 1994 and later. It is engineered to restore the original power trim and tilt functionality, ensuring proper sterndrive positioning for optimal performance and fuel efficiency.
It serves as a direct interchange for Volvo Penta part numbers 3885196, 3852414, and 3850683.
- Designed for direct, bolt-on installation.
- Connects to existing hydraulic lines using included o-ring seals.
- Specifically for single propeller applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Volvo Penta | 3850683 | 3885196 |
| Volvo Penta | 3852414 | 3885196 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is compatible with the following Volvo Penta sterndrive models.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Volvo Penta | SX-C | 3885196 | Replaces 3852414, 3850683 |
| Volvo Penta | SX-R | 3885196 | Replaces 3852414, 3850683 |
| Volvo Penta | SX-S | 3885196 | Replaces 3852414, 3850683 |
| Volvo Penta | SX-MLT | 3885196 | Replaces 3852414, 3850683 |
| Volvo Penta | SX-MACLT | 3885196 | Replaces 3852414, 3850683 |
| Volvo Penta | DP-SM | 3885196 | Replaces 3852414, 3850683 |
Technical Specs
- Product Type
- Power Trim Cylinder Kit
- Installation
- Direct replacement
- Connection
- Hydraulic lines with o-ring seals
- Housing Material
- Aluminum alloy
- Dimensions
- 47.0" L x 19.0" W x 16.0" H
- Fitting Type
- Hydraulic
- Other Technical Attributes
- For single propeller applications

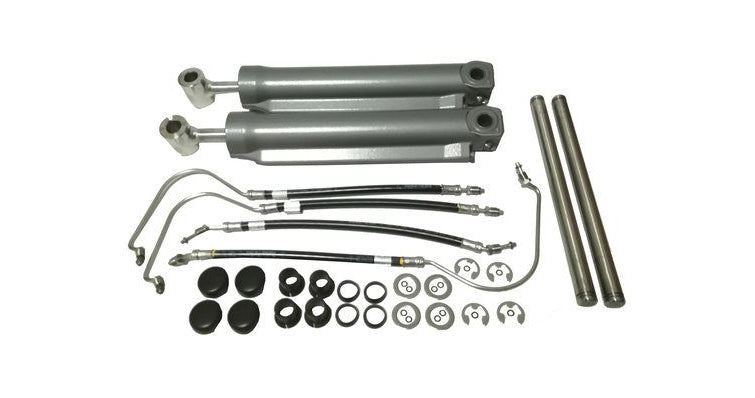

What’s in the Box
- 2 x Power Trim Cylinders (3857470)
- 4 x Trim Lines
- 12 x O-rings
- 2 x Pivot Pins
- 4 x Bushings
- 1 x Instruction Booklet
Installation Notes
- Disconnect the battery and ensure the sterndrive is in the fully down position. Brace it securely.
- Relieve any pressure in the hydraulic system. Place absorbent pads under the hydraulic line connections.
- Carefully disconnect the hydraulic lines from the cylinders. Cap the lines and ports to prevent contamination.
- Remove the pivot pins or bolts securing the old cylinders to the sterndrive and transom assembly.
- Remove the old cylinders. Clean all mounting surfaces and inspect pivot bushings for wear.
- Install the new cylinders using the new pivot pins and bushings provided in the kit.
- Reconnect the hydraulic lines using the new o-rings. Ensure fittings are clean and torqued to specification.
- Reconnect the battery. Fill and bleed the power trim hydraulic system according to the manufacturer's service manual.
- Operate the trim system through several full cycles, checking for leaks and smooth operation. Re-check fluid level.
Troubleshooting & FAQ
Which Volvo Penta drives is this kit compatible with?
This kit is designed for Volvo Penta SX and DP-SM series sterndrives from 1994 and newer. Please refer to the compatibility table for specific model numbers like SX-C, SX-R, and DP-SM.
What are common signs that my trim cylinders need replacing?
Symptoms include a "spongy" or unresponsive trim, visible hydraulic fluid leaks around the cylinder seals or lines, or the sterndrive slowly dropping from a trimmed-up position (known as "bleed-down").
How do I bleed the trim system after installing the new cylinders?
After installation, top off the hydraulic fluid reservoir. Cycle the sterndrive up and down slowly 4-5 times, pausing at the top and bottom of each cycle. This purges air from the system. Re-check and top off the fluid level when finished.
Is this a single cylinder or a pair?
This is a complete kit that includes both the port and starboard (left and right) trim cylinders, along with new hydraulic lines, pins, and seals for a full replacement.
What is the difference between OEM and this aftermarket kit?
This listing is an aftermarket replacement (not OEM). It's built to OEM-level specifications with comparable materials, such as high-strength aluminum alloy. Our parts are manufactured in an ISO 9002 facility and batch-inspected for consistency and performance.
How fast do you ship and what does it cost?
We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free to most locations, with expedited options available at checkout where applicable.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If an issue arises, contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. Please see our full policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchasing. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component.
- Professional installation is highly recommended for safety and to ensure peak performance.
