Propeller Set – Fits Volvo Penta DPS-A Drives (Replaces 3856365)
Product Details

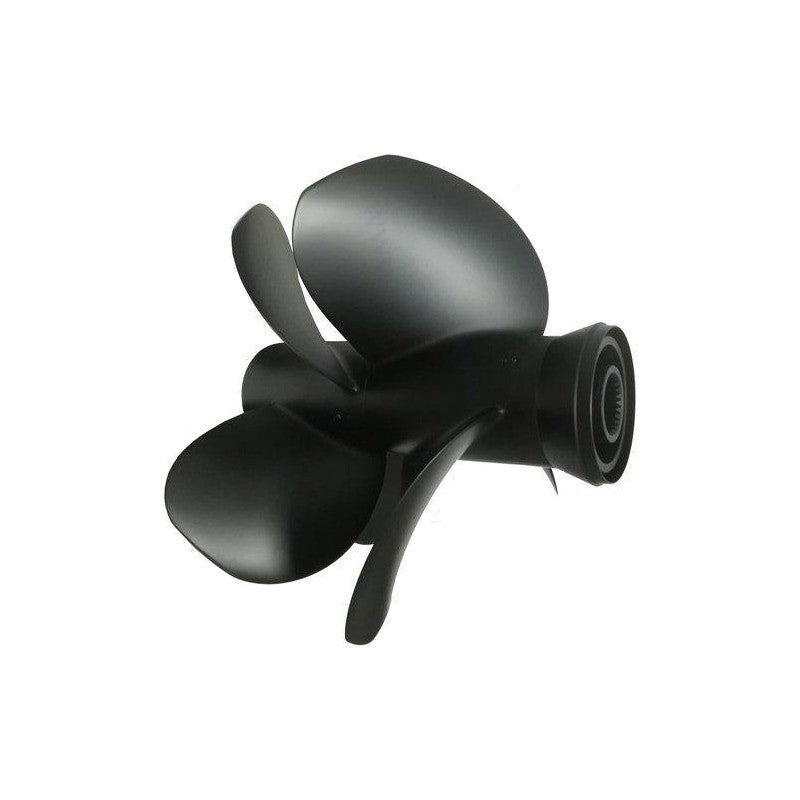

This is an aftermarket Duoprop propeller set designed for Volvo Penta DPS-A drives used in gasoline and diesel engines from the 1990s to the present. The Volvo Penta Duoprop D5 Set (3856365) is engineered for vessels operating at speeds up to 35 knots, providing reliable performance in marine environments.
This set serves as a direct replacement for Volvo Penta D5 series part number 3856365 and is an interchange for the superseding Type I5 propeller set (part number 21258485).
- Installation Method: Mounts on a DPS-A Drive with a straight spline.
- Housing Material: Cast from a durable aluminum alloy.
- Operating Environment: Suitable for all marine conditions.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By |
|---|---|---|
| Volvo Penta | D5 / 3856365 | I5 / 21258485 |
Engine & Model Compatibility
Confirm your engine model and year in the table below.
For Volvo Penta applications, this set fits both gasoline and diesel engines equipped with DPS-A drives, intended for speeds up to 35 knots.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Volvo Penta | Gasoline Engines | Various | 4-Stroke | 3856365 | For DPS-A drives with speeds up to 35 knots |
| Volvo Penta | Diesel Engines | Various | 4-Stroke | 3856365 | For DPS-A drives with speeds up to 35 knots |
Technical Specs
- Product Type
- Duoprop Propeller Set
- Installation
- DPS-A Drive (Straight Spline)
- Fuel Type
- Gasoline or Diesel
- Housing Material
- Aluminum
- Housing Color
- Black
- Propeller Type
- Type D Aluminum Propeller
- Individual Prop Part Numbers
- Front: 3856345, Rear: 3856355
- Product Dimensions (cm)
- Length: 45.0, Width: 45.5, Height: 45.0
- Fitting Type
- Straight Spline
- Max Speed
- Up to 35 knots
- Operating Temperature
- Marine Environment
What’s in the Box
- 2 x Propellers (Front 3856345, Rear 3856355)
Installation Notes
- Ensure the engine is off, the drive is in neutral gear, and the ignition key is removed for safety.
- Remove the rear propeller cone, then carefully slide the rear propeller off the shaft.
- Remove the front propeller cone, then slide the front propeller off the shaft.
- Thoroughly clean the propeller shafts and inspect splines for wear or damage.
- Apply a liberal coat of marine-grade grease to both propeller shafts.
- Install the new front propeller (3856345), followed by its retaining nut.
- Install the new rear propeller (3856355), followed by its cone.
- Torque both nuts to the manufacturer's specified values to ensure they are secure.
Troubleshooting & FAQ
What drive is this propeller set for?
This Duoprop set is engineered specifically for Volvo Penta DPS-A drives, which utilize a straight spline for propeller mounting.
Can I use this set for speeds over 35 knots?
No. For boat speeds exceeding 35 knots, it is recommended to use stainless steel propellers, such as the Volvo Penta Type F series, for optimal performance and durability.
What is the difference between Type D and Type I propellers?
Type I is the newer, superseding propeller design from Volvo Penta. This D5 set is a direct aftermarket replacement for the original Type D configuration and offers comparable performance characteristics.
How do I know when it's time to replace my propellers?
Check for visible signs of damage, such as cracks, significant dings, bent blades, or heavy corrosion. A noticeable loss in performance, increased vibration, or reduced fuel efficiency are also strong indicators that a replacement is needed.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility and batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window if the product is unused and in its original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
