Trim Cylinder Kit – Fits Volvo Penta 290DP, DP-A, DP-B, SP, SP-A Drives (Replaces 872612-7, 3860978)

Product Details

This high-quality aftermarket Trim Cylinder Kit – Fits Volvo Penta 290DP, DP-A, DP-B, SP, SP-A Drives (Replaces 872612-7, 3860978) is designed for a wide range of Volvo Penta sterndrive units, including the 290DP, DP-A, DP-B, SP, and SP-A series. It is compatible with numerous gasoline and diesel engines manufactured from the 1980s through the early 2000s, providing reliable performance for your vessel's trim and tilt system.

This component serves as a direct replacement, ensuring fit and function equivalent to Volvo Penta part numbers 872612, 872612-7, and 3860978.

• Engineered as a direct OEM-style replacement for straightforward installation.
• Features OEM-compatible hydraulic fittings for a secure, leak-free connection.
• Specifically used in the trim and tilt systems for Volvo Penta drives.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Compatible with a broad range of Volvo Penta gasoline engines, diesel engines, and sterndrive units. Please verify your specific model is listed to ensure correct fitment.

Technical Specs

Product Type

Trim Cylinder Kit

Installation

Direct OEM replacement

Connection

OEM-compatible hydraulic fittings

Dimensions

47.5" L x 16.5" W x 15.5" H

Other Attributes

Used in trim and tilt systems for Volvo Penta drives

What’s in the Box

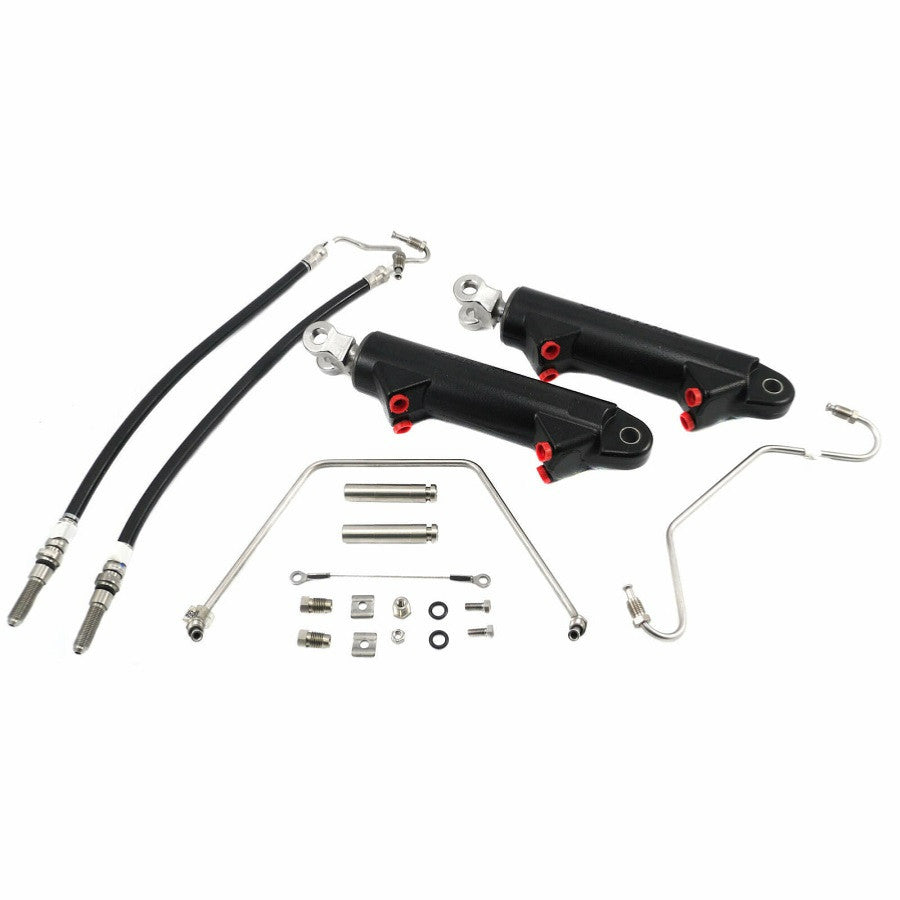

• 1 x Trim Cylinder Kit (Replaces 872612, 872612-7, 3860978)

Installation Notes

1. Disconnect the vessel's battery and follow all standard marine safety precautions.
2. Raise the sterndrive to the full "up" or "trailer" position and secure it with a drive lock or support block.
3. Place an oil-absorbent pad under the hydraulic connections to catch any spilled fluid.
4. Carefully disconnect the hydraulic lines from the trim cylinder. Be prepared for residual pressure and fluid release.
5. Remove the retaining pins or bolts securing the old cylinder to the drive and transom assembly.
6. Remove the old cylinder. Clean the mounting points of any debris or corrosion.
7. Position the new trim cylinder and secure it with the original retaining hardware. Ensure it is correctly oriented.
8. Reconnect the hydraulic lines to the new cylinder, ensuring fittings are clean and properly tightened.
9. Refill the hydraulic trim fluid reservoir to the correct level as specified by the manufacturer.
10. Reconnect the battery. Cycle the trim system up and down several times to bleed any air from the system.
11. Check the fluid level again and top off if necessary. Inspect all connections for leaks.
12. Remove the drive support and test the trim system for smooth and proper operation.

Troubleshooting & FAQ

Safety & Important Info

• Verify images and specifications against your original part before purchasing. If anything differs—even if your model appears on a compatibility list—do not purchase.
• This is an aftermarket replacement part, not an OEM component. All mentions of brand names and part numbers are for reference purposes only.
• Professional installation is strongly recommended for safety, proper function, and to prevent damage to the component or your vessel.
