Product Details
This Water Pump Impeller Repair Kit – Fits Yamaha 40/50/60 HP Outboards provides a complete solution for servicing Yamaha 40, 50, and 60 HP outboard engines. It is designed for Yamaha 2-Stroke 40/50 HP models (1997–2006) and 4-Stroke F40, F50, and F60 models (1997–Current). The kit restores cooling system performance to prevent engine overheating.
The kit serves as a direct replacement for Yamaha OEM part numbers 63D-W0078-01-00, 63D-W0078-00-00, 63D-W0078-02-00, 63D-W0078-03-00, and Sierra aftermarket part 18-3434.
- Engineered for direct OEM replacement installation without modifications.
- Features a durable neoprene impeller and stainless steel components for saltwater and freshwater use.
- Includes all necessary gaskets, O-rings, and hardware for a complete rebuild.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 63D-W0078-01-00 | Primary Replacement Kit |
| Yamaha | 63D-W0078-00-00 | Superseded Part |
| Yamaha | 63D-W0078-02-00 | Superseded Part |
| Yamaha | 63D-W0078-03-00 | Superseded Part |
| Yamaha | 6H3-44352-00-00 | Impeller Only |
| Sierra | 18-3434 | Aftermarket Interchange |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is compatible with the following Yamaha outboard models:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 40EJRV, 40EJRW, 40EJRX | 40 | 2-Stroke | 1997–1999 | 63D-W0078-01-00 | |
| Yamaha | 40ELRV, 40ELRW | 40 | 2-Stroke | 1997–1998 | 63D-W0078-01-00 | |
| Yamaha | 40ESRV, 40ESRW, 40ESRX | 40 | 2-Stroke | 1997–1999 | 63D-W0078-01-00 | |
| Yamaha | 40MJHV-Z | 40 | 2-Stroke | 1997–2001 | 63D-W0078-01-00 | |
| Yamaha | 40MLHV-Z | 40 | 2-Stroke | 1997–2001 | 63D-W0078-01-00 | |
| Yamaha | 40MSHV-X | 40 | 2-Stroke | 1997–1999 | 63D-W0078-01-00 | |
| Yamaha | 40TLHV | 40 | 2-Stroke | 1997 | 63D-W0078-01-00 | |
| Yamaha | 40TLR, 40TLRA-D | 40 | 2-Stroke | 2002–2005 | 63D-W0078-01-00 | |
| Yamaha | 40TLRV-Z | 40 | 2-Stroke | 1997–2001 | 63D-W0078-01-00 | |
| Yamaha | C40TLRV-Z | 40 | 2-Stroke | 1997–2001 | 63D-W0078-01-00 | Commercial model |
| Yamaha | C40TLRA-B | 40 | 2-Stroke | 2002–2003 | 63D-W0078-01-00 | Commercial model |
| Yamaha | P40TLHW, P40TLRW | 40 | 2-Stroke | 1998 | 63D-W0078-01-00 | |
| Yamaha | 50EJRV-Z | 50 | 2-Stroke | 1997–2001 | 63D-W0078-01-00 | |
| Yamaha | 50ELRV, 50ELRW | 50 | 2-Stroke | 1997–1998 | 63D-W0078-01-00 | |
| Yamaha | 50TLHV | 50 | 2-Stroke | 1997 | 63D-W0078-01-00 | |
| Yamaha | 50TLR, 50TLRA-D | 50 | 2-Stroke | 2002–2005 | 63D-W0078-01-00 | |
| Yamaha | 50TLRV, 50TLRZ | 50 | 2-Stroke | 1997, 2001 | 63D-W0078-01-00 | |
| Yamaha | C50TLRW-Z | 50 | 2-Stroke | 1998–2001 | 63D-W0078-01-00 | Commercial model |
| Yamaha | F40TLRX | 40 | 4-Stroke | 1999 | 63D-W0078-01-00 | |
| Yamaha | F50LA, F50LB | 50 | 4-Stroke | 2012–2016 | 63D-W0078-01-00 | |
| Yamaha | F50TLHV | 50 | 4-Stroke | 1997 | 63D-W0078-01-00 | |
| Yamaha | F50TLR | 50 | 4-Stroke | 2005–2011 | 63D-W0078-01-00 | |
| Yamaha | F50TLRA-D | 50 | 4-Stroke | 2002–2005 | 63D-W0078-01-00 | |
| Yamaha | F50TLRV-Z | 50 | 4-Stroke | 1997–2001 | 63D-W0078-01-00 | |
| Yamaha | F60JA, F60JB | 60 | 4-Stroke | 2012–2016 | 63D-W0078-01-00 | |
| Yamaha | F60LA, F60LB | 60 | 4-Stroke | 2012–2016 | 63D-W0078-01-00 | |
| Yamaha | F60LHA, F60LHB | 60 | 4-Stroke | 2011–2016 | 63D-W0078-01-00 | Yamaha | F60TJR | 60 | 4-Stroke | 2005–2007 | 63D-W0078-01-00 |
| Yamaha | F60TJRB-D | 60 | 4-Stroke | 2003–2005 | 63D-W0078-01-00 | |
| Yamaha | F60TLR | 60 | 4-Stroke | 2005–2011 | 63D-W0078-01-00 | |
| Yamaha | F60TLRA-D | 60 | 4-Stroke | 2002–2005 | 63D-W0078-01-00 | |
| Yamaha | T50TLRV | 50 | 4-Stroke | 1997 | 63D-W0078-01-00 | High Thrust |
| Yamaha | T50TLRC | 50 | 4-Stroke | 2004 | 63D-W0078-01-00 | High Thrust |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct OEM Replacement
- Material
- Neoprene Impeller, Stainless Steel Cup and Plate
- Package Dimensions
- 15.8 × 10.2 × 5.1 cm (6.22 × 4.02 × 2.01 inches)
- Weight
- 0.24 kg (8.4 oz)
- Replaces OEM Part Numbers
- 63D-W0078-00-00, 63D-W0078-01-00, 63D-W0078-02-00, 63D-W0078-03-00
- Replaces Impeller Part Number
- 6H3-44352-00-00

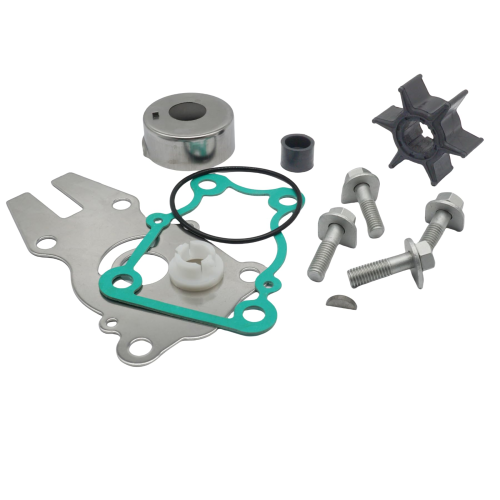

What’s in the Box
- 1 x Cartridge Insert (63D-44322-00-00)
- 1 x Impeller (6H3-44352-00-00)
- 1 x Pump Housing Cover (63D-44312-00-00)
- 1 x Cartridge Outer Plate (63D-44323-00-00)
- 1 x O-Ring (93210-59MG7-00)
- 1 x Water Pump Gasket (63D-44316-00-00)
- 4 x Bolts with Washers (90119-08M15-00)
- 1 x Water Seal Damper 2 (663-44366-00-00)
- 1 x Woodruff Key (90280-03024-00)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Drain the lower unit gear lube.
- Remove the propeller and the lower unit mounting bolts.
- Carefully separate the lower unit from the upper casing.
- Unbolt and remove the old water pump housing assembly.
- Clean all mating surfaces thoroughly, removing old gasket material.
- Install the new woodruff key, impeller, and gaskets from the kit.
- Assemble the new pump housing, ensuring the impeller fins are oriented correctly (typically clockwise).
- Torque housing bolts to manufacturer specifications.
- Re-install the lower unit, ensuring the water tube and driveshaft are aligned correctly.
- Refill the gear lube with the recommended oil type.
- Reconnect the battery and test the engine in water, verifying water is exiting the tell-tale port.
Troubleshooting & FAQ
How do I know if my water pump is failing?
Common signs include a weak or non-existent water stream from the tell-tale (peephole), engine overheating alarms, or a noticeable drop in cooling performance.
What is the recommended replacement interval for this kit?
For optimal performance and engine safety, it is recommended to inspect the impeller annually and replace the entire water pump kit every 200 hours of use or every two years, whichever comes first. This can vary based on operating conditions (e.g., saltwater vs. freshwater).
Do I need special tools for this installation?
Basic mechanics tools such as a socket set, torque wrench, and gasket scraper are required. A flywheel puller may be needed on some models, though not always necessary for a lower unit service.
My engine model isn't listed, but the HP is correct. Will it fit?
Do not assume fitment based on horsepower alone. To ensure compatibility, you must verify your specific engine model and year against the compatibility chart. Part numbers can vary significantly between models.
What is the purpose of the woodruff key?
The woodruff key locks the impeller to the driveshaft, ensuring it spins with the shaft to pump water. It is a critical component that should always be replaced during a water pump service.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
