Bearing 93341-34019 – Fits Yamaha Outboards F225/F250 (Replaces 93341-34019-00)
Bearing 93341-34019 – Fits Yamaha Outboards F225/F250 (Replaces 93341-34019-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Bearing 93341-34019 – Fits Yamaha Outboards F225/F250 (Replaces 933...
Product Details

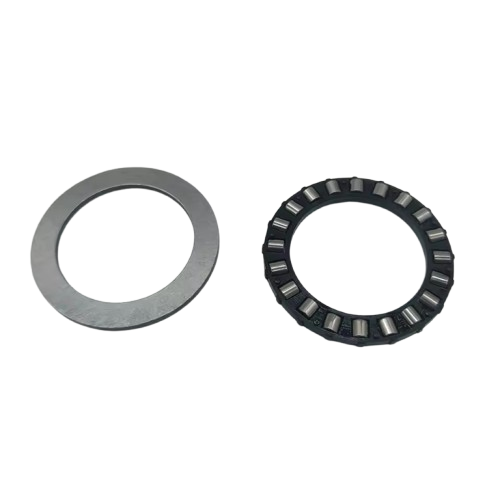

This is a replacement Bearing 93341-34019, designed as a lower driveshaft thrust bearing for Yamaha 4-stroke outboard engines from 225-250 HP, including the F225 and F250 series manufactured between 2005 and 2018.
It serves as a direct interchange for Yamaha OEM part 93341-34019-00 and Red Rhino YA-B345.
- Installs in the lower casing drive unit.
- Constructed from chrome steel for durability.
- Engineered as a direct-fit internal component.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 93341-34019-00 |
| Red Rhino | YA-B345 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is manufactured to fit the following Yamaha outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F225TLR | 225 | 4-Stroke | 2007–2009 | 93341-34019-00 | Lower Casing Drive 1 |
| Yamaha | F250 | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Lower Casing Drive 1 |
| Yamaha | F250TUR | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Multiple drive configurations |
| Yamaha | F250TURD | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Multiple drive configurations |
| Yamaha | F250XA | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Multiple drive configurations |
| Yamaha | F250BTXR | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Multiple drive configurations |
| Yamaha | LF250TUR | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Left-hand drive model |
| Yamaha | LF250UA | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Left-hand drive model |
| Yamaha | LF250TURD | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Left-hand drive model |
| Yamaha | LF250BTUR | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Left-hand drive model |
| Yamaha | LF250XA | 250 | 4-Stroke | 2005–2018 | 93341-34019-00 | Left-hand drive model |
Technical Specs
- Product Type
- Thrust Bearing
- Installation
- Lower Casing Drive
- Housing Material
- Chrome Steel
- Housing Color
- Silver/Metallic
- Dimensions
- 9.0" L x 9.0" W x 3.5" H
- Fitting Type
- Internal Component
- Other Technical Attributes
- Lower driveshaft thrust bearing
- Warranty
- Manufacturer standard warranty
What’s in the Box
- 1 x Bearing (93341-34019-00)
Installation Notes
- Disconnect the battery and secure the engine in a tilted position.
- Place a drain pan under the lower unit and remove the gear lube drain and vent screws to empty the oil.
- Remove the propeller and the lower unit (gearcase) mounting bolts.
- Carefully separate the lower unit from the upper housing.
- Disassemble the driveshaft and gear assembly to access the lower driveshaft thrust bearing.
- Note the orientation of the old bearing before removing it.
- Clean the housing and inspect the driveshaft for wear or damage.
- Install the new thrust bearing, ensuring it is seated correctly.
- Reassemble all components in reverse order, applying marine grease and sealant where required.
- Refill the gearcase with the manufacturer-specified gear lube.
Troubleshooting & FAQ
How do I know if this bearing fits my exact engine model?
The surest way is to check your engine's model number and year against the compatibility table in this listing. If your model is listed, the part is a confirmed fit. Do not rely on horsepower alone.
What are the signs of a failing lower driveshaft bearing?
Common symptoms include a grinding or whining noise from the gearcase, excessive vibration, or visible metal shavings in the gear lube during an oil change. These signs indicate it's time to inspect internal components like this bearing.
Is this bearing difficult to replace?
This is considered an advanced repair. It requires draining the lower unit, removing the gearcase, and disassembling the driveshaft assembly. We strongly recommend professional installation unless you have significant experience with outboard motor repair.
What is the difference between this and the upper driveshaft bearing?
This is the lower driveshaft thrust bearing, located inside the gearcase assembly. The upper driveshaft bearing is typically located higher up, where the driveshaft enters the engine powerhead. They are not interchangeable.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
