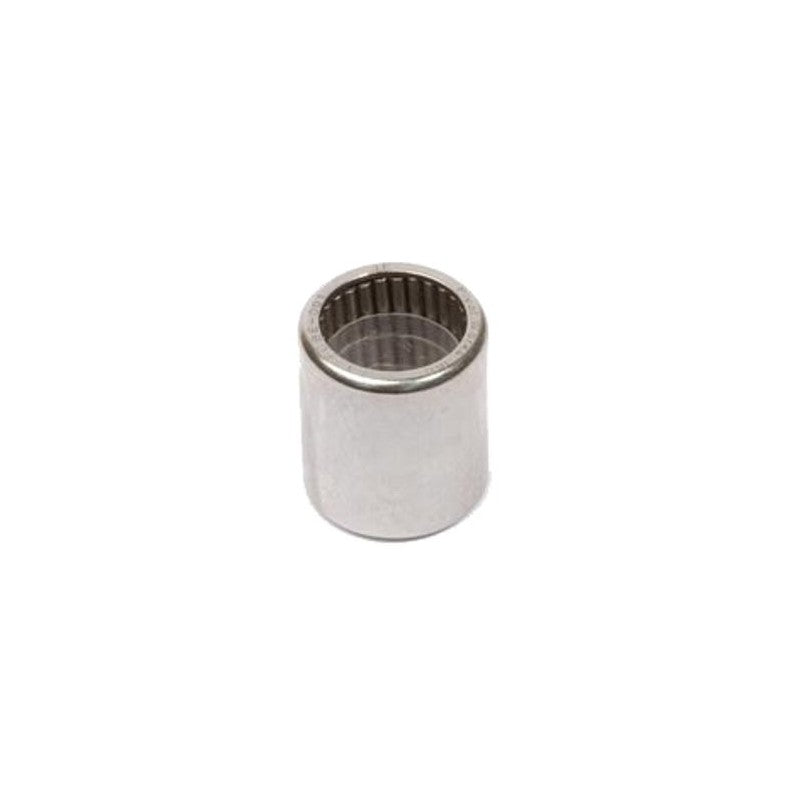

Needle Bearing – Fits Yamaha 8-20HP Outboards (Replaces 93315-314V8)
Product Details
This OEM-quality Needle Bearing – Fits Yamaha 8-20HP Outboards (Replaces 93315-314V8) serves as a direct replacement for the factory bearing. It is designed for a wide range of Yamaha outboard motors in the 8-20HP class, including 2-stroke and 4-stroke F-series and T-series models manufactured between 1986 and 2006.
This part is a direct cross-reference for Yamaha OEM part number 93315-314V8-00.
- Installation Location: Driver Shaft
- Engine Position: Outboard
- Housing Material: Chrome Steel/GCr15
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 93315-314V8-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This bearing fits a wide variety of Yamaha outboard motors produced from 1986 to 2006.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 15ELJ, 15ESJ, 15LJ, 15SJ | 15 | 2-Stroke | 1986 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELJ, 9.9ESJ, 9.9LJ, 9.9SJ | 9.9 | 2-Stroke | 1986 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 15ELH, 15ESH, 15LH, 15SH | 15 | 2-Stroke | 1987 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELH, 9.9ESH, 9.9LH, 9.9SH | 9.9 | 2-Stroke | 1987 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 15ELG, 15ESG, 15LG, 15SG | 15 | 2-Stroke | 1988 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELG, 9.9ESG, 9.9LG, 9.9SG | 9.9 | 2-Stroke | 1988 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | F9.9LG, F9.9SG | 9.9 | 4-Stroke | 1988 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 15ELF, 15ESF, 15LF, 15SF | 15 | 2-Stroke | 1989 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELF, 9.9ESF, 9.9LF, 9.9SF | 9.9 | 2-Stroke | 1989 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | F9.9LF, F9.9SF | 9.9 | 4-Stroke | 1989 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 15ELD, 15ESD, 15LD, 15SD | 15 | 2-Stroke | 1990 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELD, 9.9ESD, 9.9LD, 9.9SD | 9.9 | 2-Stroke | 1990 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | F9.9LD, F9.9SD | 9.9 | 4-Stroke | 1990 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 15ELHP, 15ESHP, 15MLHP, 15MSHP | 15 | 2-Stroke | 1991 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | 9.9ELHP, 9.9ESHP, 9.9MLHP, 9.9MSHP | 9.9 | 2-Stroke | 1991 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | F9.9MLHP, F9.9MSHP | 9.9 | 4-Stroke | 1991 | 93315-314V8-00 | Lower Drive Assembly |
| Yamaha | F8, F9.9, F13.5, F15, F20 | 8–20 | 4-Stroke | 1997–2006 | 93315-314V8-00 | Lower Casing Drive Assembly |
| Yamaha | T8 (Various suffixes) | 8 | 4-Stroke | 2001–2005 | 93315-314V8-00 | Lower Casing Drive Assembly |
| Yamaha | T9.9 (Various suffixes) | 9.9 | 4-Stroke | 2005–2006 | 93315-314V8-00 | Lower Casing Drive Assembly |
Technical Specs
- Product Type
- Needle Roller Bearing
- Installation
- Driver Shaft Bearing
- Fuel Type
- Gasoline
- Housing Material
- Chrome Steel/GCr15
- Housing Color
- Silvery/Metallochrome
- Product Dimensions
- Height: 1.5; Width: 6.0; Length: 7.0; 14mm Bore (Inner Diameter)
- Weight
- 50g (0.11 lb)
- Precision Rating
- P6
- Retainer
- Without
- Engine Position
- Outboard
- Engine Type
- 2-Stroke & 4-Stroke
- Origin
- Japan/Taiwan, China
- Other Technical Attributes
- Single Row Bearing
What’s in the Box
- 1 x Needle Bearing (93315-314V8-00)
Installation Notes
- Ensure the engine is off and the battery is disconnected.
- Drain the gearcase oil into an appropriate container.
- Remove the lower unit (gearcase assembly) from the outboard motor.
- Disassemble the lower unit to access the driver shaft and its housing.
- Using a bearing press or appropriate driver, carefully remove the old needle bearing.
- Clean the bearing seat thoroughly to remove any debris or corrosion.
- Press the new needle bearing into place, ensuring it is properly seated and aligned.
- Reassemble the driver shaft assembly and the lower unit in the reverse order of disassembly.
- Reinstall the lower unit onto the outboard and refill the gearcase with the correct type and amount of oil.
- Reconnect the battery and test the engine for proper operation at a safe speed.
Troubleshooting & FAQ
How can I confirm this bearing fits my specific Yamaha model?
The best method is to cross-reference your engine's model and year against the compatibility table above. You can also verify the OEM part number stamped on your old bearing; if it is 93315-314V8-00, this part is a direct replacement.
What are the signs of a failed driver shaft bearing?
Common symptoms include a grinding or whining noise from the lower unit, excessive vibration during operation, or the presence of metal shavings (a "metallic slurry") in the gearcase oil during a change. These signs indicate it's time to inspect the internal components.
Is there a recommended replacement interval for this bearing?
There is no fixed replacement interval; the bearing is designed to last for many years under normal operating conditions. It should be inspected whenever the lower unit is serviced and replaced if any signs of wear, corrosion, or damage are found.
What’s the difference between OEM and aftermarket parts?
This listing is for an aftermarket replacement, not an original equipment manufacturer (OEM) part. It has been engineered to meet or exceed OEM-level specifications using comparable high-quality materials. Our parts are manufactured in an ISO 9002 certified facility and are batch-inspected to ensure quality and consistency.
How fast is shipping and what does it cost?
We ship worldwide quickly, with a typical transit time of 5–15 days for most regions. Standard shipping is free. Expedited shipping options, where available, will be presented at checkout for an additional fee.
What warranty and return policies apply?
This part is covered by a 1-year warranty against manufacturing defects under normal use conditions. Should you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. Please see our full policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
