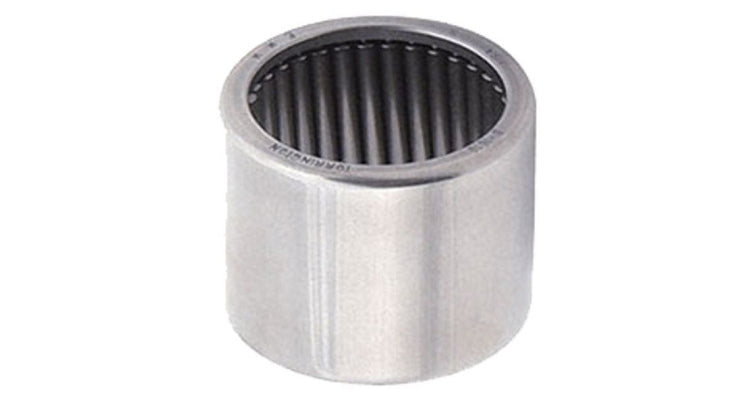

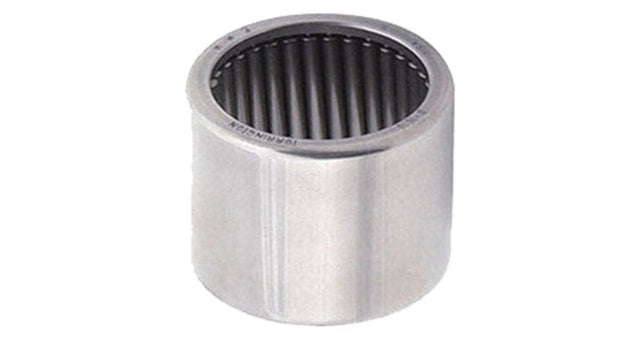

Needle Bearing – Fits Yamaha Outboard 50-90 HP (Replaces 93317-325U0)

Product Details

This aftermarket Needle Bearing is a crucial component for the lower casing and gearbox on a wide range of Yamaha outboards. It is designed to fit most Yamaha 2-Stroke outboards from 50 HP to 90 HP, covering models from 1984 through 2006 and later, including popular series like the 70TLR, 90TLR, F70LA, F75TLR, and F90TLR.

It serves as a direct replacement for Yamaha OEM part numbers 93317-325U0 and 93317-325U0-00, ensuring precise fitment and performance.

• Installation Location: Lower Casing / Gearbox (Cylinder #17 Application)
• Material: High-strength metal construction for durability
• Warranty: Includes a 1-year aftermarket warranty against manufacturing defects

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Engine & Model Compatibility

Confirm your engine model and year in the table below to ensure accurate fitment.

This bearing fits a wide variety of Yamaha engines. Please check for your specific model in the list.

Technical Specs

Product Type

Needle Bearing

Installation

Lower Casing / Gearbox

Material

Metal

Dimensions

7.0" L x 6.0" W x 3.0" H

Application

Cylinder #17

Warranty

1 year (aftermarket)

OEM Part Number

93317-325U0-00

What’s in the Box

• 1 x Needle Bearing (93317-325U0-00)

Installation Notes

1. Disconnect the battery and ensure the engine is secure.
2. Place a drain pan under the lower unit and remove the drain and vent plugs to empty the gearcase oil.
3. Remove the mounting bolts to detach the lower unit (gearbox) from the outboard's upper section.
4. Disassemble the gearcase components as required to access the propeller shaft and bearing housing.
5. Carefully extract the old needle bearing using an appropriate bearing puller or press. Avoid damaging the housing.
6. Thoroughly clean the bearing seat and inspect it for any scoring or damage.
7. Using a bearing press or a correctly sized driver, gently and evenly press the new needle bearing into the housing until it is fully seated.
8. Reassemble the gearcase components in reverse order, ensuring all seals and gaskets are correctly installed.
9. Reinstall the lower unit onto the outboard, tightening bolts to the manufacturer's specified torque.
10. Refill the gearcase with the recommended marine gear lubricant until it flows out of the upper vent hole, then reinstall both plugs.
11. Reconnect the battery and test the engine's operation in the water.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
