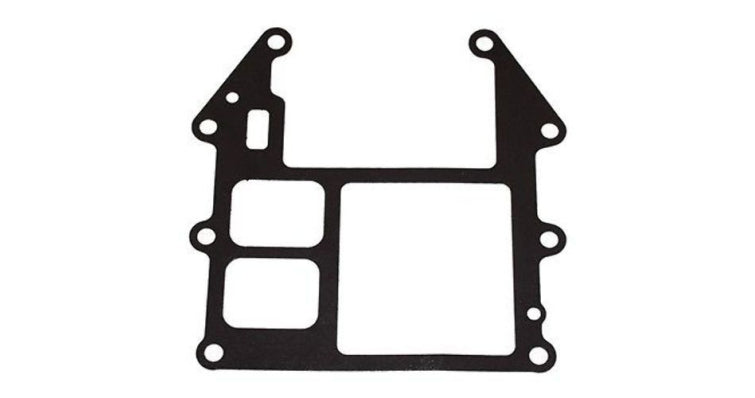

Upper Casing Gasket – Fits Yamaha 48HP & 55HP Outboard (Replaces 696-45113-A0-00/696-45113-00-00)
Upper Casing Gasket – Fits Yamaha 48HP & 55HP Outboard (Replaces 696-45113-A0-00/696-45113-00-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Upper Casing Gasket – Fits Yamaha 48HP & 55HP Outboard (Replace...
Product Details
This Upper Casing Gasket provides a reliable seal for the engine power head base on a range of Yamaha 48-55 HP 2-Stroke outboard engines, covering models from 1989 to 2000, including the C55, CV55, and E48 series. It is manufactured to meet or exceed original equipment specifications for lasting performance.
This part is a direct replacement for Yamaha OEM part numbers 696-45113-00-00 and 696-45113-A0-00.
- Installation Location: Engine Power Head Base
- Application: Outboard Marine Engines
- Material: High-Grade, OEM-Specification Gasket Material
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 696-45113-00-00 | 696-45113-A0-00 | Original part number. |
| Yamaha | 696-45113-A0-00 | - | Current revision. This part replaces both numbers. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is designed for the following Yamaha outboard models:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | C55ELRP | 55 | 2-Stroke | 1991 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55ELRQ | 55 | 2-Stroke | 1992 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55ELRR | 55 | 2-Stroke | 1993 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55ELRS | 55 | 2-Stroke | 1994 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55ELRT | 55 | 2-Stroke | 1995 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55TLRR | 55 | 2-Stroke | 1993 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55TLRS | 55 | 2-Stroke | 1994 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | C55TLRT | 55 | 2-Stroke | 1995 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | CV55ELD | 55 | 2-Stroke | 1990 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | CV55ELF | 55 | 2-Stroke | 1989 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHT | 48 | 2-Stroke | 1995 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHU | 48 | 2-Stroke | 1996 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHV | 48 | 2-Stroke | 1997 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHW | 48 | 2-Stroke | 1998 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHX | 48 | 2-Stroke | 1999 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
| Yamaha | E48MLHY | 48 | 2-Stroke | 2000 | 696-45113-A0-00 | Supersedes 696-45113-00-00 |
Technical Specs
- Product Type
- Upper Casing Gasket
- Installation
- Engine Power Head Base
- Material
- OEM Specification
- Application
- Outboard Marine Engine
- Product Dimensions
- 31.0 cm x 21.0 cm x 0.5 cm (L x W x H)
- Weight
- 0.11 kg (0.25 lbs)
What’s in the Box
- 1 x Gasket, Upper Casing (Replaces 696-45113-A0-00)
Installation Notes
- Disconnect the battery and all fuel/electrical connections to the engine.
- Carefully remove the engine cowling to access the power head.
- Systematically unbolt and remove the power head from the engine's midsection (drive shaft housing).
- Remove the old, worn upper casing gasket. Thoroughly clean both mating surfaces, ensuring they are free of old gasket material, corrosion, and debris.
- Place the new gasket into position, confirming all bolt holes are correctly aligned.
- Carefully lower the power head back onto the midsection.
- Tighten the power head bolts in the sequence and to the torque values specified in your engine's service manual.
- Reconnect all fuel and electrical systems, reinstall the cowling, and test the engine in a suitable water environment, checking for any leaks.
Troubleshooting & FAQ
How do I know if this gasket fits my Yamaha outboard?
This gasket is designed for specific Yamaha 48HP and 55HP 2-stroke models produced between 1989 and 2000. To ensure a perfect match, please consult the 'Engine & Model Compatibility' table on this page and cross-reference your engine's model number and year.
What are the signs of a failed upper casing gasket?
A faulty upper casing gasket can lead to a variety of symptoms, including water in the engine cylinders, engine overheating, loss of compression, poor performance, or visible water/exhaust leaks from the seam between the power head and the drive shaft housing.
Should I use sealant with this gasket?
Generally, this gasket is designed to be installed dry without any additional sealants. Applying sealant can interfere with proper seating and torquing. Always follow the specific recommendations in your engine's service manual for the final word on sealants.
What is the difference between part number 696-45113-00-00 and 696-45113-A0-00?
Part number 696-45113-A0-00 is the newer, superseding version of 696-45113-00-00. They are functionally identical and fully interchangeable, with the 'A0' version representing a later production run or minor revision. Our aftermarket part replaces both versions.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
