Product Details
This Water Pump Impeller Repair Kit provides everything needed for a complete service of the lower unit water pump. It is designed for a wide range of Yamaha 4-Stroke outboard engines from 75 HP to 115 HP (2002 and newer), including the popular F75, F90, F115, and VF115 models.
The kit serves as a direct replacement for Yamaha OEM part numbers 68V-W0078-00-00, 68V-W0078-01-00, and 68V-W0078-02-00, as well as Sierra 18-3442 and Mallory 9-48611.
- Engineered for direct-fit installation, simplifying the repair process.
- Constructed from high-quality, marine-grade materials comparable to OEM standards.
- Includes all essential gaskets, O-rings, and hardware for a comprehensive overhaul.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Yamaha | 68V-W0078-00-00 |
| Yamaha | 68V-W0078-01-00 |
| Yamaha | 68V-W0078-02-00 |
| Sierra | 18-3442 |
| Mallory | 9-48611 |
Engine & Model Compatibility
Confirm your engine model and year in the table below.
This kit is designed for select Yamaha 4-stroke outboard motors.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75 | 75 | 4-Stroke | 2006–Up | 68V-W0078-00-00 | |
| Yamaha | F90 | 90 | 4-Stroke | 2006–Up | 68V-W0078-00-00 | |
| Yamaha | VF90 | 90 | 4-Stroke | 2006–Up | 68V-W0078-00-00 | |
| Yamaha | F115 | 115 | 4-Stroke | 2002–Up | 68V-W0078-00-00 | |
| Yamaha | FL115 | 115 | 4-Stroke | 2002–Up | 68V-W0078-00-00 | |
| Yamaha | LF115 | 115 | 4-Stroke | 2002–Up | 68V-W0078-00-00 | |
| Yamaha | VF115 | 115 | 4-Stroke | 2002–Up | 68V-W0078-00-00 | |
| Yamaha | F130 | 130 | 4-Stroke | 2021–Up | 68V-W0078-00-00 | Compatibility noted by GHmarine; verify your OEM part number. |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct replacement
- Housing Material
- OEM-quality marine grade materials
- Kit Weight
- 0.4 kg (0.88 lb)
- Other Technical Attributes
- Includes all necessary gaskets, O-rings, and hardware for complete repair

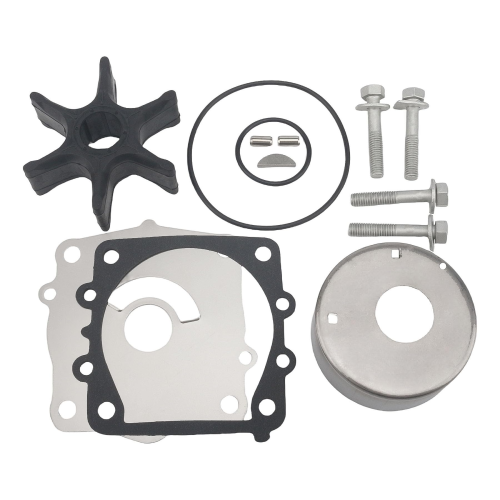

What’s in the Box
- 1 x Water Pump Impeller (6E5-44352-00-00)
- 1 x Water Pump Housing Insert Cup (61A-44322-01-00)
- 1 x Water Pump Base Outer Plate (68V-44323-00-00)
- 1 x Water Pump Gasket (6E5-44315-00-00)
- 1 x O-Ring (93210-37160-00)
- 1 x O-Ring (93210-86M38-00)
- 1 x Impeller Key (90280-04M05-00)
- 2 x Dowel Pins (93606-12019-00)
- 4 x Bolts (91290-08045-00)
- 4 x Washers (90209-08M02-00)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Drain the lower unit's gearcase oil into a suitable container.
- Remove the bolts securing the lower unit (gearcase) to the upper casing and carefully lower it.
- Unbolt and remove the water pump housing to access the impeller.
- Remove the old impeller, key, gaskets, and wear plates. Note their orientation.
- Clean all mating surfaces thoroughly, removing any old gasket material or corrosion.
- Install the new base gasket, outer plate, insert cup, and impeller key.
- Slide the new impeller into place, turning the driveshaft clockwise to seat the vanes correctly.
- Install new O-rings and gaskets on the housing and reassemble. Torque bolts to manufacturer specifications.
- Reinstall the lower unit, refill with fresh gear oil, and test the engine using a water supply (flusher).
Troubleshooting & FAQ
How do I know if the water pump needs replacing?
Common signs of a failing water pump include the engine overheating at low speeds, a weak or non-existent water stream from the "tell-tale" outlet, or finding cracked, brittle, or worn impeller vanes during a visual inspection.
How often should this kit be used for maintenance?
For preventative maintenance, it's recommended to inspect the water pump impeller annually and replace it every 1-2 years or 100-200 hours of operation, whichever occurs first. This interval can vary based on usage conditions (e.g., saltwater vs. freshwater).
Will this kit fit my Yamaha F130 model?
Compatibility with the Yamaha F130 (2021 and newer) is suggested by some aftermarket sources, but it is not universally confirmed. We strongly recommend you verify the OEM part number (68V-W0078-00-00) required for your specific engine before purchasing.
What is the difference between this aftermarket kit and the OEM version?
This kit is manufactured to meet or exceed original equipment specifications using comparable high-quality materials. It provides a reliable and cost-effective alternative to OEM parts without compromising on fitment or function.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement component, not an original equipment manufacturer (OEM) part.
- Professional installation is recommended for safety and optimal performance.
