18-3016 Water Pump Impeller Kit with Housing for Yamaha 4 5 HP F4 (...
Product Details
- SKU:183016
- Brand & Manufacturer: SeaSierra
- Category: Boat Motor Engine Parts
- Part Type: Water Pump Impeller Repair Kit
- Item Weight: 0.55
- Package Dimensions: HEIGHT: 2.7, DEPTH: 2.8, WIDTH: 3.9
Compatibility
This kit is compatible with the following Yamaha and Mariner Outboard models:
2 Stroke:
- Yamaha 4 HP: 1984-1999
- Yamaha 5 HP: 1984-2002
4 Stroke:
- Yamaha 4 HP F4: 1999-2001, 2002-2008
- Mariner 4HP & 5HP: 96325T 96325M (Only with Serial Number 6E0 & 6E3)
- Mariner 4 HP 4A(6E0): All
- Mariner 5 HP 5C(6E3): All
Part Numbers and Replacements
- Replaces OEM Part Numbers: 6E0-W0078-A2-00, 6E0-W0078-00, 6E0-W0078-02, 68D-WG078-00-00, and others as listed in the cross-reference.

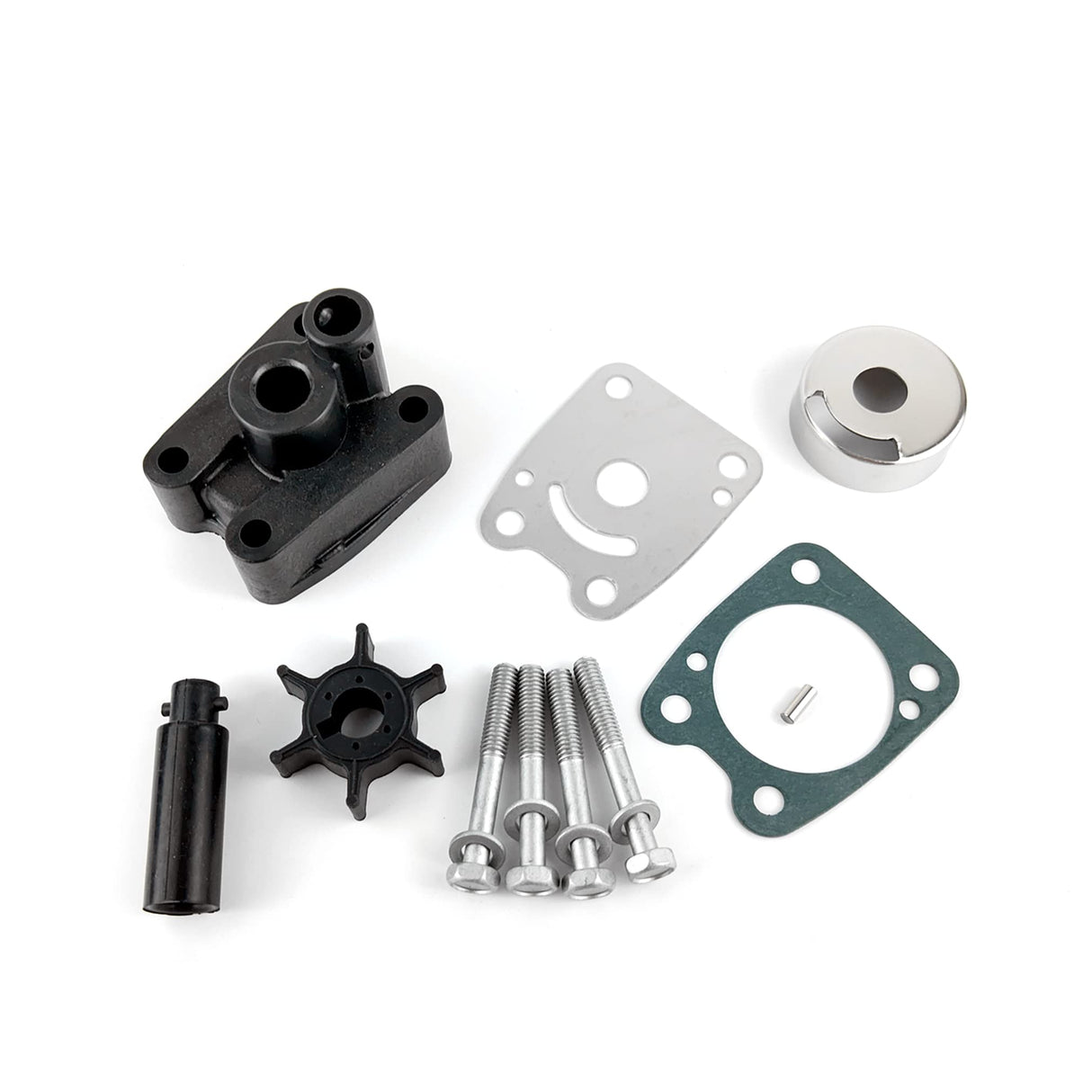

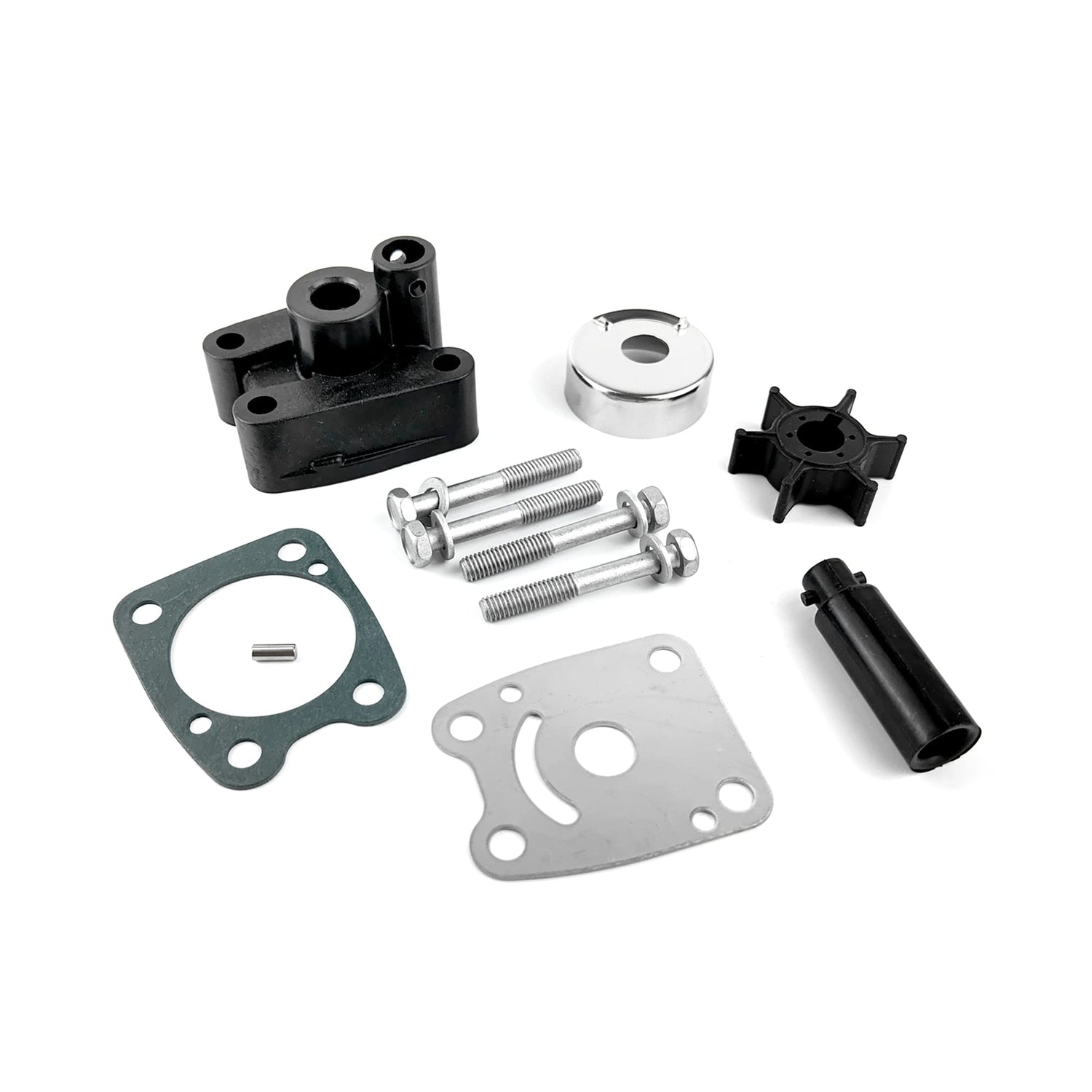

Kit Components
The package includes the following items:

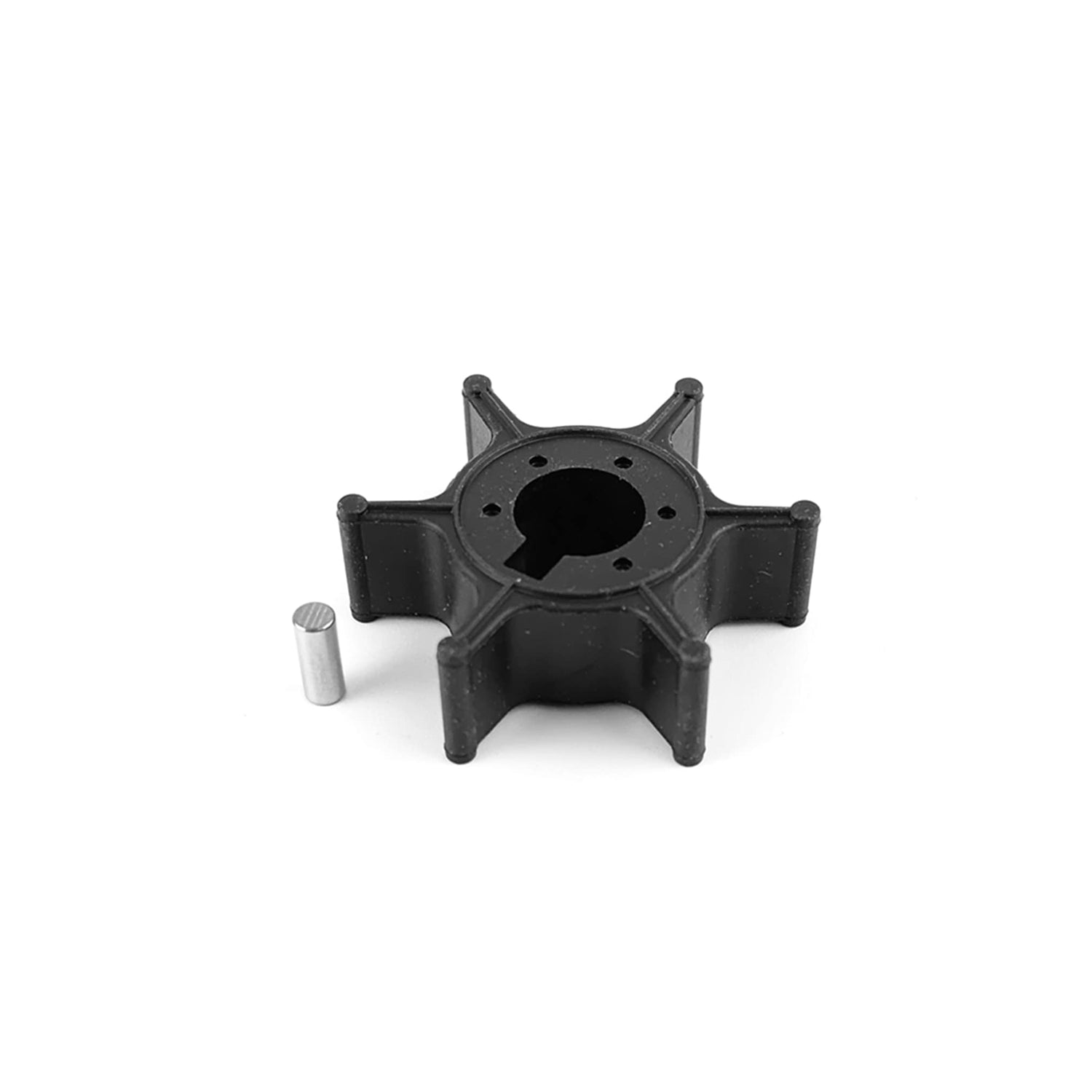

- Water Pump Impeller (6E0-44352-00-00)

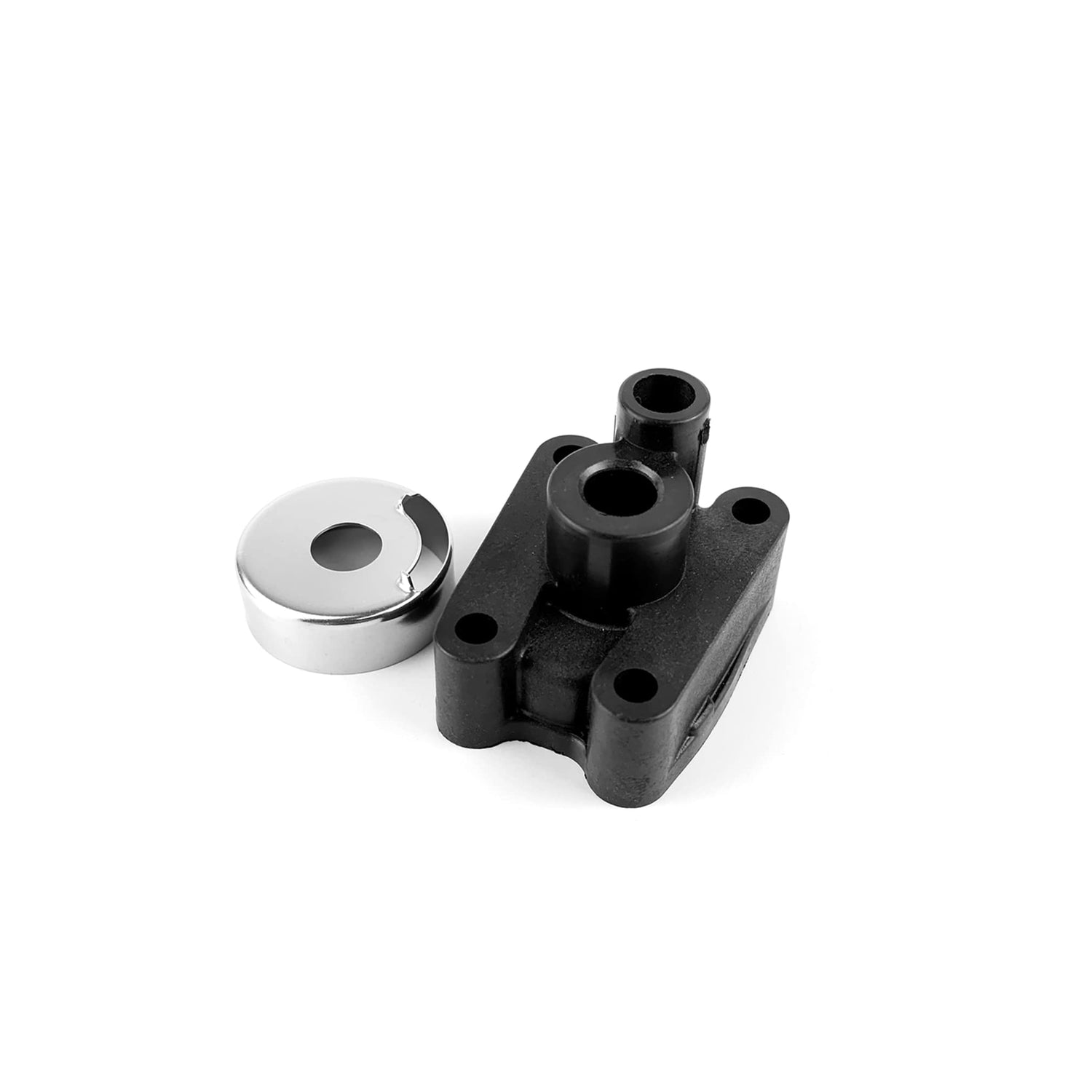

- Water Pump Housing (68D-G4311-01-00)
- Cartridge Insert (6E0-44322-02-00)

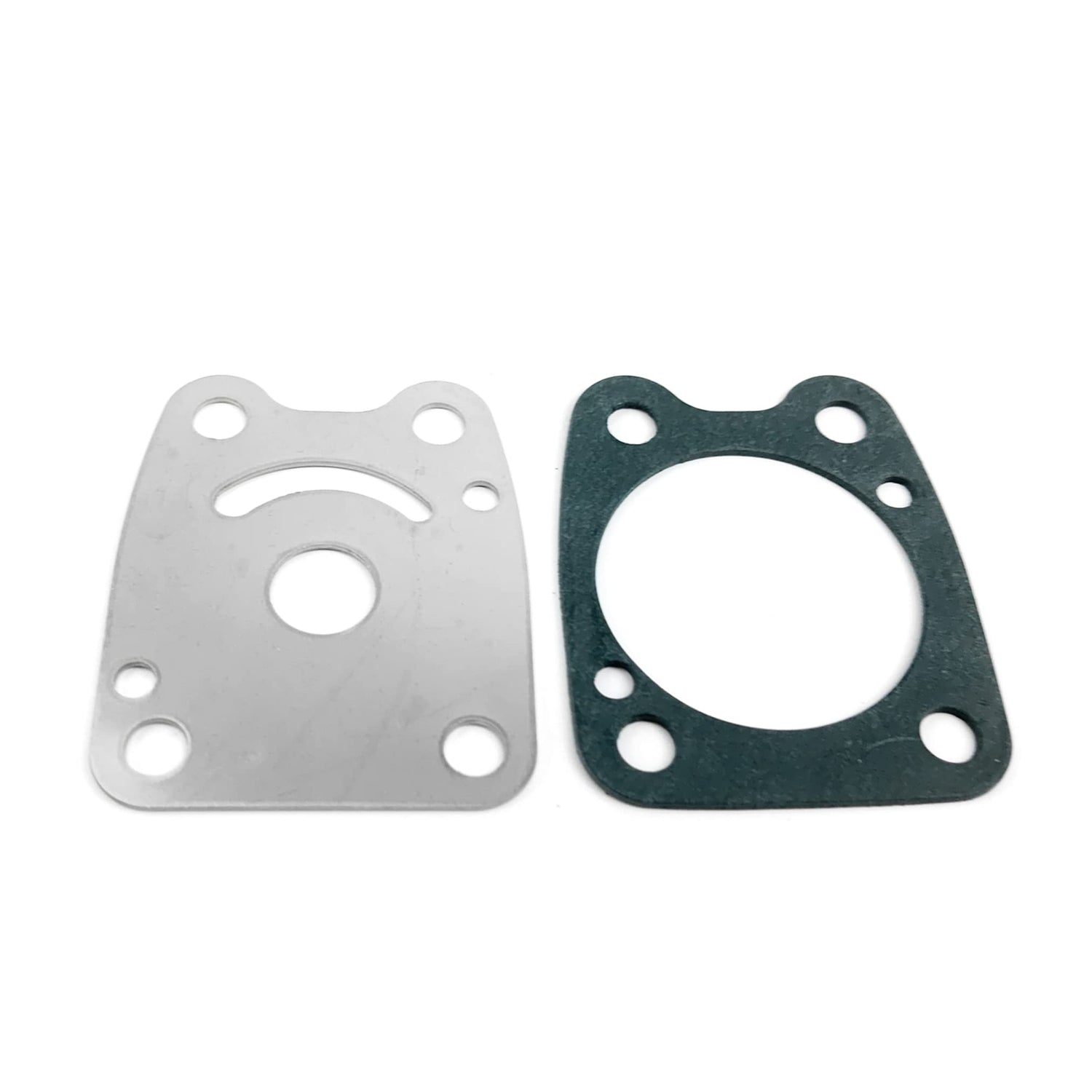

- Outer Plate (6E0-44323-00-00)
- Gasket, Water Pump (68D-G4315-A0-00)
- Dowel Pin (93604-18080-00) - 2 pieces
- Water Damper Seal (67D-44366-00-00)

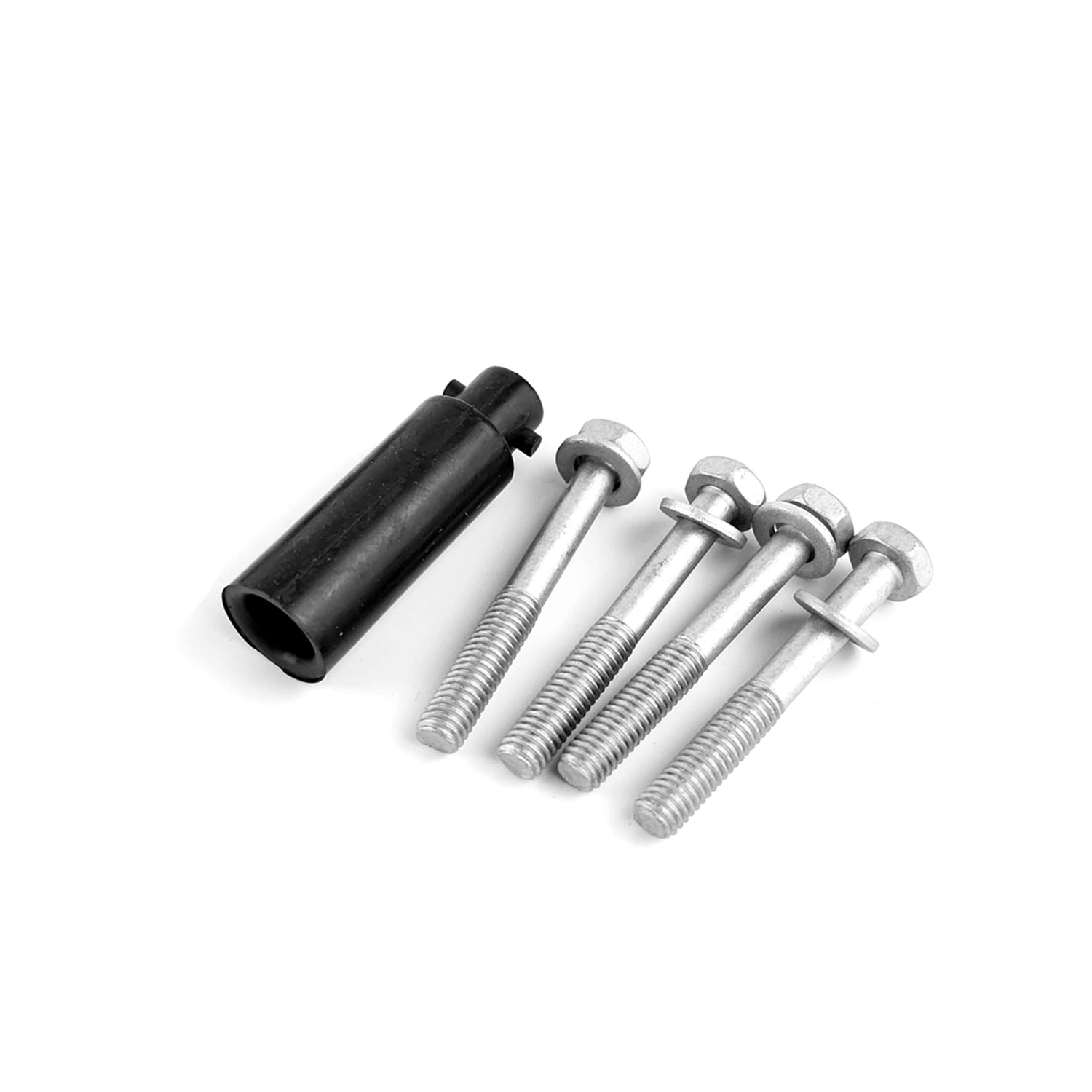

- Bolt (97095-06045-00) - 4 pieces
- O-Ring
Additional Information
- Materials: The kit is made from the strongest marine and chemical corrosion-resistant metal alloy and scientifically engineered high-performance neoprene rubber.
- Important: It's crucial to check your outboard model or s/n before purchase. If unsure, you can leave messages with your boat engine model, horsepower, or year.
- Packaging Dimensions: WEIGHT: 0.55, HEIGHT: 2.7, DEPTH: 2.8, WIDTH: 3.9
- UPC: 808282199937
- HSC: 401699
- ECCN: 4016.99.6050
- Mallory: 9-45310, 9-45310-10
- Mercruiser Stern Drive: 47-862232A2, 47-8M0104229
