18-3442 68V-W0078-00-00 Water Pump Repair Kit Replacement for Yamaha Marine Outboard Engine 75/90/115 HP (F75B, F90B, F115, LF115, VF115) | SeaSierra

Sale price $19.00 Regular price $35.00
Shipping calculated at checkout.


Worry-free returns

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at sierrapartsi@gmail.com, and we’ll get back to you within 20–36 hours.

Product Details

  • Brand: SeaSierra
  • Material: This rebuild impeller kit is made of high-quality marine and chemical corrosion-resistant metal alloy and high-performance neoprene rubber.
  • Vehicle Service Type: Yamaha Outboard 4 stroke, 2002 & UP
  • SKU: 183442

Compatibility

This kit is compatible with the following Yamaha Four Stroke Outboard models:

  • 75 HP (F75B): 2017
  • 90 HP (F90B): 2016-2017
  • 90 HP (VF90A): 2018
  • 115 HP (F115): 2002-2017
  • 115 HP (LF115): 2002-2017
  • 115 HP (VF115): 2015-2017

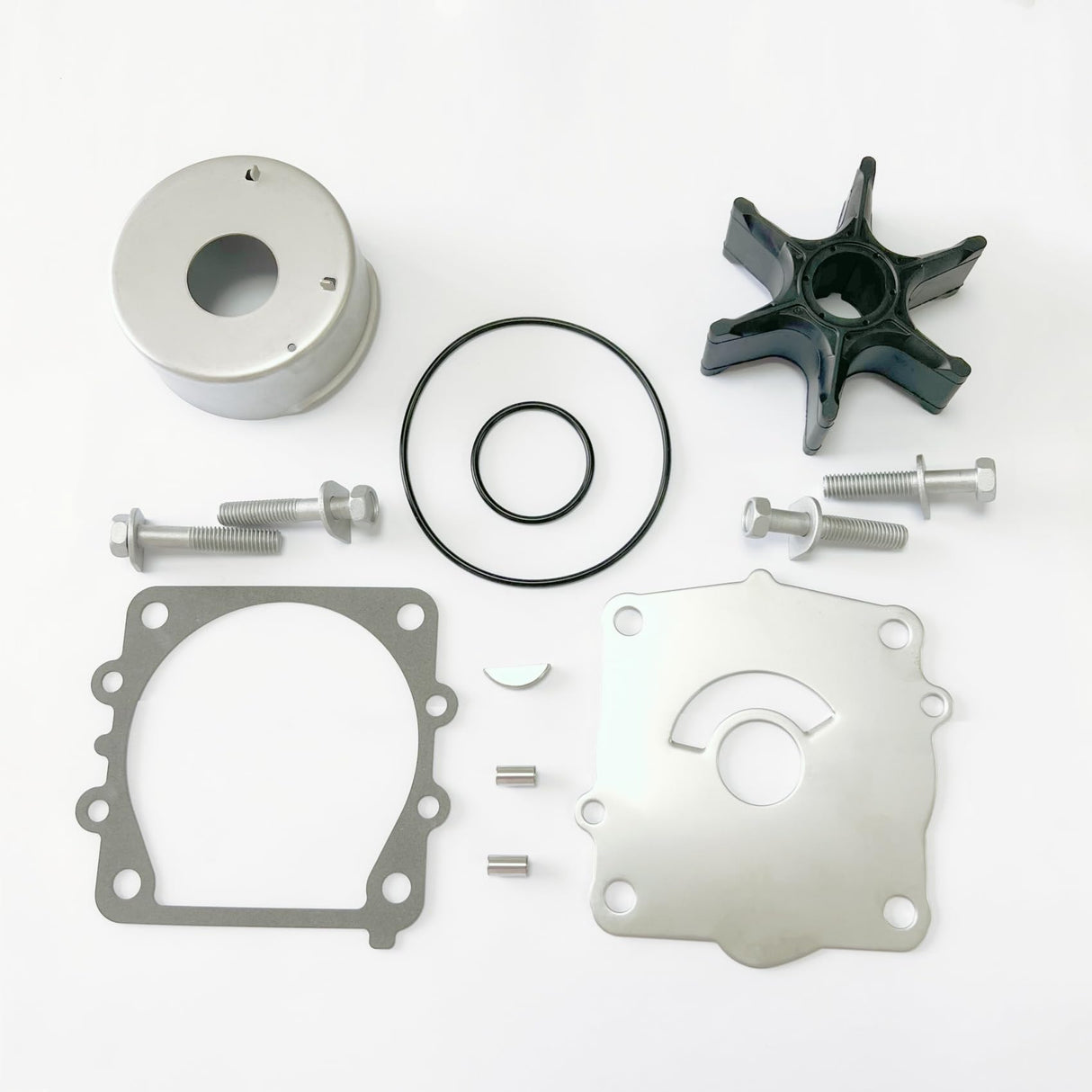

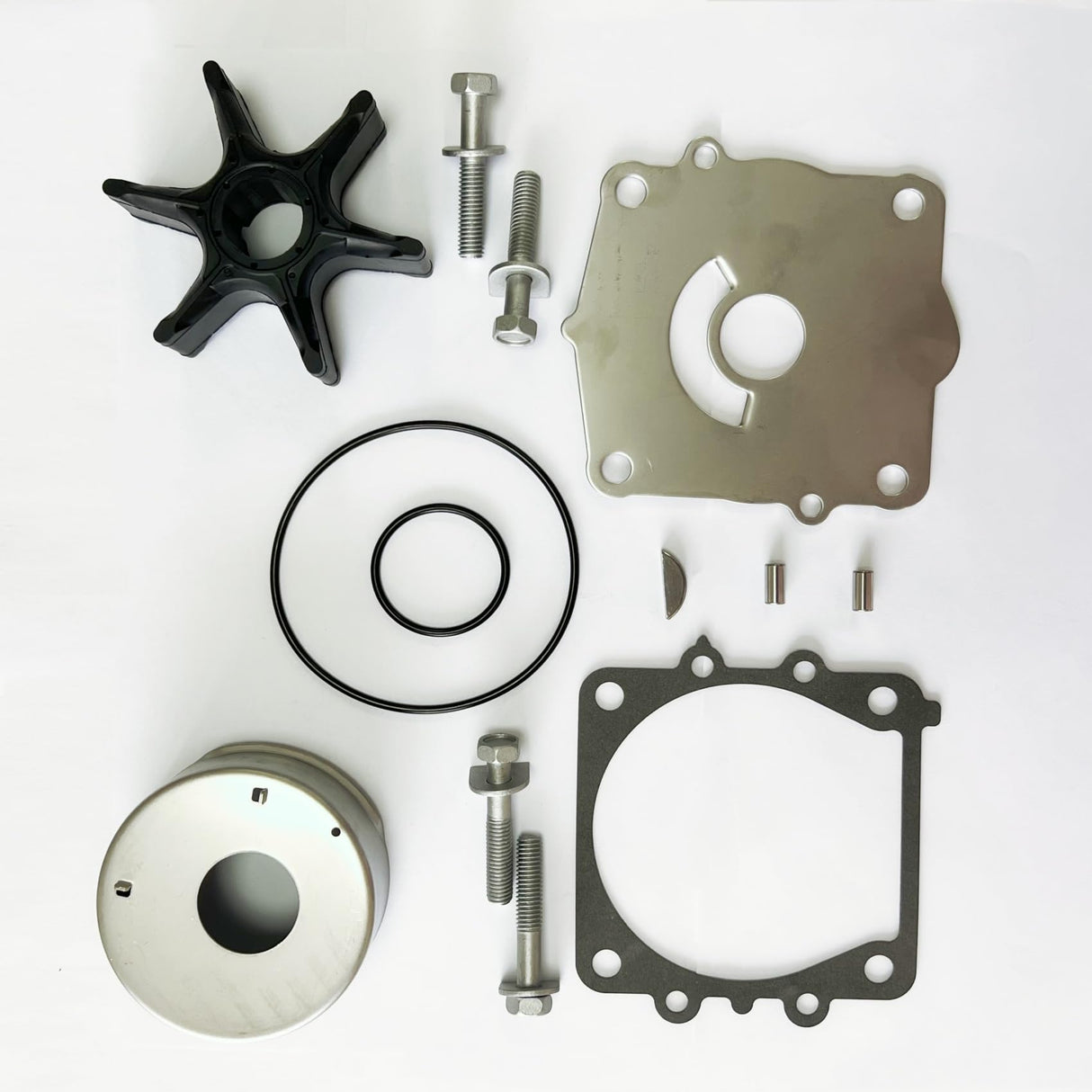

Kit Components

The package includes the following items:

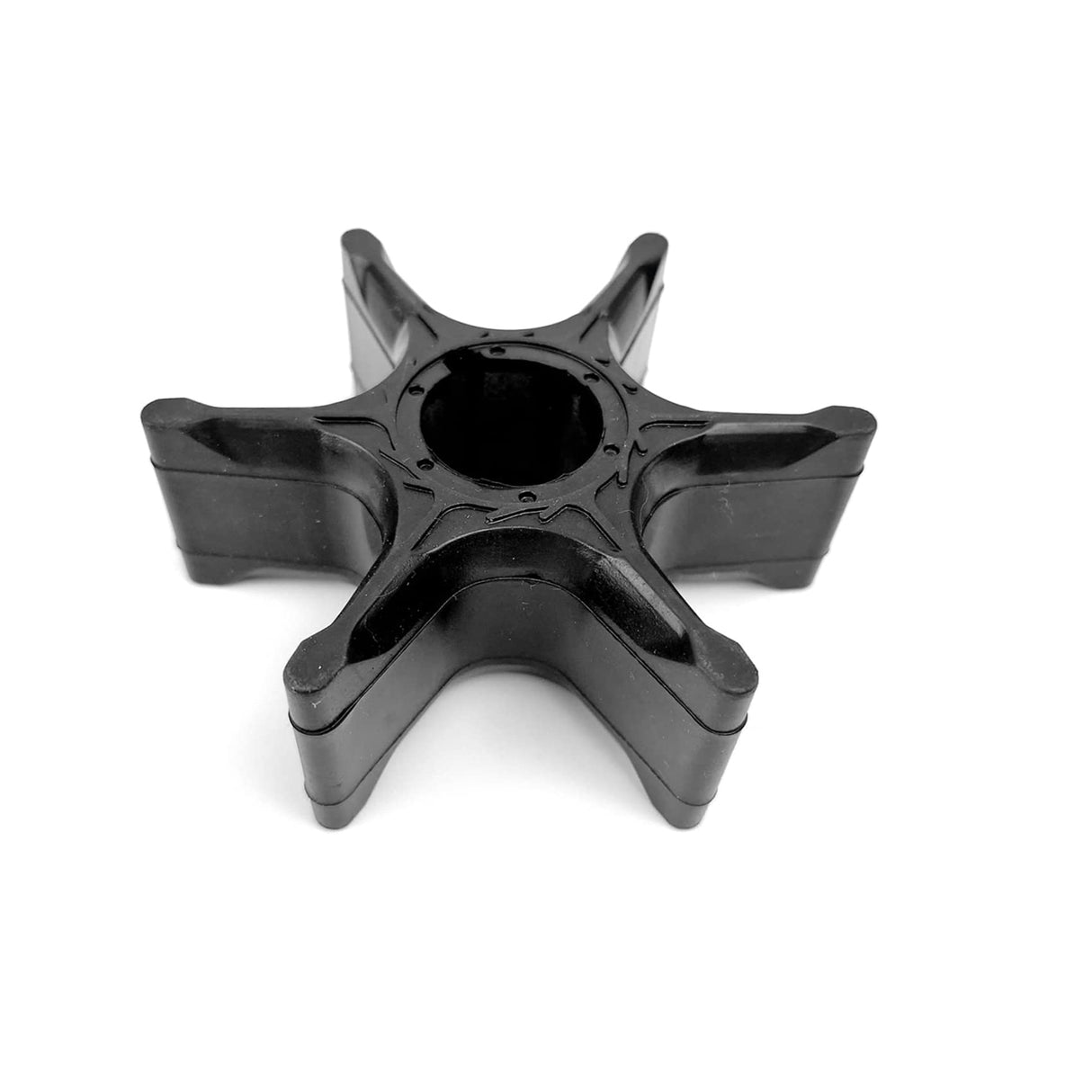

  1. Water Pump Impeller (6E5-44352-01-00)
  2. Woodruff Key (90280-04M05-00)
  3. Water Pump Gasket (6E5-44315-A0-00)

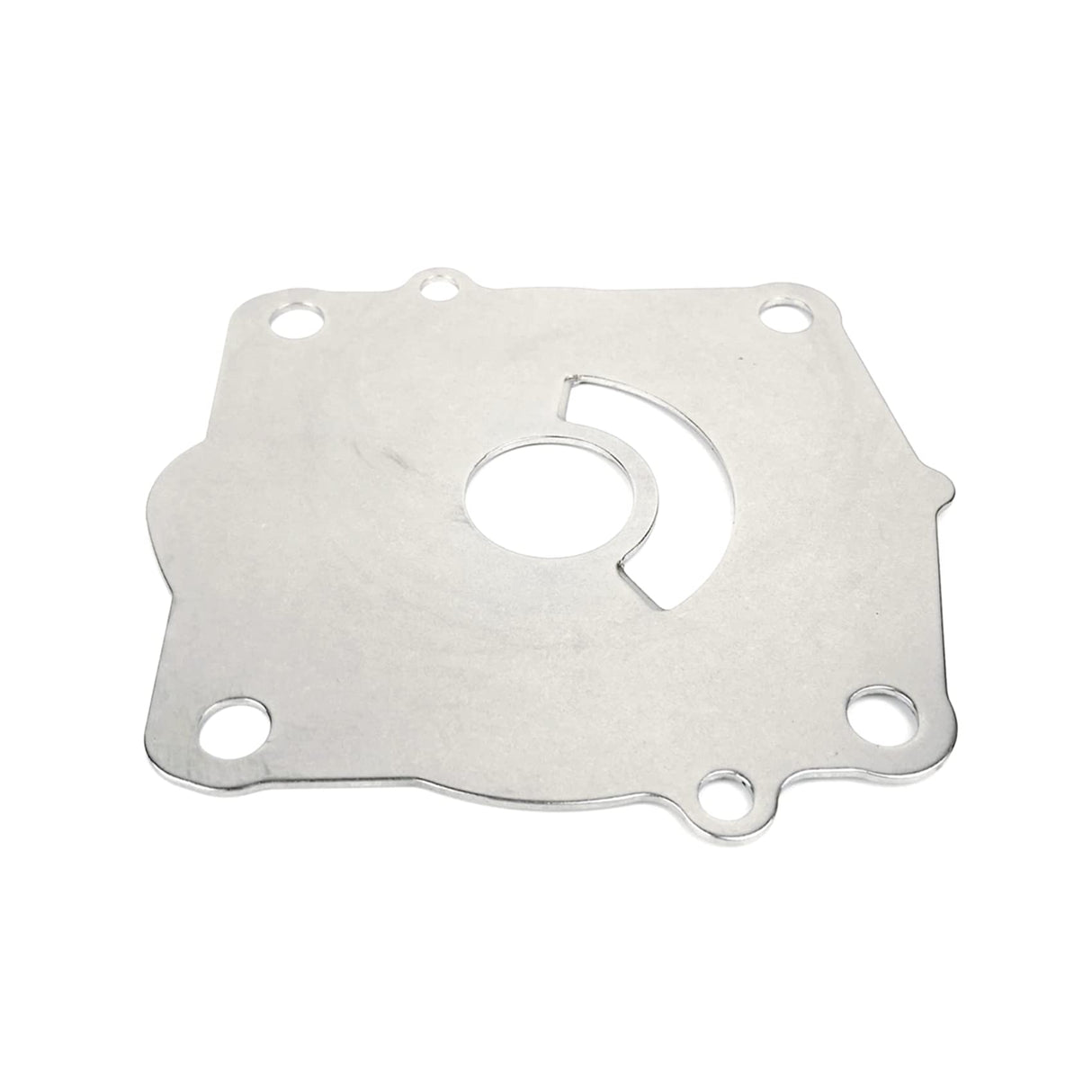

  4. Outer Plate, Cartridge (68V-44323-00-00)

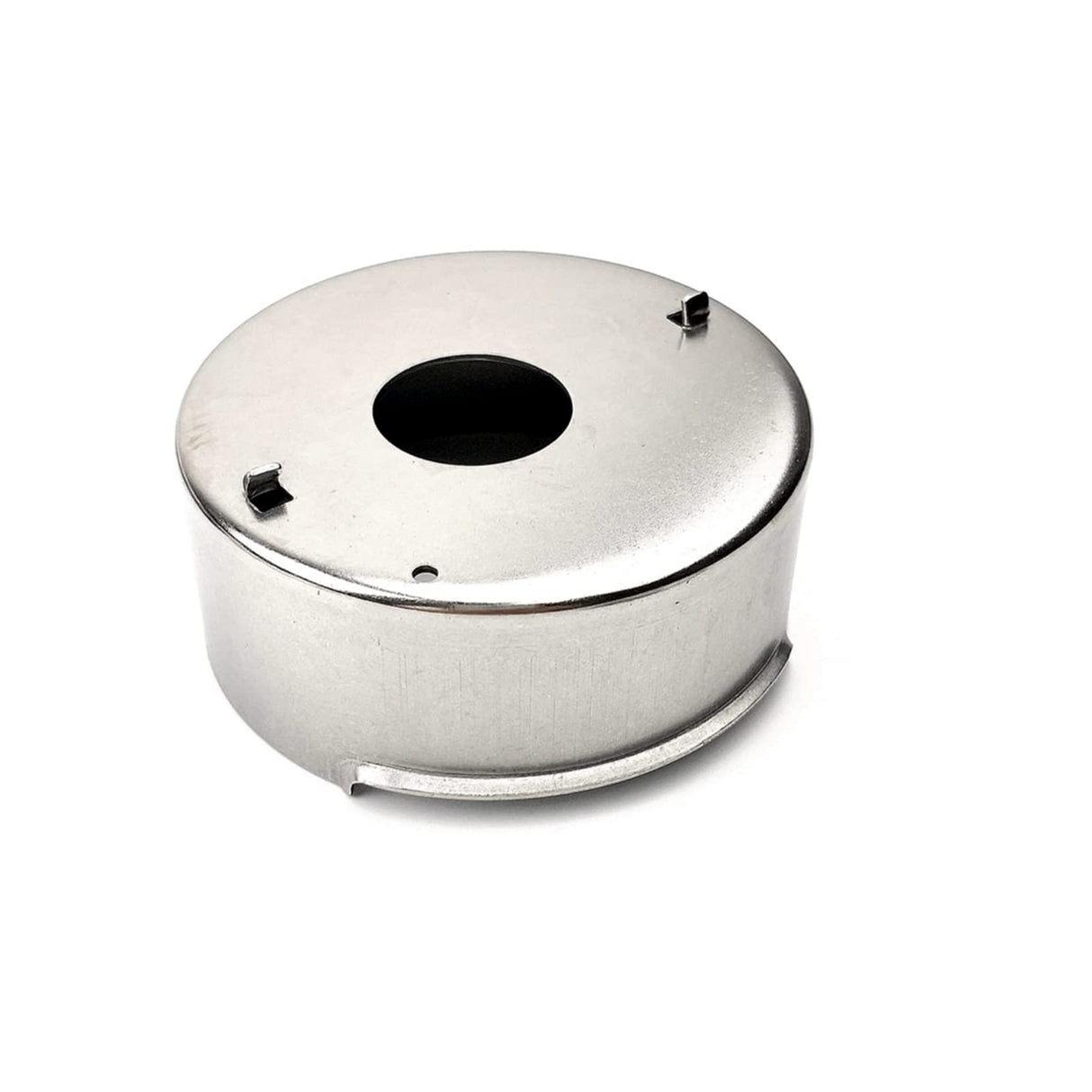

  5. Cartridge Insert (61A-44322-02-00)

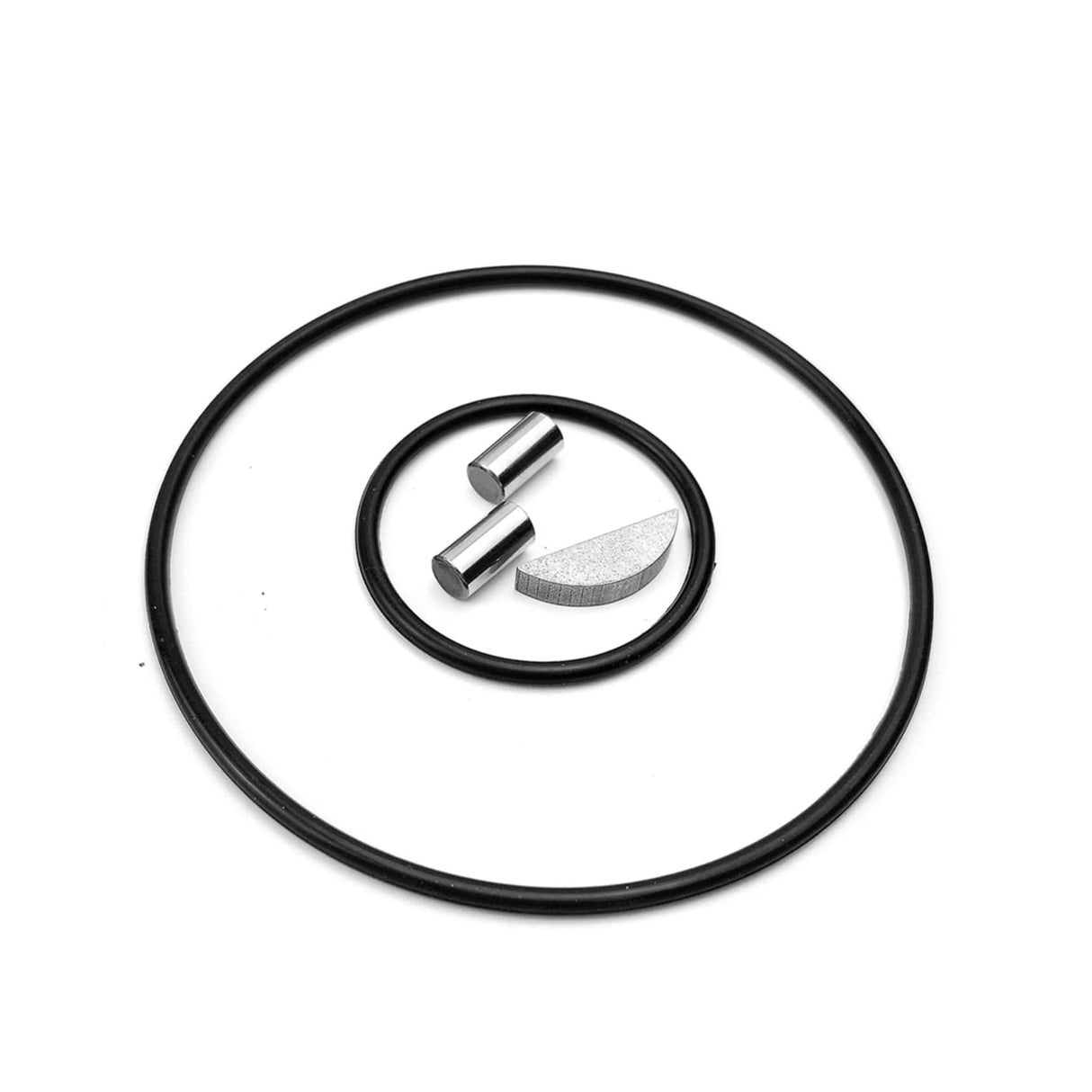

  6. Dowel Pin (93606-12019-00) x 2
  7. O-Ring (93210-37M67-00)
  8. O-Ring (93210-86M38-00)
  9. Bolt with Washer (90119-08M14-00) x 4
  10. Additional Gaskets and O-Rings as shown in pictures

Part Numbers and Replacements

  • Part Number: 68V-W0078-00-00
  • Replaces: 68V-W0078-01-00, 68VW00780100, 68V-W0078-00-00, 68VW00780000, Sierra 18-3342, 18-3523-1
  • Equivalent to: 18-3523-1 (without housing)
  • Additional Information: Please check your outboard model, serial number, and year before purchase. If unsure, feel free to ask us any questions for clarification.

Installation Instructions

Lubricate with silicone grease, glycerin, or dish soap when installing (not included). Refer to your owner's manual for the replacement schedule and your service manual for installation instructions.
