Product Details

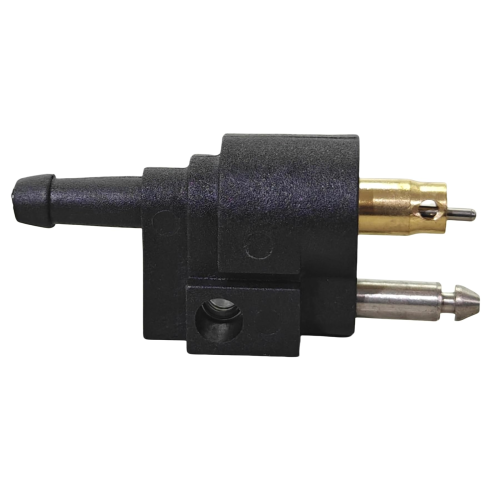

This is a 6mm (1/4") Male Fuel Line Connector designed for the engine side of various Yamaha 2-stroke and 4-stroke outboard motors from 6–90 HP (1984–Present). It ensures a secure, leak-free fuel supply connection for reliable engine performance.
This part directly replaces Yamaha OEM part numbers 6G1-24304-01, 6G1-24304-02-00, 6G1-24304-10, and 6G1-24304-10-00.
- Installs on the engine side of the fuel line.
- Constructed from durable, marine-grade ABS plastic.
- Resistant to degradation from ethanol-blended gasoline.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6G1-24304-01 |
| Yamaha | 6G1-24304-02-00 |
| Yamaha | 6G1-24304-10 |
| Yamaha | 6G1-24304-10-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This connector is verified for a wide range of Yamaha outboard motors. Check the specific models and years listed to ensure a precise match.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 2-Stroke | 6 | 2-Stroke | 1986–1993, 2001–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 8 | 2-Stroke | 1984–1993, 2001–2005 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 9.9 | 2-Stroke | 1985–1993, 1998–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 15 | 2-Stroke | 1986–1993, 1998–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 25 | 2-Stroke | 1985–1993, 1999–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 30 | 2-Stroke | 1985–1994, 1999–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 40 | 2-Stroke | 1985–1993, 1999–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 48 | 2-Stroke | 2000 | 6G1-24304-01/02/10 | E48 model |
| Yamaha | 2-Stroke | 50 | 2-Stroke | 1984–1993, 1999–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 55 | 2-Stroke | 1989–1993 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 60 | 2-Stroke | 1991–1993, 2000–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 70 | 2-Stroke | 1985–1993, 2000–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 75 | 2-Stroke | 2000 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 85 | 2-Stroke | 1989–1993 | 6G1-24304-01/02/10 | |
| Yamaha | 2-Stroke | 90 | 2-Stroke | 1985–1993, 2000–2003 | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke F9.9 | 9.9 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke F15 | 15 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke | 20 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke | 25 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke | 30 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 | |
| Yamaha | 4-Stroke | 40 | 4-Stroke | 1984–Present | 6G1-24304-01/02/10 |
Technical Specs
- Product Type
- Male Fuel Line Connector
- Installation
- Engine Side
- Fuel Type
- Gasoline
- Connection
- 6mm (1/4") Fuel Hose
- Housing Material
- ABS (Acrylonitrile Butadiene Styrene)
- Housing Color
- Black
- Dimensions
- 72 × 30 mm (2.83" × 1.18")
- Weight
- 0.04 kg (1.44 oz)
- Fitting Type
- Quick-Connect
- Warranty
- 30 days (based on retailer policies)
- Other Technical Attributes
- Marine-grade construction, resistant to ethanol-blended fuels
What’s in the Box
- 1 × Male Fuel Line Connector (6G1-24304-01/6G1-24304-02/6G1-24304-10)
Installation Notes
- Ensure the engine is off and the fuel system is depressurized.
- Disconnect the existing female fuel line connector from the male fitting on the engine.
- Carefully remove the old male connector from the engine's fuel inlet, noting its orientation.
- Clean the fuel inlet area on the engine to ensure a good seal.
- Install the new male connector, ensuring it is securely seated.
- Reconnect the main fuel line's female connector to the new male fitting.
- Prime the fuel system according to your motor's specifications and check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this connector fits my motor?
This connector fits a wide range of Yamaha 6–90 HP motors (1984–Present). The best way to confirm is to check your model and year against the compatibility table on this page. Also, verify that your current part number is listed in our Part Number Matrix (e.g., 6G1-24304-01, 6G1-24304-02, etc.).
Is this for the engine side or the fuel tank side?
This is a male connector designed for the engine side of the fuel line system.
What are signs that my current fuel connector is failing?
Common signs include visible fuel leaks or a smell of gasoline around the engine, difficulty starting, stalling, or sputtering at various speeds. A cracked or brittle connector housing is also a clear indication that a replacement is needed.
How often should fuel line components be replaced?
As a general maintenance practice, it is wise to inspect all fuel line components, including connectors, annually. Replace them every 3–5 years or immediately if you notice any signs of wear, cracking, or leakage, especially in harsh saltwater environments.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
