Carburetor Rebuild Kit – Fits Yamaha 225HP/250HP 3.1L Two-Stroke (Replaces 61A-W0093-01-00)
Carburetor Rebuild Kit – Fits Yamaha 225HP/250HP 3.1L Two-Stroke (Replaces 61A-W0093-01-00) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Carburetor Rebuild Kit – Fits Yamaha 225HP/250HP 3.1L Two-Stroke (R...
Carburetor Rebuild Kit – Fits Yamaha 225HP/250HP 3.1L Two-Stroke (Replaces 61A-W0093-01-00) is backordered and will ship as soon as it is back in stock.
Product Details
This Carburetor Rebuild Kit – Fits Yamaha 225HP/250HP 3.1L Two-Stroke (Replaces 61A-W0093-01-00) provides all essential components to restore the performance of your marine engine. It is designed for a wide range of Yamaha Outboard 225-250 HP, 2-Stroke models manufactured between 1990 and 1996, including the C/CET, A/AET, and B series.
The kit serves as an aftermarket cross-reference for multiple OEM part numbers, including Yamaha 61A-W0093-00-00, 61A-W0093-01-00, and their variants.
- Engineered as a direct OEM-quality replacement for easy installation.
- Specifically designed for 3.1L displacement two-stroke engines.
- Includes all necessary gaskets, seals, and valves for one carburetor service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 61A-W0093-01-00 |
| Yamaha | 61A-W0093-00-00 |
| Yamaha | 61AW00930100 |
| Yamaha | 61AW00930000 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is verified to fit the following Yamaha Outboard models:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 225C/CET | 225 | 2-Stroke | 1994–1995 | 61A-W0093-01-00 | |
| Yamaha | 250A/AET | 250 | 2-Stroke | 1992–2006 | 61A-W0093-01-00 | |
| Yamaha | 250B | 250 | 2-Stroke | 1995–2002 | 61A-W0093-01-00 | |
| Yamaha | 225TXRS | 225 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | 225TXRT | 225 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | 225TURT | 225 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | 250TURP | 250 | 2-Stroke | 1991 | 61A-W0093-01-00 | |
| Yamaha | 250TURQ | 250 | 2-Stroke | 1992 | 61A-W0093-01-00 | |
| Yamaha | 250TURR | 250 | 2-Stroke | 1993 | 61A-W0093-01-00 | |
| Yamaha | 250TURS | 250 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | 250TURT | 250 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | 250TXRP | 250 | 2-Stroke | 1991 | 61A-W0093-01-00 | |
| Yamaha | 250TXRQ | 250 | 2-Stroke | 1992 | 61A-W0093-01-00 | |
| Yamaha | 250TXRR | 250 | 2-Stroke | 1993 | 61A-W0093-01-00 | |
| Yamaha | 250TXRS | 250 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | 250TXRT | 250 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | L225TXRS | 225 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | L225TXRT | 225 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | L225TURT | 225 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | L250TXRP | 250 | 2-Stroke | 1991 | 61A-W0093-01-00 | |
| Yamaha | L250TXRQ | 250 | 2-Stroke | 1992 | 61A-W0093-01-00 | |
| Yamaha | L250TXRR | 250 | 2-Stroke | 1993 | 61A-W0093-01-00 | |
| Yamaha | L250TXRS | 250 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | L250TXRT | 250 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | L250TURP | 250 | 2-Stroke | 1991 | 61A-W0093-01-00 | |
| Yamaha | L250TURQ | 250 | 2-Stroke | 1992 | 61A-W0093-01-00 | |
| Yamaha | L250TURR | 250 | 2-Stroke | 1993 | 61A-W0093-01-00 | |
| Yamaha | L250TURS | 250 | 2-Stroke | 1994 | 61A-W0093-01-00 | |
| Yamaha | L250TURT | 250 | 2-Stroke | 1995 | 61A-W0093-01-00 | |
| Yamaha | S225TURU | 225 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | S225TXRU | 225 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | S250TURU | 250 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | S250TXRU | 250 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | L225TURU | 225 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | L225TXRU | 225 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | L250TURU | 250 | 2-Stroke | 1996 | 61A-W0093-01-00 | |
| Yamaha | L250TXRU | 250 | 2-Stroke | 1996 | 61A-W0093-01-00 |
Technical Specs
- Product Type
- Carburetor Rebuild Kit
- Installation
- Direct OEM replacement
- Fuel Type
- Gasoline
- Engine Displacement
- For 3.1L displacement engines
- Warranty
- 1-year against manufacturing defects (on aftermarket kits)

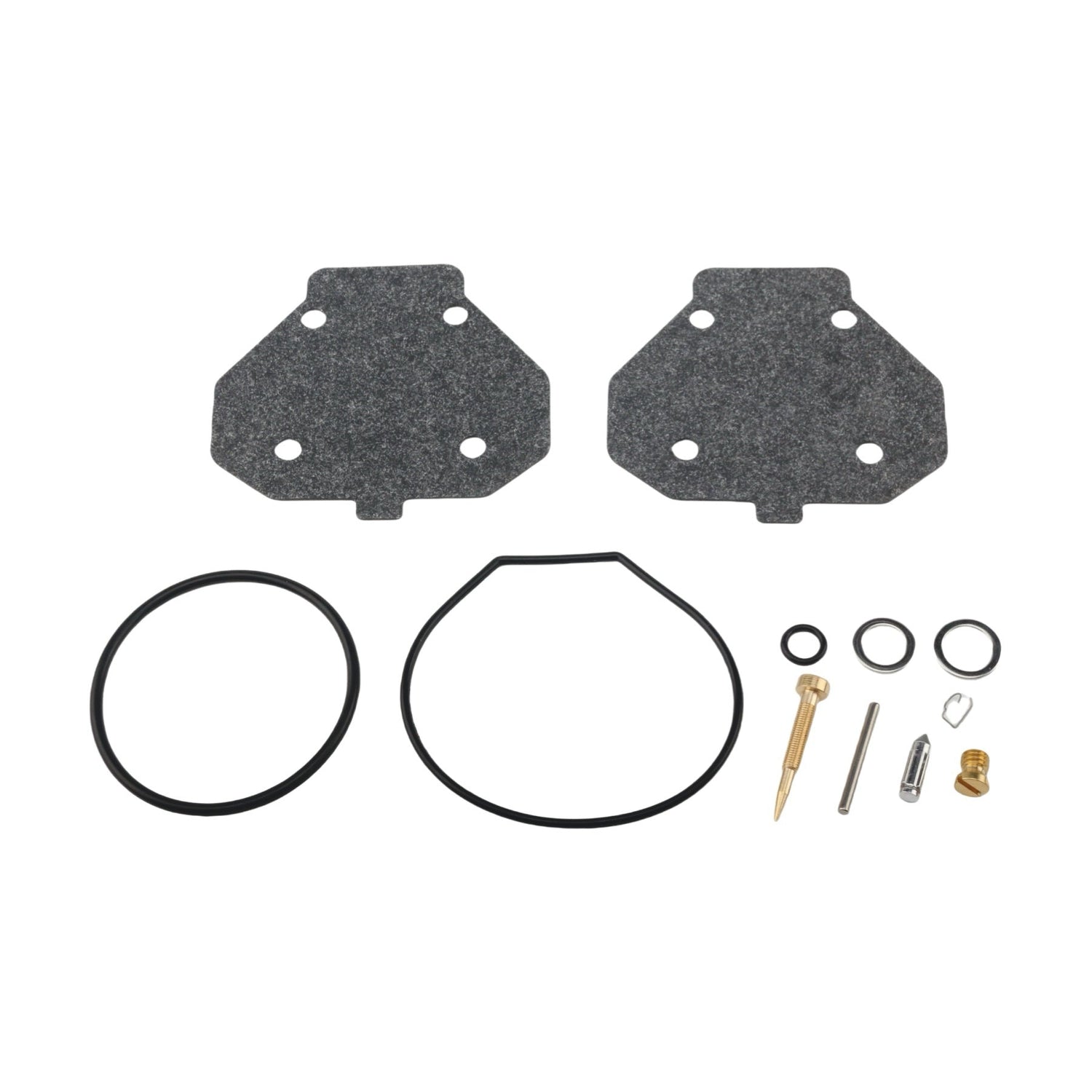

What’s in the Box
- 1 x Clip (6E5-14159-01-00)
- 1 x O-Ring (93210-50MA8-00)
- 1 x Gasket (61A-14198-00-00)
- 1 x Valve, Needle (6E5-14546-00-00)
- 1 x Pin, Float (61A-14386-00-00)
- 1 x Valve, Drain (61A-14394-00-00)
- 1 x Gasket, Float Chamber (61A-14384-00-00)
- 1 x Screw, Air Adjusting (6E5-14323-03-00)
- 1 x Gasket (61A-14995-00-00)
- 1 x Gasket (61A-14959-00-00)
- 1 x O-Ring (61A-14561-00-00)
Installation Notes
Professional installation is recommended. The general steps for rebuilding a carburetor are as follows:
- Safely disconnect the battery and fuel supply lines.
- Remove the airbox/intake cover to access the carburetors.
- Carefully detach the carburetor assembly from the engine, taking note of all linkage and hose connections.
- Disassemble one carburetor at a time on a clean workbench to avoid mixing parts.
- Thoroughly clean all metal components with a quality carburetor cleaner, ensuring all jets and passages are clear.
- Carefully remove old gaskets, seals, and O-rings, then install the new components from this kit.
- Replace the needle valve, float pin, and other included hardware as needed.
- Reassemble the carburetor, ensuring the float is set to the correct height (refer to a service manual for specs).
- Re-install the serviced carburetor onto the engine, reconnecting all fuel lines, vacuum hoses, and throttle linkages.
- Once all carburetors are serviced, start the engine and perform any necessary idle or air/fuel mixture adjustments.
Troubleshooting & FAQ
How do I know if my carburetor needs a rebuild?
Common signs include difficulty starting, poor or rough idling, engine hesitation or sputtering during acceleration, stalling at low speeds, black smoke from the exhaust (running rich), or visible fuel leaks around the carburetor body.
Does this kit fit all Yamaha 225HP/250HP models?
No. This kit is specifically designed for the 3.1L two-stroke Yamaha outboard models made from 1990–1996. It is critical to verify your engine's model number and year against our compatibility chart before ordering.
Is one kit enough for my entire engine?
This kit contains the components to rebuild one single carburetor. V6 engines like the ones this kit fits have multiple carburetors. You will need to purchase one kit for each carburetor on your engine to complete the job correctly.
What is the most common cause of carburetor failure after a rebuild?
Contamination is the most common cause. Tiny particles of dirt, old fuel residue, or debris left behind during cleaning can easily clog small jets and passages. Using fresh, stabilized fuel and ensuring the fuel tank and lines are clean is essential for long-term performance.
Do I need to adjust anything after installing the kit?
Yes, minor adjustments are typically necessary. While the components are built to OEM specs, you will likely need to synchronize the carburetors (if applicable) and fine-tune the idle speed and air/fuel mixture screws for your specific engine and operating conditions.
What is the difference between an OEM and an aftermarket part?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
What are your shipping speeds and costs?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is your warranty and return policy?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
