Carburetor Repair Kit – Fits Yamaha 4HP/5HP (Replaces Yamaha 6E0-W0093-01-00)

Product Details

This Carburetor Repair Kit – Fits Yamaha 4HP/5HP Outboards (Replaces 6E0-W0093-01-00) provides all the necessary components for rebuilding carburetors on Yamaha 4HP and 5HP two-stroke outboard engines from 1994 to 2002. The kit includes gaskets, a float, a needle valve, and other hardware for complete carburetor maintenance.

It serves as a direct interchange for Yamaha part numbers 6E0-W0093-00-00, 6E0-W0093-01-00, 6E0-W0093-02-00, 6E0-W0093-03-00, and 6E0-W0093-04-00.

• Includes essential components like gaskets, float, and needle for a full rebuild.
• Suitable for both DIY enthusiasts and professional marine mechanics.
• Designed for use with gasoline-fueled two-stroke engines.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Yamaha outboards, check the model identification plate on the stern bracket to find your exact model code and ensure it matches the list.

Technical Specs

Product Type

Carburetor Repair Kit

Installation

DIY or Professional

Fuel Type

Gasoline

Materials

Various - Gaskets, Rubber, Metal Components

Package Dimensions

19 × 15 × 33.9 cm

Package Weight

918g

Warranty

1 year (manufacturer defect)

Compatible Carburetors

For use with original Yamaha carburetors 6E3-14301-01 to 6E3-14301-05, and 6E0-14301-00 to 6E0-14301-05

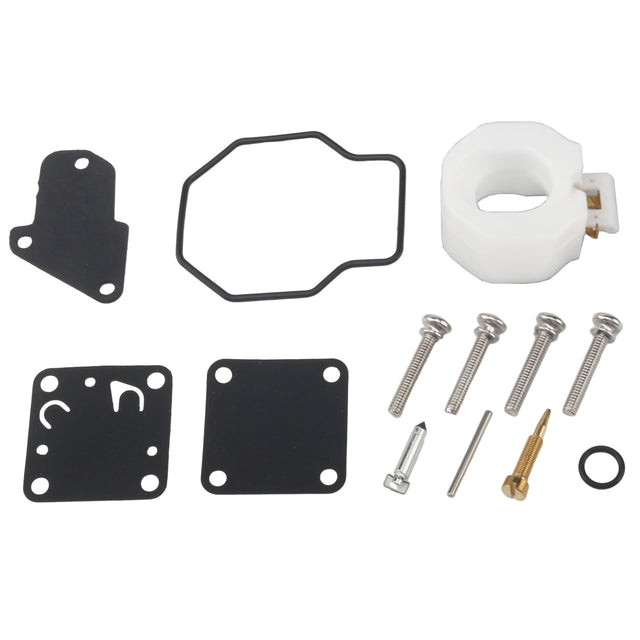

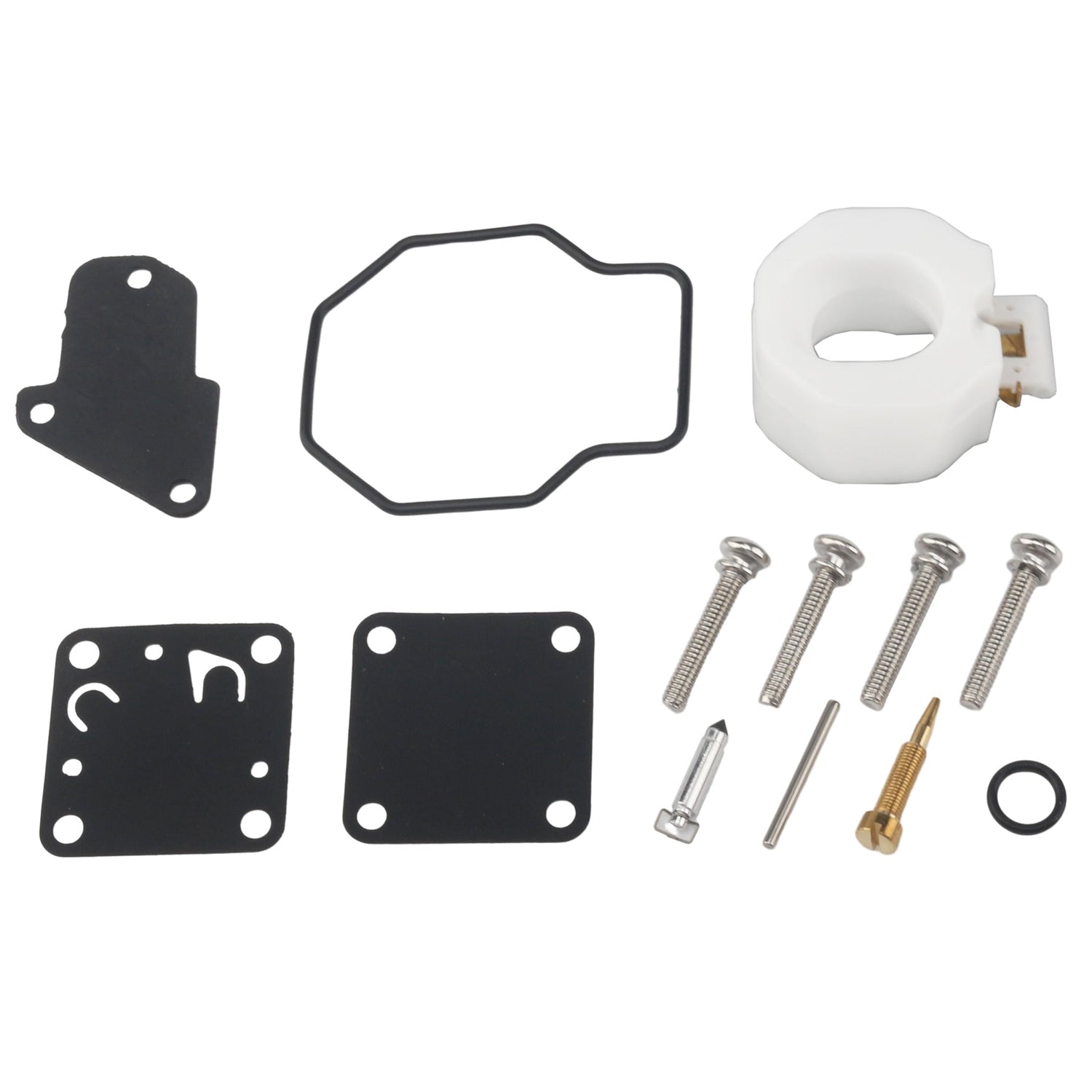

What’s in the Box

• 1 x Gasket (6E0-14198-A0-00)
• 1 x Gasket, Float Chamber (6E0-14384-00-00)
• 1 x Screw, Panhead (97803-04016)
• 1 x Gasket (6A1-14398-00-00)
• 1 x Float (6E7-14385-00-00)
• 1 x Pin, Float (647-14386-10-00)
• 1 x Needle Valve (6G8-14392-10-00)
• 1 x Washer (6E0-14227-00-00)
• 1 x Screw, Air Adjusting (647-14323-00-00)
• 1 x Diaphragm (6E0-24471-00-00)
• 1 x Diaphragm (6E0-24411-00-00)

Installation Notes

1. Safety First: Work in a well-ventilated area away from open flames or sparks. Disconnect the engine's battery and spark plug wires.
2. Access the Carburetor: Remove the engine cowling and any air silencers or covers blocking access to the carburetor. Disconnect fuel lines, throttle linkages, and choke linkages, noting their positions.
3. Remove the Carburetor: Unbolt the carburetor from the engine. Be careful not to drop any hardware into the engine intake.
4. Disassemble and Clean: Disassemble the carburetor on a clean workbench. Carefully note the order of all components. Use carburetor cleaner spray to clean all metal parts and passages. Do not spray cleaner on non-metal parts.
5. Install New Components: Systematically replace the old gaskets, seals, float, needle valve, and other parts with the new ones from the kit. Ensure the float height is set to manufacturer specifications if required.
6. Reassemble and Reinstall: Reassemble the carburetor parts in reverse order of disassembly. Reinstall the carburetor onto the engine, reconnecting all linkages and fuel lines.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
