Product Details
This is a complete Yamaha Fuel Line Connector set for Yamaha Outboard motors from 6 to 250 HP, covering models from 1984–2008 for both 2-Stroke and 4-Stroke engines. The kit provides a reliable, quick-connect solution to restore your fuel system's integrity.
It serves as a direct replacement for Yamaha engine-side part number 6E5-24305-06-00 and tank-side part number 6Y2-24305-06-00, and also supersedes several earlier part numbers for broad compatibility.
- Features a quick-connect design for easy installation and removal.
- Designed for use with 8mm (5/16") fuel hoses.

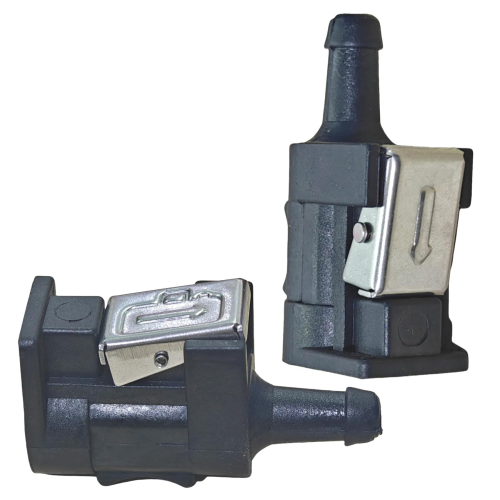

- Includes both male (engine side) and female (tank side) connectors for a complete setup.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Description | Supersedes |
|---|---|---|---|
| Yamaha | 6E5-24305-06-00 | Engine Side (Male) | 6E5-24305-00-00, 6E5-24305-01-00, 6E5-24305-02-00, 6E5-24305-03-00, 6E5-24305-04-00, 6E5-24305-05-00 |
| Yamaha | 6Y2-24305-06-00 | Tank Side (Female) | 6Y2-24305-00-00, 6Y2-24305-01-00, 6Y2-24305-02-00, 6Y2-24305-03-00, 6Y2-24305-04-00, 6Y2-24305-05-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha models, verify your specific horsepower, stroke, and year against the details provided to ensure a correct fit.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | Outboard | 6 | 2-Stroke | 1986–1993, 2001–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 8 | 2-Stroke | 1984–1993, 2001–2005 | 6E5-24305/6Y2-24305 | Models: T8PLR, T8PXR, T8DPLH, T8DEXH, T8DELH |
| Yamaha | Outboard | 9.9 | 2-Stroke | 1985–1993, 1998–2003 | 6E5-24305/6Y2-24305 | Models: T9.9GEXH, T9.9GPLR, T9.9GPXR, T9.9GPXH |
| Yamaha | Outboard | 15 | 2-Stroke | 1986–1993, 1998–2003 | 6E5-24305/6Y2-24305 | Models: 15MSH, F15CMLH, F15CELH, F15PLR, F15CMSH |
| Yamaha | Outboard | 20 | 4-Stroke | 2005–2008 | 6E5-24305/6Y2-24305 | Models: F20MSH, F20ESH, F20PLR, F20ESR, F20ELH, F20ELR, F20MLH |
| Yamaha | Outboard | 25 | 2-Stroke | 1985–1993, 1999–2003 | 6E5-24305/6Y2-24305 | Models: 25ESR, 25ESH, 25MSH, 25MLH |
| Yamaha | Outboard | 30 | 2-Stroke | 1985–1994, 1999–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 40 | 2-Stroke | 1985–1993, 1999–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 48 | 2-Stroke | 2000 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 50 | 2-Stroke | 1984–1993, 1999–2003 | 6E5-24305/6Y2-24305 | Models: 50TLR |
| Yamaha | Outboard | 55 | 2-Stroke | 1989–1993 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 60 | 2-Stroke | 1991–1993, 2000–2003 | 6E5-24305/6Y2-24305 | Models: F60TJR, T60TLR |
| Yamaha | Outboard | 70 | 2-Stroke | 1985–1993, 2000–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 75 | 2-Stroke | 2000 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 85 | 2-Stroke | 1989–1993 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 90 | 2-Stroke | 1985–1993, 2000–2003 | 6E5-24305/6Y2-24305 | Models: 90TLR |
| Yamaha | Outboard | 100–115 | 2 & 4-Stroke | 1985–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 130–150 | 2-Stroke | 1985–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 175–200 | 2-Stroke | 1985–2003 | 6E5-24305/6Y2-24305 | |
| Yamaha | Outboard | 220–250 | 2-Stroke | 1985–2003 | 6E5-24305/6Y2-24305 |
Technical Specs
- Product Type
- Fuel Line Connector Set
- Installation
- Quick Connect
- Fuel Type
- Gasoline
- Connection
- 8mm (5/16") Hose
- Housing Material
- Rubber, Metal
- Housing Color
- Black
- Weight
- 0.06 kg (2.08 oz)
- Fitting Type
- Male and Female Connectors
- Other Technical Attributes
- Includes both engine side (male) and tank side (female) connectors
What’s in the Box
- One (1) Engine Side Fuel Connector (Male) - Replaces 6E5-24305-06-00
- One (1) Tank Side Fuel Connector (Female) - Replaces 6Y2-24305-06-00
Installation Notes
- Ensure the engine is off and cool. Disconnect the battery for safety.
- Follow your engine's service manual to relieve pressure from the fuel line.
- Place a rag under the connection point to absorb any potential fuel spillage.
- Carefully disconnect the old fuel line connectors from the engine and the fuel tank.
- Inspect the fuel hose for any signs of wear, cracking, or damage and replace it if needed.
- Attach the new female connector to the fuel tank hose and the new male connector to the engine hose. Secure with appropriate clamps.
- Connect the new fuel line assembly securely to both the engine and the fuel tank.
- Prime the fuel system using the primer bulb until it feels firm.
- Check thoroughly for any leaks at all connection points.
- Once clear of leaks, reconnect the battery, start the engine, and perform a final leak check.
Troubleshooting & FAQ
Will this fit my specific Yamaha model?
This connector set fits a very wide range of Yamaha outboards from 6 HP to 250 HP manufactured between 1984 and 2008 (both 2-stroke and 4-stroke). To be certain, please find your model in the 'Engine & Model Compatibility' table provided above.
Does this include both the engine and tank side connectors?
Yes, this is a complete kit containing both the male connector for the engine side and the female connector for the fuel tank side.
What hose size does this connector fit?
These connectors are designed to fit a standard 8mm or 5/16" inner diameter fuel hose.
What are the signs my old fuel connector is failing?
Common signs of a failing connector include fuel leaks, difficulty starting, stalling, an audible hissing sound (indicating an air leak), or visible cracks and brittleness in the connector's body.
Are any special tools required for installation?
No special tools are necessary for the connectors themselves as they are quick-connect fittings. However, you may need standard tools like pliers or a screwdriver for the hose clamps.
How do these aftermarket connectors compare to the OEM parts?
These connectors are engineered to meet or exceed original equipment (OEM) specifications for fit, form, and function. They are made from comparable materials to ensure reliable, long-lasting performance.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
