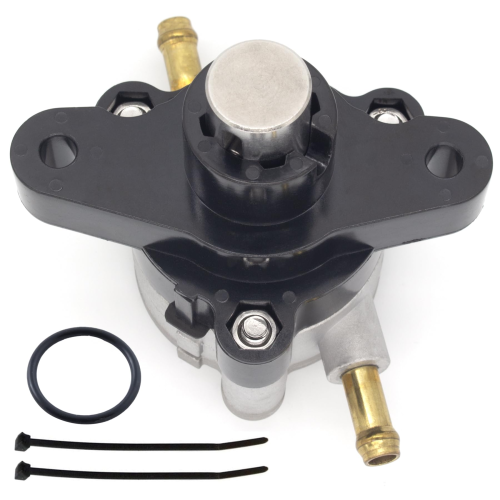

Fuel Pump Assembly – Fits Yamaha 75-115HP 4-Stroke Outboard (Replaces 68V-24410-00-00, 6D8-24410-00-00, 6D8-24410-10-00, Mercury 880890T1)

Product Details

This is a complete Fuel Pump Assembly – Fits Yamaha 75-115HP 4-Stroke Outboard, engineered for reliable performance in marine environments. It is designed for Yamaha 4-Stroke outboards from 75–115 HP (2000–2011), including F75, F80, F90, F100, F115, and LF115 series engines. It also fits select 75–115 HP Mercury/Mariner 4-Stroke models that use the cross-referenced part number.

It serves as a direct replacement for Yamaha part numbers 68V-24410-00-00, 6D8-24410-00-00, 6D8-24410-10-00, and Mercury part number 880890T1.

• Installs as a direct OEM-equivalent replacement.
• Produced in an ISO9002 certified factory to ensure OEM-level quality and reliability.
• Comes complete with necessary clamps and an O-ring for a full installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Yamaha Owners: This pump fits a wide range of F-series and LF-series 4-stroke outboards from 2000 to 2011. Please verify your specific model and year against the list.

For Mercury/Mariner Owners: This assembly is known to be compatible with select 75–115 HP 4-stroke models that use OEM part number 880890T1. Compatibility data is limited, so please verify your part number before ordering.

Technical Specs

Product Type

Fuel Pump Assembly

Installation

Direct OEM replacement

Fuel Type

Gasoline

Connection

Fuel line hose connection with hose clamp

Housing Material

Plastic with metal components

Housing Color

Black/Silver

Weight

433g (0.95 lb)

Fitting Type

Barbed hose fitting

Other Technical Attributes

OEM-level quality, produced in ISO9002 certified factory

Warranty

1-year against manufacturing defects (JLM Marine)

What’s in the Box

• 1 x Fuel Pump Assembly (replaces 68V-24410-00-00)
• 1 x Hose Clamp (replaces 90465-10098-00)
• 1 x O-Ring (replaces 93210-29198-00)
• 1 x 3x35mm Hose Clamp

Installation Notes

1. Disconnect the battery and relieve fuel system pressure safely.
2. Note the orientation of the old fuel pump and the connection of its hoses and electrical connectors.
3. Carefully disconnect the fuel lines and electrical plug from the original pump.
4. Remove the mounting bolts or bracket securing the old pump and take it out.
5. Compare the new pump with the old one to ensure an identical match.
6. Install the new O-ring and place the new fuel pump assembly in position.
7. Secure the pump with its mounting hardware, tightening to the manufacturer’s specification.
8. Reconnect the fuel lines using the new hose clamps provided, and plug in the electrical connector.
9. Reconnect the battery.
10. Prime the fuel system according to your engine’s manual and check for leaks before starting the engine.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
