Intake Gasket – Fits Yamaha 200–300HP HPDI Outboards (Replaces 60V-13646-00-00)
Intake Gasket – Fits Yamaha 200–300HP HPDI Outboards (Replaces 60V-13646-00-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details

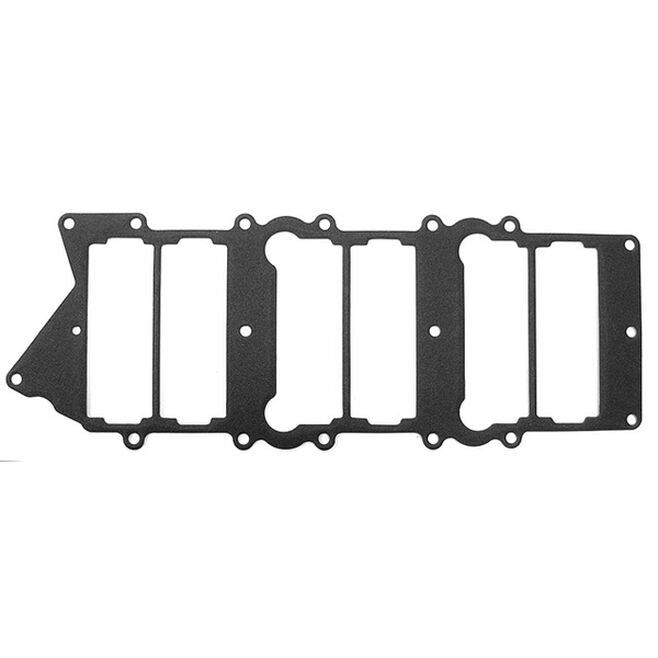

This replacement Intake Gasket – Fits Yamaha 200–300HP HPDI Outboards is designed for Yamaha's 6-Cylinder 3.3L HPDI series. It provides a direct-fit sealing solution for 200HP (2005–2010), 225HP (2003–2009), 250HP (2003–2009), and 300HP (2004–2010) models, ensuring reliable engine performance by preventing intake leaks.
This part serves as a direct replacement for Yamaha OEM part number 60V-13646-00-00.
- Installs as a direct OEM replacement.
- Specifically designed for HPDI (High Pressure Direct Injection) fuel systems.
- This is the inner intake manifold gasket.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 60V-13646-00-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This component is designed for select Yamaha HPDI outboards.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | HPDI 6 Cyl 3.3L | 200 | 2-Stroke | 2005–2010 | 60V-13646-00-00 | |
| Yamaha | HPDI 6 Cyl 3.3L | 225 | 2-Stroke | 2003–2009 | 60V-13646-00-00 | |
| Yamaha | HPDI 6 Cyl 3.3L | 250 | 2-Stroke | 2003–2009 | 60V-13646-00-00 | |
| Yamaha | HPDI 6 Cyl 3.3L | 300 | 2-Stroke | 2004–2010 | 60V-13646-00-00 |
Technical Specs
- Product Type
- Intake Gasket
- Installation
- Direct OEM replacement
- Fuel Type
- HPDI (High Pressure Direct Injection)
- Other Technical Attributes
- Inner intake manifold gasket
- Dimensions
- 50.0cm L x 21.0cm W x 0.5cm H
What’s in the Box
- 1 x Intake Gasket (60V-13646-00-00)
Installation Notes
- Disconnect the battery and relieve fuel system pressure before beginning work.
- Remove the engine cowling and any covers obstructing access to the intake manifold.
- Carefully disconnect fuel lines, sensors, and electrical connectors attached to the manifold.
- Unfasten the intake manifold bolts in the sequence recommended by the manufacturer.
- Remove the old gasket and thoroughly clean all mating surfaces on the engine block and manifold. Ensure no debris or old material remains.
- Position the new intake gasket correctly; do not use sealants unless explicitly required by the service manual.
- Reinstall the intake manifold, torquing the bolts to the correct specifications and sequence.
- Reconnect all lines and connectors, reinstall covers, and connect the battery.
- Before starting the engine, check for any fuel or fluid leaks.
Troubleshooting & FAQ
How do I know if my intake gasket is failing?
Common signs include a rough or high idle, poor engine performance, a hissing sound indicating a vacuum leak, reduced power, and engine fault codes related to the air-fuel mixture.
Is this the inner or outer intake gasket?
This is the inner intake manifold gasket, which seals the connection between the intake manifold and the engine's cylinder head or block.
Can I reuse my old gasket?
No. Gaskets are designed for single use and compress to create a seal. Reusing an old gasket will likely result in fuel, air, or coolant leaks and is strongly discouraged.
Does this gasket require sealant upon installation?
Most modern gaskets are installed dry. However, always refer to your outboard's specific service manual, as some applications may require a small amount of sealant in certain areas.
Is this an OEM part?
This listing is for an aftermarket replacement, not an OEM component. It is built to meet or exceed OEM-level specifications using comparable materials and manufactured in an ISO 9002 certified facility with batch inspections for quality assurance.
How fast is shipping?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free, and expedited options are available at checkout where offered.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
