Piston (Standard) – Fits Yamaha 115-225HP Outboards (Replaces 6R5-11642-11-93, 6R5-11642-10-93)
Piston (Standard) – Fits Yamaha 115-225HP Outboards (Replaces 6R5-11642-11-93, 6R5-11642-10-93) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details
This high-quality Piston (Standard) – Fits Yamaha 115-225HP Outboards is engineered for port-side application in Yamaha 115-225HP 2-Stroke outboards from 1992–2004, including C115, S115, B115, P115, 130, L130, S130, 150, L150, P150, 175, P175, 200, L200, P200, and 225 models.
It serves as a direct replacement for Yamaha part numbers 6R5-11642-11-93 and the superseded 6R5-11642-10-93, as well as GLM Marine 24700.
- Designed for port-side cylinder installation.
- Standard bore size (90mm) for non-bored cylinders.
- Includes piston, rings, pin, and clips for a complete swap.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 6R5-11642-11-93 | Current Part |
| Yamaha | 6R5-11642-10-93 | Superseded by 6R5-11642-11-93 |
| GLM Marine | 24700 | Aftermarket Interchange |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 150TLRQ | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 150TXRQ | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | L150TXRQ | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 175TLRQ | 175 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 175TXRQ | 175 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 200TJRQ | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 200TLRQ | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 200TXRQ | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | L200TXRQ | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 225TLRQ | 225 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 225TXRQ | 225 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 150CETO (6R2) | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | L150CETO (6R0) | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 150TRQ (6R20) | 150 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 175BETO (6R3) | 175 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 200BETO (6R4) | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | L200BETO (6R1) | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | L200TRQ (6R10) | 200 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 225BET (6R50) | 225 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 225BETO (6R5) | 225 | 2-Stroke | 1992 | 6R5-11642-11-93 | Port piston |
| Yamaha | 115, C115, S115, B115, P115 | 115 | 2-Stroke | 1993–Later | 6R5-11642-11-93 | Port piston |
| Yamaha | 130, L130, S130 | 130 | 2-Stroke | 1993–2004 | 6R5-11642-11-93 | Port piston |
| Yamaha | 150, L150, P150 | 150 | 2-Stroke | 1993–1995 | 6R5-11642-11-93 | Port piston |
| Yamaha | 175, P175 | 175 | 2-Stroke | 1993–1995 | 6R5-11642-11-93 | Port piston |
| Yamaha | 200, L200, P200 | 200 | 2-Stroke | 1993–1995 | 6R5-11642-11-93 | Port piston |
| Yamaha | 225 | 225 | 2-Stroke | 1993–1995 | 6R5-11642-11-93 | Port piston |
Technical Specs
- Product Type
- Piston (Standard)
- Application
- Port Side
- Piston Diameter
- 90mm
- Piston Height
- 76.41mm
- Wrist Pin Diameter
- 23mm
- Material
- Aluminum Alloy
- Housing Color
- Silver/Metallic
- Dimensions
- 2.25" L x 2.25" W x 3.0" H
- Weight
- 0.71 kg (1.56 lbs)
- Bore Size
- Standard (not oversized)

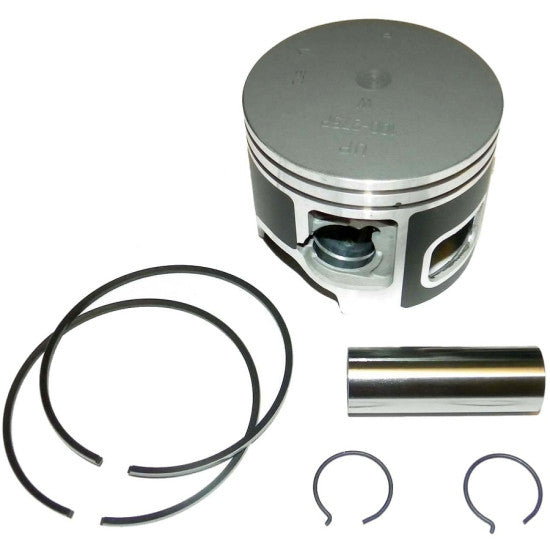

What’s in the Box
- 1 x Piston (Standard) (6R5-11642-11-93)
- 1 x Piston Ring Set (Standard)
- 2 x Piston Pin Clip (6R5-11634-10)
- 1 x Piston Pin (6R5-11633-10)
Installation Notes
- Disconnect the battery and safely secure the engine before beginning work.
- Drain necessary engine fluids (e.g., oil, coolant) as per your service manual.
- Remove the cylinder head and other components to gain access to the piston assembly.
- Carefully remove the old piston pin clips, piston pin, and the worn piston.
- Thoroughly inspect the cylinder walls for any scoring, tapering, or out-of-round conditions. Hone if necessary to ensure proper ring seating.
- Install one new piston pin clip into the groove on one side of the new piston.
- Generously lubricate the new piston, rings, and wrist pin with fresh 2-stroke oil.
- Install the new piston assembly with the arrow (if present) pointing towards the exhaust side and insert the piston pin.
- Install the second piston pin clip to secure the assembly.
- Using a piston ring compressor, carefully guide the piston and rings into the cylinder bore.
- Reassemble the cylinder head and all other components, torquing all fasteners to the manufacturer's specifications.
- Refill all fluids, reconnect the battery, and follow the service manual's procedure for initial startup after a rebuild.
Troubleshooting & FAQ
How do I know if this piston is for the port or starboard side?
This specific part, 6R5-11642-11-93, is designed exclusively for the port side of the engine. Always verify the part number required for each specific cylinder location as they are often different.
Is this a standard or oversized piston?
This is a standard size piston with a 90mm diameter. It is not oversized and is intended for cylinders that are within factory specifications and do not require boring.
What are the signs my old piston needs replacing?
Common signs of a failing piston include a noticeable loss of compression, excessive or discolored smoke from the exhaust, a repetitive knocking sound from the engine, or the presence of metal shavings in the engine oil upon inspection.
Do I need to hone the cylinder before installing this new piston?
Yes, it is highly recommended to inspect and measure the cylinder bore for wear. Honing the cylinder creates a fresh cross-hatch pattern that helps new piston rings seat correctly, which is critical for achieving optimal compression and engine performance.
What is the difference between part number 6R5-11642-11-93 and 6R5-11642-10-93?
The part number 6R5-11642-10-93 was superseded by 6R5-11642-11-93. They are functionally identical, but the '-11-93' version is the latest revision available. This aftermarket kit replaces both numbers.
Does this kit include all the gaskets I need for the job?
This kit includes the core components: the piston, piston rings, wrist pin, and pin clips. It does not include engine gaskets or seals, which should be purchased separately. Please consult your service manual for a complete list of required parts for a piston replacement job.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
