Product Details

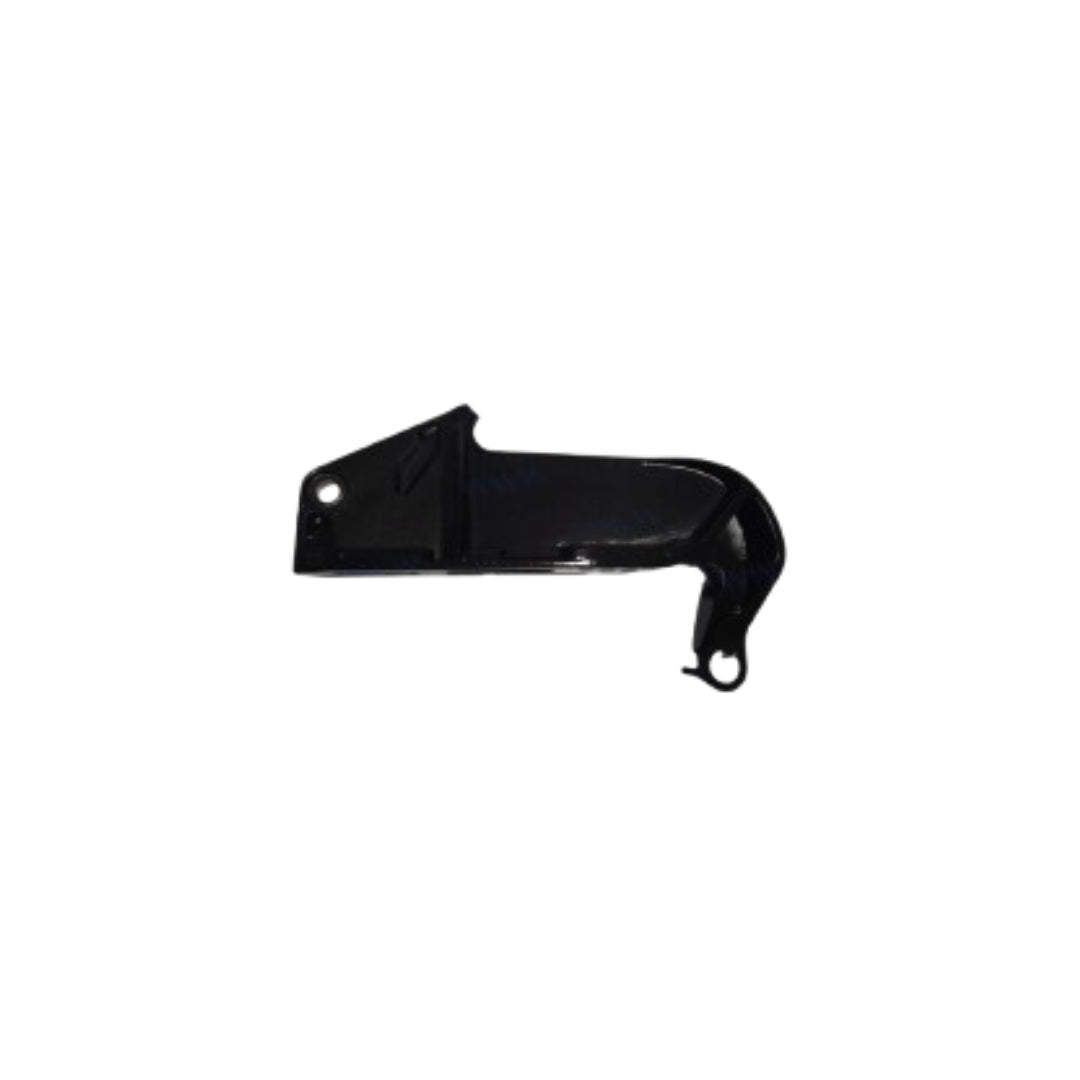

This Right Clamp Bracket for Yamaha/Parsun 115HP Outboards is a crucial component for securing the engine to your boat's transom. It serves as a primary mounting point for the clamp assembly on Yamaha and Parsun 115HP, 4-stroke outboard motors, ensuring a stable and safe installation.
It is a direct aftermarket replacement for Yamaha part 6EK-43112-00-8D and Parsun part PAF115-01010002.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Parsun | PAF115-01010002 |
| Yamaha | 6EK-43112-00-8D |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Designed for specific Yamaha and Parsun 4-stroke models.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yamaha | F115 | 115 | 4-Stroke | 6EK-43112-00-8D | Replaces original equipment |
| Parsun | F115 | 115 | 4-Stroke | PAF115-01010002 | Parsun compatible part |
Technical Specs
- Product Type
- Clamp Bracket (Right)
- Dimensions
- 500 × 320 × 210 mm (L × W × H)
- Weight
- 3.94 kg (8.69 lbs)
- Position
- Right Side
- OEM Part Number
- PAF115-01010002 (Parsun), 6EK-43112-00-8D (Yamaha)
- Compatibility
- Yamaha and Parsun 115HP 4-stroke outboard motors
What’s in the Box
- 1 × Bracket, Clamp (Right) (PAF115-01010002 / 6EK-43112-00-8D)
Installation Notes
- Ensure the engine is off and disconnect the battery terminals for safety.
- Securely support the outboard motor using a hoist or appropriate stand before removing any mounting hardware.
- Carefully unbolt and remove the existing right-side clamp bracket from the transom assembly.
- Clean the mounting surface on the engine and transom, removing any old sealant, corrosion, or debris.
- Position the new clamp bracket, aligning it with the bolt holes.
- Loosely thread all mounting bolts before fully tightening them to the manufacturer's specified torque sequence and values.
- Once secured, reconnect the battery and verify the engine is firmly mounted before operation.
Troubleshooting & FAQ
How do I know if this bracket fits my 115HP engine?
This bracket is designed for specific Yamaha and Parsun 115HP 4-stroke models. The most reliable way to confirm fitment is to match your existing part number to one of the direct replacements: 6EK-43112-00-8D (Yamaha) or PAF115-01010002 (Parsun). Always check the compatibility table on this page.
Is this for the port or starboard side?
This is the Right (starboard) side clamp bracket. You will need to order the corresponding left-side part separately if you are replacing both.
What are the signs my clamp bracket needs replacement?
Common signs of failure include visible stress cracks, fractures, significant corrosion, or difficulty clamping the motor securely to the transom. A loose or wobbling motor is a major safety hazard indicating a potential bracket failure that needs immediate attention.
Does this bracket come with mounting hardware?
The package contains one clamp bracket assembly. Mounting bolts and other hardware are typically reused from the original setup or must be purchased separately. Refer to the "What’s in the Box" section for a complete list of included items.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
