Product Details

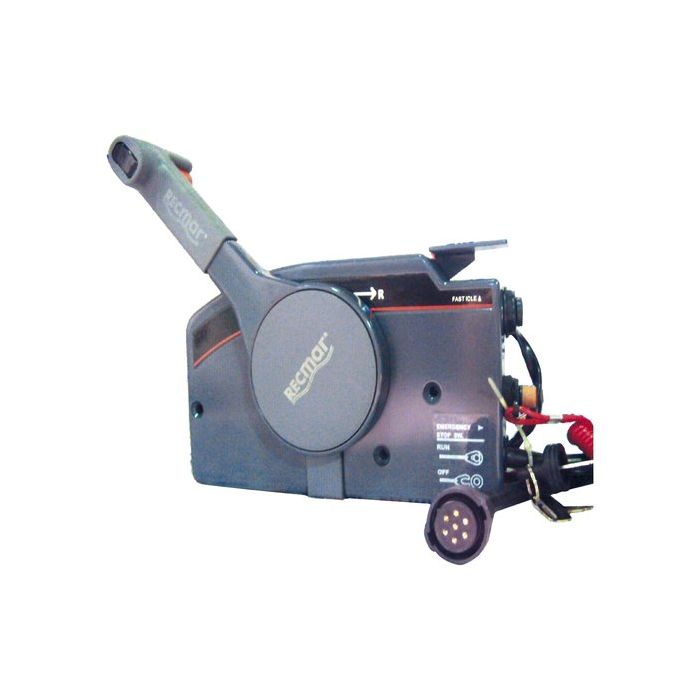

This Yamaha-compatible Side Mount Remote Control Box is designed for a universal fit on 6-115HP outboard engines. It features a 7-pin connector and push-to-open throttle functionality, although it can be converted for pull-to-open operation based on your needs.
This assembly serves as a direct interchange for Yamaha part numbers 703-48230-14, 703-48230-21-00, 7034823014, 703-48230-14-P, 7034823014P, 703-48230-14-P-L, and 7034823014PL.
- Configured for left-side (port) installation but is fully convertible for right-side (starboard) mounting.
- Features a neutral interlock trigger for safe engine starting and operation.
- Includes a 16ft (4.9m) 7-pin wiring harness for flexible routing on various vessel sizes.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 703-48230-14 |
| Yamaha | 703-48230-21-00 |
| Yamaha | 7034823014 |
| Yamaha | 703-48230-14-P |
| Yamaha | 7034823014P |
| Yamaha | 703-48230-14-P-L |
| Yamaha | 7034823014PL |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This control box is designed for a universal fit across a wide range of Yamaha 2-stroke and 4-stroke outboard engines.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yamaha | Outboard | 6-115 | 2-Stroke & 4-Stroke | 703-48230-14 | Universal fit for Yamaha outboards in this HP range |
Technical Specs
- Product Type
- Side Mount Remote Control Box
- Installation
- Left Side Mount (Convertible to Right)
- Connection
- 7-Pin
- Throttle Type
- Push to Open (Convertible to Pull)
- Housing Material
- Aluminum
- Housing Color
- Black
- Dimensions
- 44 × 28 × 15 cm (17.3 × 11 × 5.9 in)
- Weight
- 4.2 kg (9.5 lb)
- Warranty
- 1 Year
- Other Attributes
- Neutral interlock trigger, Remote control lever, Neutral throttle lever, Main switch/Choke switch, Engine shut-off/stop switch, Throttle friction adjuster
What’s in the Box
- 1 x Remote Control Box (Replaces 703-48230-14)
- 1 x Kill Cord Safety Lanyard
- 2 x Keys
- 1 x 7-Pin Wiring Harness Cable (16ft/4.9m)
- 1 x Instruction Manual
- 1 x Mounting Hardware Set
Installation Notes
- Ensure the engine is off and disconnect the battery before beginning work.
- Choose a suitable mounting location. This unit is pre-set for left-side mounting but can be reconfigured for the right side per the manual.
- Drill mounting holes using the provided hardware or a template based on the unit's footprint.
- Securely fasten the control box using the included mounting bolts, washers, and nuts.
- Route the 7-pin wiring harness from the control box to the engine and connect it securely.
- Attach the throttle and shift cables to the control box mechanism, ensuring they move freely without binding.
- Adjust the throttle friction using the external adjuster to prevent throttle creep.
- Connect the wires for the kill cord safety switch.
- Reconnect the battery and test all functions (throttle, shift, neutral lock, choke, and kill switch) before operating the vessel on the water.
Troubleshooting & FAQ
Can this control box be installed on the right (starboard) side?
Yes. Although it comes configured for left-side (port) mounting, the control lever and other components can be reversed for right-side installation by following the included instruction manual.
My engine requires a pull-to-open throttle. Will this work?
Yes. This unit is set for push-to-open throttle action but can be converted to pull-to-open. The conversion process is detailed in the manufacturer's instruction manual.
What Yamaha engine years is this compatible with?
This control box is designed for a broad range of Yamaha 6HP to 115HP outboards (both 2-stroke and 4-stroke). While a specific year range is not defined, it fits most engines in this class that use a 7-pin harness. Always verify your part number and connector type before ordering.
What are the signs my remote control box is failing?
Common signs of failure include a stiff or unresponsive throttle lever, difficulty shifting in and out of gear, an intermittent or non-functional kill switch, and electrical issues like a faulty main or choke switch.
Does this kit include the throttle and shift cables?
No, this kit includes the remote control box, wiring harness, and mounting hardware. Throttle and shift cables must be purchased separately to match the length required for your vessel.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component. All mentions of brand names and part numbers are for reference purposes only.
- Professional installation is recommended for safety and performance. Improper installation can lead to component failure or loss of vessel control.
