Product Details

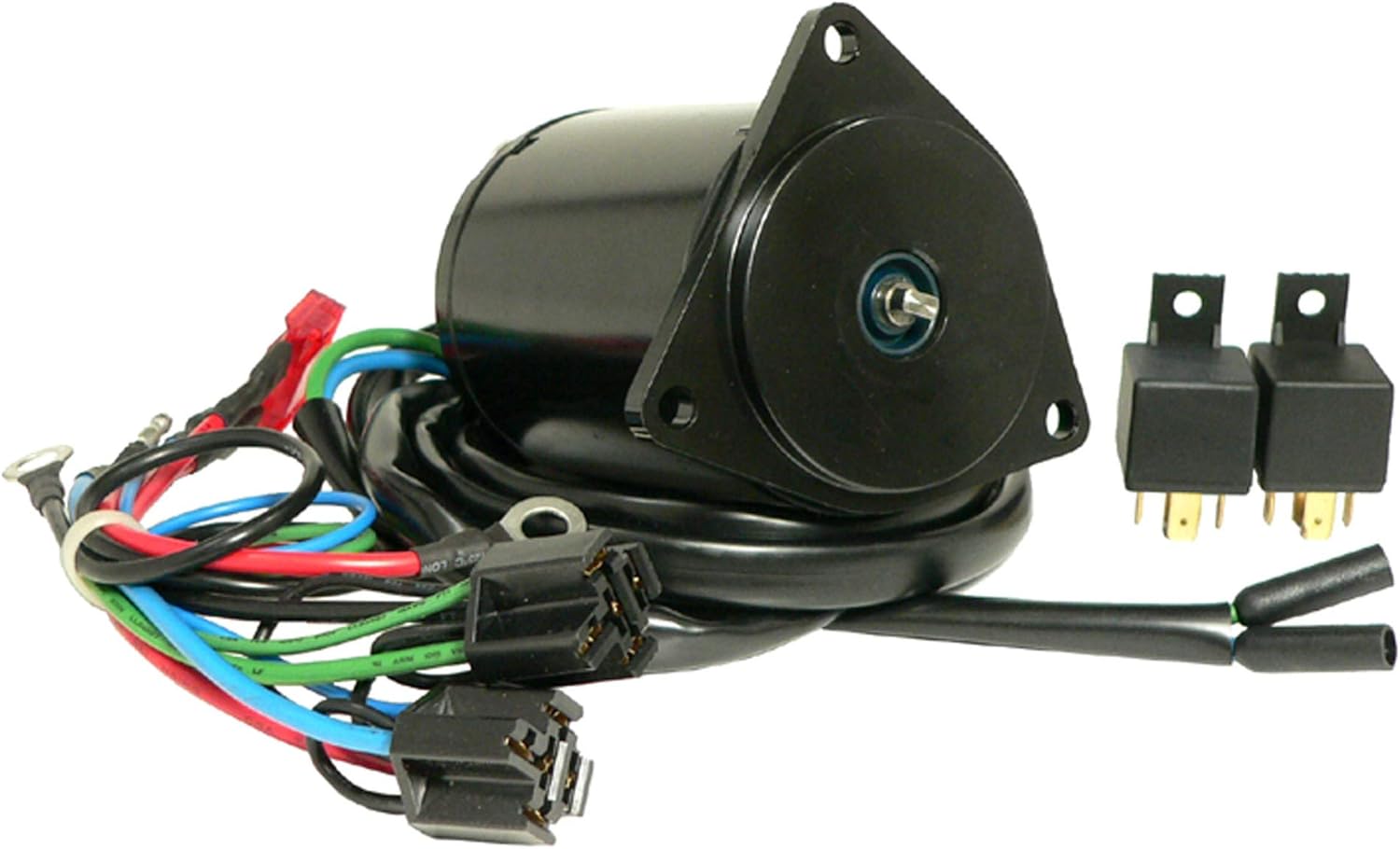

This aftermarket Tilt Trim Motor is engineered to fit a range of Yamaha 50-225HP 2-Stroke outboard engines from 1985 to 1991. It is designed for early model outboards featuring a 3-wire electrical connection and a 3-bolt mounting pattern, ensuring a precise match for compatible systems.
It serves as a direct interchange for Yamaha part numbers 688-43880-11-00, 6E5-43880-01-00, and 6E5-43880-02-00, as well as aftermarket references like Sierra 18-6259, 18-6821, and Arco 6267.
- Features a 3-bolt mounting pattern for secure installation.
- Connects via a 3-wire harness with ring terminal ends.
- Select models may include a relay kit for conversion to a newer 2-wire setup.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 688-43880-11-00 |
| Yamaha | 6E5-43880-01-00 |
| Yamaha | 6E5-43880-02-00 |
| Yamaha | 6H1-43800-00EK |
| Sierra | 18-6259 |
| Sierra | 18-6821 |
| Arco | 6267 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This motor is designed for the following Yamaha outboard models. Please verify your specific model and year for correct fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 50ETML | 50 | 2-Stroke | 1990 | 688-43880-11-00 | |
| Yamaha | 50TLH | 50 | 2-Stroke | 1991 | 688-43880-11-00 | |
| Yamaha | P50TLR | 50 | 2-Stroke | 1991 | 688-43880-11-00 | |
| Yamaha | PRO50L | 50 | 2-Stroke | 1987–1990 | 688-43880-11-00 | |
| Yamaha | 70ETL | 70 | 2-Stroke | 1985–1986 | 688-43880-11-00 | |
| Yamaha | 90ETL | 90 | 2-Stroke | 1985–1986 | 688-43880-11-00 | |
| Yamaha | 90ETLJ | 90 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 90ETLJ-JD | 90 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 115ETLK | 115 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 115ETXK | 115 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 115ETLJ | 115 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 115ETXJ | 115 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 150ETLK | 150 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 150ETXK | 150 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 150ETLJ | 150 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 150ETXJ | 150 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | L150ETXJ | 150 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | PROV150J | 150 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | PROV150LJ | 150 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 175ETLK | 175 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 175ETXK | 175 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 175ETLJ | 175 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 175ETXJ | 175 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 200ETLK | 200 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 200ETXK | 200 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | 200ETLJ | 200 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | 200ETXJ | 200 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | L200ETXJ | 200 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | V6SPECIALLK | 220 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | V6SPECIALXK | 220 | 2-Stroke | 1985 | 688-43880-11-00 | |
| Yamaha | V6SPECIALLJ | 220 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | V6SPECIALLN | 220 | 2-Stroke | 1984 | 688-43880-11-00 | |
| Yamaha | V6SPECIALXJ | 220 | 2-Stroke | 1986 | 688-43880-11-00 | |
| Yamaha | V6SPECIALXN | 220 | 2-Stroke | 1984 | 688-43880-11-00 |
Technical Specs
- Product Type
- Tilt Trim Motor
- Installation
- 3-bolt mount pattern
- Connection
- 3-wire with ring terminal ends
- Housing Material
- Metal with protective coating
- Voltage
- 12V DC
- Warranty
- 1 Year
- Product Dimensions
- 25.5cm L x 20.0cm W x 17.0cm H
- Box Dimensions
- 25.5cm L x 20.0cm W x 17.0cm H
What’s in the Box
- 1 x Tilt Trim Motor (Replaces 688-43880-11-00)
- 1 x O-Ring Seal
Installation Notes
- Disconnect the battery terminals to prevent electrical shorts.
- Tilt the outboard to the full "up" position and engage the tilt lock for safety.
- Locate and disconnect the motor's 3-wire electrical harness.
- Carefully unbolt and remove the old tilt trim motor. Be prepared for some residual hydraulic fluid.
- Clean the mounting surface and install the new O-ring seal provided.
- Mount the new motor, ensuring the bolts are tightened evenly to the manufacturer's torque specification.
- Reconnect the electrical harness securely.
- Disengage the tilt lock, reconnect the battery, and test the full range of motion.
Troubleshooting & FAQ
What are the signs of a failing tilt trim motor?
Common symptoms include a slow or jerky trimming action, a whining or clicking sound from the motor during operation, or a complete failure to raise or lower the outboard. You may also notice fluid leaks around the motor seals.
How does this aftermarket motor compare to an OEM Yamaha part?
While OEM Yamaha units are known for very long service lives, this aftermarket motor offers a cost-effective alternative built to match original specifications. User reports on various aftermarket brands are mixed, but Arco units have received positive feedback for durability. It is crucial to ensure a clean installation and protect all electrical connections in the marine environment.
Will this fit my engine if it uses a 2-wire connection?
This motor is designed with a 3-wire connection for older Yamaha models. However, some versions include a relay kit that allows for conversion to a newer 2-wire system. Please check the "What's in the Box" section to confirm if a relay is included with this specific package.
Can I install this motor myself?
While DIY installation is possible for those with mechanical experience, professional installation is recommended. The process involves handling the weight of the outboard, ensuring proper sealing, and correctly wiring the unit. Improper installation can lead to leaks, electrical issues, or damage to the trim system.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
