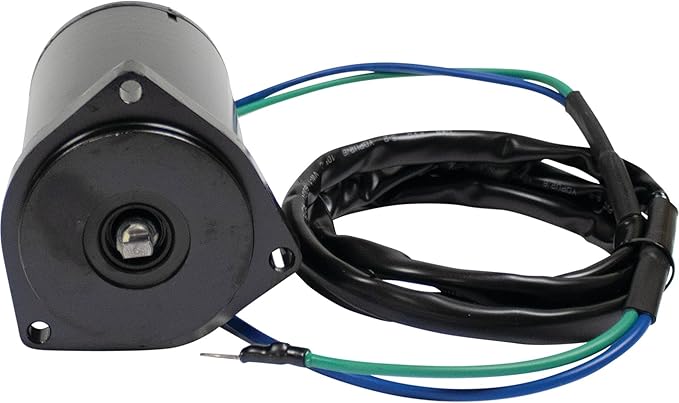

Tilt & Trim Motor – Fits Yamaha 75-100HP Outboards (Replaces 67F-43880-00-00)

Sale price $159.99 Regular price $255.00
Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This high-performance Tilt & Trim Motor – Fits Yamaha 75-100HP Outboards (Replaces 67F-43880-00-00) is designed for Yamaha F75/F90 4-Stroke (2003–2004) and F80/F100 4-Stroke (1999–2003) models. It is fully compatible with 4-bolt mount applications, ensuring a precise fit and reliable operation.

It serves as a direct interchange for Yamaha part 67F-43880-00-00 and aftermarket equivalents from API Marine, Arco Marine, Sierra Marine, and other major brands.

  • Engineered for 4-bolt mount installations.
  • Features a simple 2-wire (Blue/Green) configuration with ring terminals.
  • Built with premium brushes, bushings, and armatures for extended service life.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand Part Number
Yamaha 67F-43880-00-00
API Marine PT615NM
Arco Marine 6261
Arrowhead TRM0087 / 430-22066
Sierra Marine 18-6787
EMP Parts 4-6787
J&N Electrical Products 430-22066
Lester 10862
WAI 10862N

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Yamaha F75TLR 75 4-Stroke 2003–2004 67F-43880-00-00
Yamaha F80TLR 80 4-Stroke 2000–2003 67F-43880-00-00
Yamaha F80TJR 80 4-Stroke 2002–2003 67F-43880-00-00
Yamaha F80TXR 80 4-Stroke 1999–2000 67F-43880-00-00
Yamaha F90TLR 90 4-Stroke 2003–2004 67F-43880-00-00
Yamaha F90TJR 90 4-Stroke 2003–2004 67F-43880-00-00
Yamaha F100TLR 100 4-Stroke 1999–2003 67F-43880-00-00
Yamaha F100TXR 100 4-Stroke 1999–2003 67F-43880-00-00

Technical Specs

Product Type
Tilt & Trim Motor
Installation
4-Bolt Mount
Motor Type
12V DC Reversing
Connection
2-Wire (Blue/Green) with Ring Terminal Connections
Shaft Type
4mm × 8mm Drive Tang
Outer Diameter
64.6mm (2.543 in)
Shaft Diameter
8mm (0.315 in)
Length
23.5 cm (9.25 in)
Height
13.5 cm (5.31 in)
Width
13.0 cm (5.12 in)
Marine Certification
SAE J1171, ISO8847
Wire Configuration
Blue (Raise), Green (Lower)

What’s in the Box

  • 1 × Tilt & Trim Motor (67F-43880-00-00)

Installation Notes

  1. Disconnect the battery terminals to prevent electrical shorts.
  2. Locate and access the old tilt and trim motor assembly on your outboard.
  3. Carefully note the routing and connection points of the existing electrical wires.
  4. Disconnect the blue and green wires from the power relay or solenoids.
  5. Unbolt the four mounting bolts securing the motor. You may need to support the unit as you remove the last bolt.
  6. Remove the old motor and clean the mounting surface of any dirt or corrosion.
  7. Position the new motor, aligning the shaft and bolt holes correctly.
  8. Secure the new motor with the four mounting bolts, tightening them to the manufacturer-specified torque.
  9. Connect the new motor's wires: blue wire for "raise" (up) and green wire for "lower" (down).
  10. Reconnect the battery terminals and test the full range of motion to ensure smooth, correct operation.

Troubleshooting & FAQ

How do I confirm this motor fits my Yamaha outboard?

This motor is engineered for specific Yamaha 4-stroke models from 1999–2004, including the F75, F80, F90, and F100 series requiring a 4-bolt mount. To ensure a perfect match, please cross-reference your engine's model and year with the "Engine & Model Compatibility" table above.

What are the signs of a failing tilt and trim motor?

Common symptoms include slow, jerky, or hesitant operation when raising or lowering the outboard. You might also hear a humming or clicking noise without any movement, or the motor may fail to operate entirely. Check for these signs to diagnose a potential motor failure.

What is the correct wire configuration?

This is a 2-wire motor. Connect the Blue wire to the "raise" (up) circuit and the Green wire to the "lower" (down) circuit. Ensure connections are clean and secure at the relay terminals.

Is this motor salt or freshwater rated?

Yes, this motor is designed for marine environments and meets SAE J1171 and ISO 8847 marine standards for ignition protection and electrical safety, making it suitable for both saltwater and freshwater use.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

  • Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
  • This is an aftermarket replacement, not an OEM component.
  • Professional installation is recommended for safety and performance.
