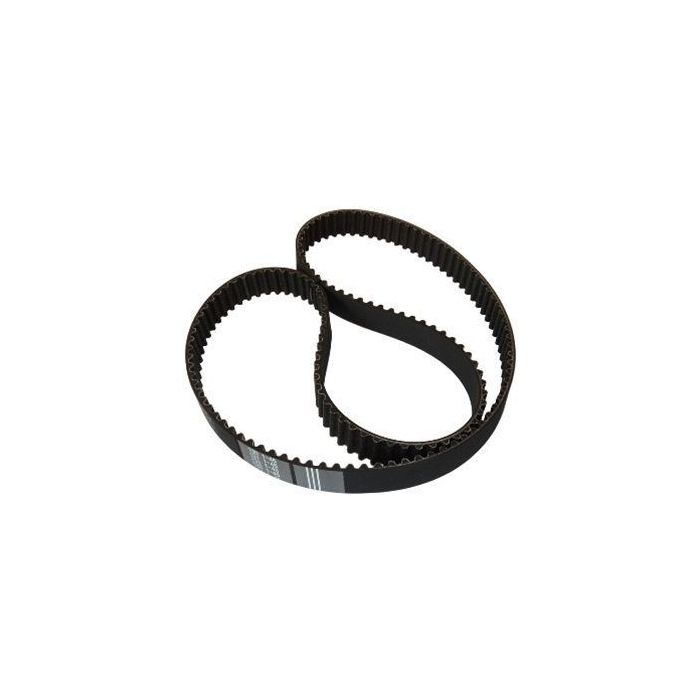

Timing Belt – Fits Yamaha F75, F80, F90, F100, F115 Outboards (Replaces 67F-46241-00-00, 115-05000091)
Timing Belt – Fits Yamaha F75, F80, F90, F100, F115 Outboards (Replaces 67F-46241-00-00, 115-05000091) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details
This replacement Timing Belt – Fits Yamaha F75, F80, F90, F100, F115 Outboards is engineered for Yamaha 4-Stroke engines from 75 to 115 HP, covering models from 1999–2017. It ensures precise and efficient engine timing for optimal performance and reliability on the water.
It serves as a direct interchange for Yamaha part numbers 67F-46241-00-00 and 6EK-W4624-00-00, as well as Parsun 115-05000091.
- Designed for direct-fit installation.
- Made from high-quality rubber with reinforced fiber for durability.
- Provides long-lasting performance in marine environments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 67F-46241-00-00 |
| Yamaha | 6EK-W4624-00-00 |
| Parsun | 115-05000091 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This timing belt is compatible with a wide range of Yamaha 4-stroke outboard motors produced between 1999 and 2017.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75LA | 75 | 4-Stroke | 2012–2015 | 67F-46241-00-00 | |
| Yamaha | F75TLR | 75 | 4-Stroke | 2006–2011 | 67F-46241-00-00 | |
| Yamaha | F75TLRB/C/D | 75 | 4-Stroke | 2003–2005 | 67F-46241-00-00 | |
| Yamaha | F80TJRB | 80 | 4-Stroke | 2003 | 67F-46241-00-00 | |
| Yamaha | F80TLRA/B | 80 | 4-Stroke | 2000–2003 | 67F-46241-00-00 | |
| Yamaha | F90JA | 90 | 4-Stroke | 2013–2017 | 67F-46241-00-00 | |
| Yamaha | F90LA | 90 | 4-Stroke | 2012–2016 | 67F-46241-00-00 | |
| Yamaha | F90TJR | 90 | 4-Stroke | 2006–2011 | 67F-46241-00-00 | |
| Yamaha | F90TJRB/C | 90 | 4-Stroke | 2003–2004 | 67F-46241-00-00 | |
| Yamaha | F90TLR | 90 | 4-Stroke | 2005–2011 | 67F-46241-00-00 | |
| Yamaha | F90TLRB | 90 | 4-Stroke | 2003 | 67F-46241-00-00 | |
| Yamaha | F90TXR | 90 | 4-Stroke | 2006–2011 | 67F-46241-00-00 | |
| Yamaha | F90XA | 90 | 4-Stroke | 2012–2017 | 67F-46241-00-00 | |
| Yamaha | F100TLRB | 100 | 4-Stroke | 2003 | 67F-46241-00-00 | |
| Yamaha | F100TLRX | 100 | 4-Stroke | 1999 | 67F-46241-00-00 | |
| Yamaha | F100TXRA/B | 100 | 4-Stroke | 2002–2003 | 67F-46241-00-00 | |
| Yamaha | F100TXRZ | 100 | 4-Stroke | 2001 | 67F-46241-00-00 | |
| Yamaha | F115JA | 115 | 4-Stroke | 2011–2014 | 67F-46241-00-00 | |
| Yamaha | F115LA | 115 | 4-Stroke | 2014 | 67F-46241-00-00 | |
| Yamaha | F115TJR | 115 | 4-Stroke | 2006–2011 | 67F-46241-00-00 | |
| Yamaha | F115TJRA/B/C/D | 115 | 4-Stroke | 2002–2005 | 67F-46241-00-00 | |
| Yamaha | F115TLR | 115 | 4-Stroke | 2005–2011 | 67F-46241-00-00 | |
| Yamaha | F115TLRA/B/C/D | 115 | 4-Stroke | 2000–2004 | 67F-46241-00-00 | |
| Yamaha | F115TLRZ | 115 | 4-Stroke | 2001 | 67F-46241-00-00 | |
| Yamaha | F115TXR | 115 | 4-Stroke | 2005–2011 | 67F-46241-00-00 | |
| Yamaha | F115TXRB | 115 | 4-Stroke | 2003 | 67F-46241-00-00 | |
| Yamaha | F115TXRY | 115 | 4-Stroke | 2000 | 67F-46241-00-00 | |
| Yamaha | F115XA | 115 | 4-Stroke | 2011–2013 | 67F-46241-00-00 | |
| Yamaha | LF115TXR | 115 | 4-Stroke | 2006–2011 | 67F-46241-00-00 | |
| Yamaha | LF115TXRA/B/C/D | 115 | 4-Stroke | 2001–2005 | 67F-46241-00-00 | |
| Yamaha | LF115TXRZ | 115 | 4-Stroke | 2001 | 67F-46241-00-00 | |
| Yamaha | LF115TXRY | 115 | 4-Stroke | 2000 | 67F-46241-00-00 | |
| Yamaha | LF115XA | 115 | 4-Stroke | 2011–2014 | 67F-46241-00-00 |
Technical Specs
- Product Type
- Timing Belt
- Installation
- Direct replacement
- Fuel Type
- Gasoline
- Material
- High-quality rubber with reinforced fiber
- Other Technical Attributes
- Designed for Yamaha outboard engines; provides long-lasting performance and reliability
What’s in the Box
- 1 x Timing Belt (67F-46241-00-00/115-05000091)
Installation Notes
- Before starting, disconnect the battery and ensure the engine is cool.
- Remove the engine cowling and any necessary components like the flywheel cover to access the timing belt.
- Carefully align the camshaft and crankshaft timing marks according to your engine’s service manual. This step is critical.
- Loosen the belt tensioner and remove the old timing belt. Inspect pulleys for wear or damage.
- Install the new belt, starting with the crankshaft sprocket and working your way around, ensuring the timing marks remain aligned.
- Apply the correct tension to the new belt as specified by the manufacturer. Do not over-tighten.
- Rotate the engine by hand for several full rotations to confirm the timing marks align perfectly after each cycle.
- Reassemble all components in reverse order of removal and reconnect the battery before testing the engine.
Troubleshooting & FAQ
What are the signs of a failing timing belt?
Common symptoms include visible cracks, fraying, missing teeth, or glazing on the belt itself. You might also hear ticking or slapping noises from the engine. A worn belt can lead to poor engine performance, misfires, or a complete failure to start.
How often should I replace my outboard's timing belt?
Always refer to your Yamaha owner's manual for the official service interval. As a general rule, timing belts are typically replaced every 1000 hours of use or every 5 years, whichever comes first, to prevent unexpected failure.
Can I damage my engine if I install the belt incorrectly?
Yes. The timing belt synchronizes the crankshaft and camshafts. Incorrect installation can cause the engine's valves to strike the pistons, leading to severe and costly internal engine damage. Professional installation is strongly recommended.
Is this belt the same quality as an original Yamaha part?
This is an aftermarket part designed to meet or exceed OEM specifications for fit, material durability, and performance. It serves as a reliable and cost-effective alternative to the original 67F-46241-00-00 belt without compromising on quality.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
