Trim & Tilt Switch Assembly – Fits Yamaha 704 Single Engine Con...
Product Details

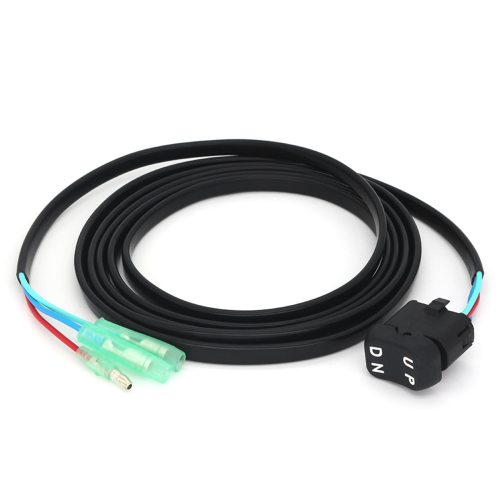

This is a direct-replacement Trim & Tilt Switch Assembly – Fits Yamaha 704 Single Engine Control Handle (Replaces 704-82563-41-00). It is designed for compatibility with a wide range of Yamaha outboard motors that utilize the 704 single binnacle control handle, primarily those from model years 2006 and newer.
This part provides a direct interchange for Yamaha OEM part numbers 704-82563-41-00 and its superseded version, 704-82563-42-00.
- Installs directly into the 704 single engine control handle.
- Features an approximately 2.2 m (7.2 ft) cable for convenient routing.
- Designed with an ergonomic, non-slip surface for reliable operation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 704-82563-41-00 | 704-82563-42-00 | Original Part |
| Yamaha | 704-82563-42-00 | — | Current Superseded Part |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Note: This switch is specifically designed for the control handle itself rather than specific engine models. It will work with any Yamaha outboard motor that uses the 704 single engine control handle, typically from 2006 onward.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | Various with 704 single engine control | Various | 2 & 4-Stroke | 2006 and newer | 704-82563-41-00 | Superseded by 704-82563-42-00 |
Technical Specs
- Product Type
- Trim & Tilt Switch Assembly
- Installation
- Direct replacement in 704 single engine control handle
- Connection
- Wired, approx. 2.2 m (7.2 ft) cable length
- Housing Material
- ABS plastic
- Housing Color
- Black
- Dimensions
- Approximately 3.94 × 3.94 × 3.94 inches (100 × 100 × 100 mm)
- Weight
- Approximately 114 g (4.34 oz)
- Other Technical Attributes
- Ergonomically designed non-slip surface for easy operation
What’s in the Box
- 1 × Trim & Tilt Switch Assembly (704-82563-41-00)
Installation Notes
- Disconnect the boat's battery to prevent electrical shorts.
- Access the rear of the 704 control handle assembly. This may require removing screws or panel covers.
- Carefully unplug the old trim and tilt switch from its wiring harness connector.
- Release any clips or screws holding the old switch in place and remove it from the handle.
- Insert the new switch assembly, ensuring it seats correctly and securely.
- Connect the new switch's wiring harness to the corresponding connector.
- Reassemble the control handle and any panels that were removed.
- Reconnect the battery and test the new switch to ensure proper up/down trim and tilt functionality.
Troubleshooting & FAQ
How do I confirm this switch fits my specific boat?
This switch fits the Yamaha 704 single engine control handle, not a specific engine model. If your boat uses this control box (common on 2006 and newer installations), this switch is the correct replacement. Always verify by comparing your old part to our photos and listed part numbers.
What are the signs my old trim/tilt switch is failing?
Common signs of failure include intermittent operation (working only sometimes), the switch being physically stuck, or the trim/tilt running in only one direction or not at all. Before replacing the switch, check the system's fuse and relays to rule out other issues.
Can I install this switch myself?
Yes, this is a common DIY repair for those with basic mechanical and electrical skills. It involves disconnecting the battery, accessing the control handle's internals, and swapping the switch. However, if you are not comfortable with wiring, professional installation is recommended.
Will this work on a dual-engine setup?
No, this switch is specifically designed for the 704 *single* engine control handle. Dual-engine setups use a different control box and switch assembly.
What is the difference between part 704-82563-41-00 and 704-82563-42-00?
The part number 704-82563-42-00 is the official superseded version from Yamaha, replacing 704-82563-41-00. They are functionally identical, and this aftermarket part is designed to replace both versions.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
