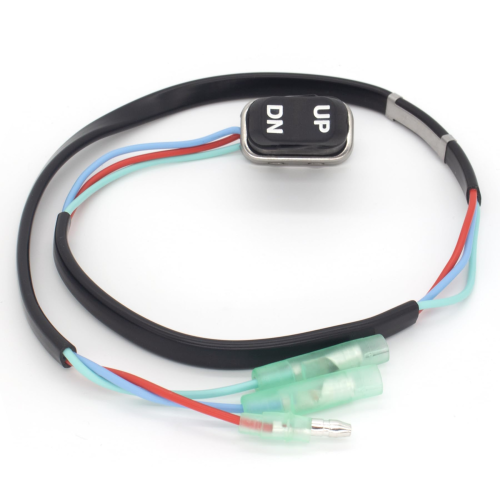

Trim & Tilt Switch Assembly – Fits Yamaha 8-250 HP (Replaces 703-82563-02-00, 703-82563-01-00) is backordered and will ship as soon as it is back in stock.
Product Details
This aftermarket Trim & Tilt Switch Assembly provides precise control over the power trim and tilt functions for a wide range of Yamaha 2-stroke and 4-stroke outboard motors, from 8 HP to 250 HP, specifically for models manufactured between 2001–2003. It installs directly into the remote control box for reliable, convenient operation.
This assembly is a direct replacement for Yamaha part numbers 703-82563-02-00 and 703-82563-01-00, and interchanges with NorthBoat 703-82563-02 and Darupsun 703-82563-02-00.
- Designed for direct installation in the remote control box.
- Engineered as a direct OEM replacement for a perfect fit.
- Includes an attached cable harness (approximately 51 cm).
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 703-82563-02-00 |
| Yamaha | 703-82563-01-00 |
| NorthBoat | 703-82563-02 |
| Darupsun | 703-82563-02-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Outboards: This part is compatible with a wide range of models from 2001 to 2003. Please verify your specific model and year below to ensure correct fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115TJRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TLRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TXRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 130TLRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 90TJRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C40TLRZ | 40 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C50TLRZ | 50 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F100TLRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F100TXRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F115TLRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ELHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ELRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ESHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ESRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25MLHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25MSHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25TLRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F80TLRZ | 80 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | L130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX225TXRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TURZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TXRZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | SX150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX225TURZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX225TXRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX250TURZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX250TXRZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PLHZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PLRZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PXHZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PXRZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | V150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX225TLRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ175TLRZ | 175 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z175TXRZ | 175 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TLRA | 115 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 115TXRA | 115 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 130TLRA | 130 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 130TXRA | 130 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 60TLRA | 60 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 70TLRA | 70 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 90TLRA | 90 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | C40TLR | 40 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F100TLRA | 100 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TJRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TLRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TXRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F15PLHA | 15 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F15PLRA | 15 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F200TXRA | 200 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F225TURA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F225TXRA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ELHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ELRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ESHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ESRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25MLHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25MSHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25TLRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F30TLRA | 30 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40ESRA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40MJHA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40MLHA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40TLRA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F50TJRA | 50 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F50TLRA | 50 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F60TLRA | 60 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F80TJRA | 80 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F80TLRA | 80 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | LF115TXRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF200TXRA | 200 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF225TURA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF225TXRA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX225TXRA | 225 | 2-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TURA | 250 | 2-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TXRA | 250 | 2-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ200TXRA | 200 | 2-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | SX150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | SX200TXRA | 200 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | SX225TURA | 225 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | SX225TXRA | 225 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | SX250TURA | 250 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | SX250TXRA | 250 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T25TLRA | 25 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T50TLRA | 50 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8ELHA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8EXHA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8PLHA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8PLRA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8PXHA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | T8PXRA | 8 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | V150TLRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VX150TLRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VX200TLRA | 200 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VX225TLRA | 225 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VX250TLRA | 250 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VZ150TLRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VZ175TLRA | 175 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VZ200TLRA | 200 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | Z150TLRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | Z150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | Z175TXRA | 175 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | Z200TXRA | 200 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | VX150TLRB | 150 | 2-Stroke | 2003 | 703-82563-02-00 |
Technical Specs
- Product Type
- Trim & Tilt Switch Assembly
- Installation
- Direct OEM replacement
- Connection
- Remote Control Box
- Housing Material
- Plastic
- Housing Color
- Black
- Dimensions
- 32 × 20 × 32 mm
- Cable Length
- approximately 51 cm
- Warranty
- Varies by seller (1-5 years reported)
What’s in the Box
- 1 x Trim & Tilt Switch Assembly (703-82563-02-00, 703-82563-01-00)
Installation Notes
- Ensure the engine is off and disconnect the battery terminals to prevent electrical hazards.
- Open the housing of the remote control box to access the internal components.
- Locate the existing trim and tilt switch and carefully disconnect its wiring harness.
- Remove any screws or clips holding the old switch in place and remove it from the control box.
- Install the new switch assembly, ensuring it is seated correctly.
- Connect the new switch's wiring harness to the corresponding connector inside the control box.
- Securely close the remote control box housing.
- Reconnect the battery, then test the trim and tilt functions to confirm proper operation.
Troubleshooting & FAQ
How do I know if my trim/tilt switch is failing?
Common signs of a faulty switch include intermittent operation, the trim/tilt function working in only one direction (up or down), or a complete failure to respond when the switch is pressed.
Is this switch difficult to install?
Installation is generally straightforward for individuals with basic mechanical and electrical skills, as it involves accessing the remote control box wiring. However, professional installation is always recommended if you are unfamiliar with marine electrical systems.
Does this fit all Yamaha remote controls?
This switch is specifically designed for Yamaha remote control boxes associated with 8 HP to 250 HP outboard models from 2001–2003. Always verify your original part number and check the compatibility list before ordering.
What is the difference between part numbers 703-82563-02-00 and 703-82563-01-00?
The part number 703-82563-02-00 is a supersession, meaning it is a newer, updated version of 703-82563-01-00. Both parts are functionally identical and completely interchangeable for the models listed.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials and manufactured in an ISO 9002 facility, where it is batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
About Sea Sierra
- Pro-Grade Standards — We supply marine parts engineered to OEM-level tolerances and tested for real-world conditions.
- Fast Global Fulfillment — Free standard delivery to most regions in 5–15 days.
- Manufacturer-Direct Value — Fair pricing without compromising on materials or quality control.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
