Trim & Tilt Switch Assembly – Fits Yamaha Outboard (8HP-250HP) ...
Trim & Tilt Switch Assembly – Fits Yamaha Outboard (8HP-250HP) (Replaces 703-82563-02-00, 703-82563-01-00) is backordered and will ship as soon as it is back in stock.
Product Details

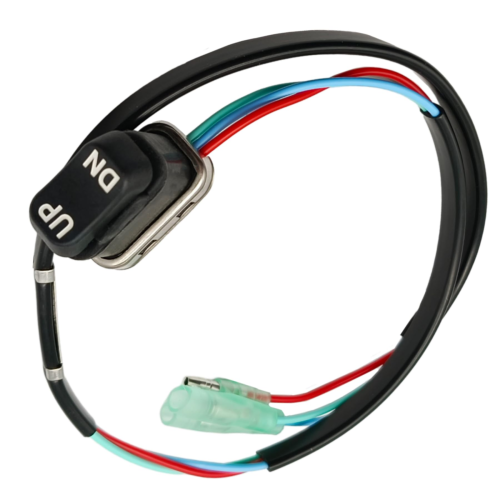

This aftermarket Trim & Tilt Switch Assembly – Fits Yamaha Outboard Motors (Replaces 703-82563-02-00, 703-82563-01-00) is designed for a wide range of Yamaha 2-stroke and 4-stroke outboard motors from 8HP to 250HP, focusing on 2001–2002 models. It enables precise control over the power trim and tilt functions directly from the remote control box, ensuring reliable operation.
This part directly replaces Yamaha OEM part numbers 703-82563-02-00 and 703-82563-01-00, and is an equivalent for aftermarket references like NorthBoat 703-82563-02 and Darupsun 703-82563-02-00.
- Designed for direct OEM replacement in Yamaha remote control boxes.
- Features an ON-OFF-ON operation mode for intuitive tilt control.
- Comes with an attached cable measuring approximately 51 cm (20 in).
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 703-82563-02-00 |
| Yamaha | 703-82563-01-00 |
| NorthBoat | 703-82563-02 |
| Darupsun | 703-82563-02-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is documented to fit the following Yamaha outboard models from 2001 and 2002.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115TJRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TLRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TXRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 130TLRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 90TJRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C40TLRZ | 40 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C50TLRZ | 50 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | C90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F100TLRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F100TXRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F115TLRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ELHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ELRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ESHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25ESRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25MSHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F25TLRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | F80TLRZ | 80 | 4-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | L130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX225TXRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TURZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LX250TXRZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | LZ200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | Counter rotation |
| Yamaha | SX150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX225TURZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX225TXRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX250TURZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | SX250TXRZ | 250 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PLHZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PLRZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PXHZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | T8PXRZ | 8 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | V150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VX225TLRZ | 225 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ175TLRZ | 175 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | VZ200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z150TLRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z175TXRZ | 175 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z200TLRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | Z200TXRZ | 200 | 2-Stroke | 2001 | 703-82563-02-00 | |
| Yamaha | 115TLRA | 115 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 115TXRA | 115 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 130TLRA | 130 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 130TXRA | 130 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 60TLRA | 60 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 70TLRA | 70 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | 90TLRA | 90 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | C40TLR | 40 | 2-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F100TLRA | 100 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TJRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TLRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F115TXRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F15PLHA | 15 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F15PLRA | 15 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F200TXRA | 200 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F225TURA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F225TXRA | 225 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ELHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ELRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ESHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25ESRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25MLHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25MSHA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F25TLRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F30TLRA | 30 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40ESRA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40MJHA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40MLHA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F40TLRA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F50TJRA | 50 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F50TLRA | 50 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F60TLRA | 60 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F80TJRA | 80 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | F80TLRA | 80 | 4-Stroke | 2002 | 703-82563-02-00 | |
| Yamaha | LF115TXRA | 115 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
| Yamaha | LF200TXRA | 200 | 4-Stroke | 2002 | 703-82563-02-00 | Counter rotation |
Technical Specs
- Product Type
- Trim & Tilt Switch Assembly
- Installation
- Direct OEM replacement
- Connection
- Remote Control Box
- Cable Length
- Approximately 51 cm (20 in)
- Size
- 32 x 20 x 32 mm
- Switch Type
- Tilt Switch
- Circuit Type
- Parallel
- Operation Mode
- ON-OFF-ON
- Contact Type
- Normally Closed
- Connector Type
- Molex
- Terminal
- Through Hole
- Contact Material
- Metal
What’s in the Box
- 1 x Trim & Tilt Switch Assembly (Replaces 703-82563-02-00, 703-82563-01-00)
Installation Notes
- Safety First: Disconnect the battery cables from the battery before starting work to prevent electrical shorts.
- Access the Remote: Open the housing of your Yamaha remote control box to access the internal wiring and components.
- Locate and Disconnect: Identify the old trim/tilt switch. Carefully unplug its Molex connector from the wiring harness.
- Remove the Old Switch: Depress any retaining clips holding the switch in place and push it out of the handle.
- Install the New Switch: Insert the new switch assembly into the empty slot until it clicks securely into place.
- Connect Wiring: Plug the new switch's connector into the corresponding socket in the wiring harness. Ensure it is fully seated.
- Test Functionality: Temporarily reconnect the battery. Test the up and down functions of the trim/tilt switch.
- Reassemble: Once confirmed, disconnect the battery again, then close and secure the remote control box housing. Reconnect the battery.
Troubleshooting & FAQ
How do I know if my trim/tilt switch is failing?
Common signs include intermittent operation (working only sometimes), the trim only working in one direction (up or down), or a complete lack of response when the switch is pressed. You may also hear a clicking sound from the relay without any motor movement, indicating the relay is getting a signal but the switch-to-relay connection might be faulty.
Is this switch compatible with models outside of 2001–2002?
While this part is specified for 2001-2002 models, the 703-series remote control box was used across many years. However, internal wiring can vary. We strongly recommend using the part numbers (703-82563-02-00, 703-82563-01-00) and visually comparing your old switch to our photos to ensure a match, rather than relying on year alone.
Can I install this part myself?
Yes, this is a common DIY repair for boaters with basic mechanical skills. The process involves opening the remote control box, disconnecting the old switch, and plugging in the new one. However, if you are not comfortable with wiring, we recommend professional installation to avoid damage.
Does the 51 cm (20 in) cable length fit all compatible remote controls?
Yes, the ~51 cm cable is the standard length for this application and provides sufficient slack to route the wiring within the Yamaha 703 remote control box housing without stress on the connector.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Our parts are manufactured in an ISO 9002 facility and are batch-inspected for quality and consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free for most orders, and expedited options will appear at checkout if available for your location.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window, provided the part is unused and in its original condition. See our full policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
