Trim & Tilt Switch Assembly – Fits Yamaha Outboard Engines 9.9-250HP (Replaces 703-82563-02-00, 703-82563-01-00)
Trim & Tilt Switch Assembly – Fits Yamaha Outboard Engines 9.9-250HP (Replaces 703-82563-02-00, 703-82563-01-00) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Trim & Tilt Switch Assembly – Fits Yamaha Outboard Engines 9.9-...
Trim & Tilt Switch Assembly – Fits Yamaha Outboard Engines 9.9-250HP (Replaces 703-82563-02-00, 703-82563-01-00) is backordered and will ship as soon as it is back in stock.
Product Details

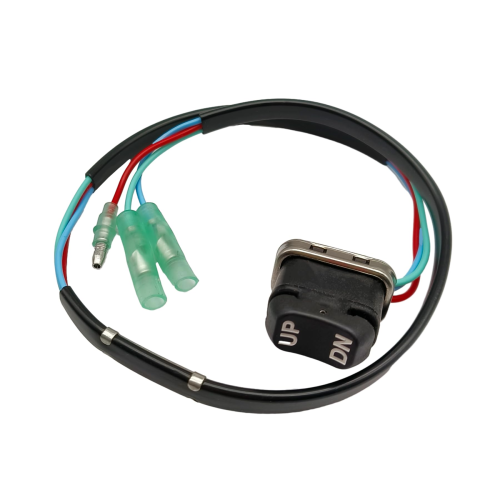

This Yamaha Trim & Tilt Switch Assembly is designed for Yamaha outboard engines equipped with a side mount (703 series) remote control. It offers broad compatibility for 2-stroke and 4-stroke models ranging from 9.9HP to 250HP, manufactured between 1984–2003.
This component serves as a direct interchange for Yamaha part numbers 703-82563-02-00, 703-82563-01-00, and 703-82563-00-00.
- Installs directly into the handle of 703 series side mount remote control units.
- Includes a pre-wired 51 cm cable with a Molex-style connector for plug-and-play installation.
- Features an IP68 international protection rating for durability in marine environments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 703-82563-00-00 | 703-82563-01-00 | |
| Yamaha | 703-82563-01-00 | 703-82563-02-00 | |
| Yamaha | 703-82563-02-00 | — | Current Replacement |
Engine & Model Compatibility
Confirm your engine model and year in the table below. This switch is designed for Yamaha outboards using the 703 series remote control box.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115TJRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 115TLRZ/115TXRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 130TLRZ/130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 90TJRZ/90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | C40TLRZ | 40 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | C50TLRZ | 50 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | C60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | C70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | C90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F100TLRZ/F100TXRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F115TLRZ/F115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F25ELHZ/F25ELRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F25ESHZ/F25ESRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F25MLHZ/F25MSHZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F25TLRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | F80TLRZ | 80 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | L130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | LF115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | LX/SX/LZ 150-250 Series | 150-250 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | T8P Series | 8 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly |
| Yamaha | V/VX/VZ 150-225 Series | 150-225 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | Z150-200 Series | 150-200 | 2-Stroke | 2001 | 703-82563-02-00 | Remote Control Assembly 1 |
| Yamaha | 115TLRA/115TXRA | 115 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | 130TLRA/130TXRA | 130 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | 150TXRA | 150 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | 60TLRA | 60 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | 70TLRA | 70 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | 90TLRA | 90 | 2-Stroke | 2002 | 703-82563-01-00 | Remote Control Assembly |
| Yamaha | F Series (F25-F225) | 25-225 | 4-Stroke | 2002 | 703-82563-01-00 | Various models, Remote Control Assembly |
| Yamaha | T Series | 8-50 | 2-Stroke | 2002 | 703-82563-01-00 | Various models, Remote Control Assembly |
| Yamaha | Multiple Models | 9.9-250 | 2- & 4-Stroke | 2003 | 703-82563-00-00 | Compatible with 703 remote controls |
Technical Specs
- Product Type
- Trim & Tilt Switch Assembly
- Installation
- Side mount remote control (703 series)
- Operation Mode
- ON-OFF-ON
- Contact Type
- Normally Closed
- Connector Type
- Molex
- Terminal
- Through Hole
- Circuit Type
- Parallel
- Contact Material
- Metal
- International Protection Rating
- IP68
- Number of Positions
- 3
- Switch Type
- Tilt Switch
- Mounting Type
- Surface Mount
- Cable Length
- 51 cm (approx.)
- Housing Material
- Metal + Plastic
- Dimensions
- 32 x 20 x 32 mm
What’s in the Box
- 1 x Trim & Tilt Switch Assembly
Installation Notes
- Safety First: Disconnect the engine's battery cables to prevent electrical shorts.
- Access the Control: Loosen and open the housing of your Yamaha 703 remote control unit to access the internal components.
- Locate and Disconnect: Identify the old trim/tilt switch and carefully unplug its electrical connector.
- Remove Old Switch: Press the retaining clips or remove the screws holding the old switch in place and push it out of the handle.
- Install New Switch: Insert the new switch into the handle, ensuring it clicks securely into place.
- Reconnect Wiring: Plug the new switch's connector into the corresponding harness socket.
- Reassemble and Test: Close the remote control housing, reconnect the battery, and test the trim and tilt functions thoroughly before use.
Troubleshooting & FAQ
How do I confirm this switch fits my Yamaha engine?
This switch is compatible with most Yamaha outboards from 1984–2003 (9.9HP to 250HP) that use the side-mount 703 Remote Control Assembly. Cross-reference your engine's model and year against the compatibility table on this page. If your model is listed and you have this control box, the switch will fit.
What are the signs of a failing trim and tilt switch?
Common symptoms include intermittent operation, the switch only working in one direction (up or down), or a complete lack of response when the switch is pressed. This usually points to worn internal contacts or corrosion from moisture.
Can I install this switch myself?
Installation is straightforward for those with basic mechanical and electrical skills. However, to ensure safety and proper function, professional installation is always recommended. Always disconnect the battery before starting work.
Is this an original Yamaha (OEM) part?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
About Sea Sierra
- Pro-Grade Standards — We supply marine parts engineered to OEM-level tolerances and tested for real-world conditions.
- Fast Global Fulfillment — Free standard delivery to most regions in 5–15 days.
- Manufacturer-Direct Value — Fair pricing without compromising on materials or QC.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
