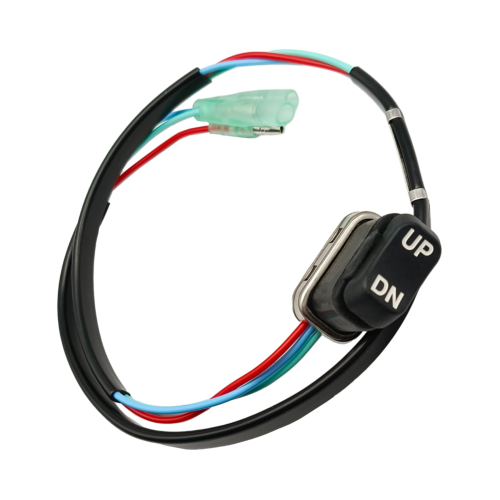

Trim & Tilt Switch – Fits Yamaha Outboard (9.9-250 HP) (Replaces 703-82563-02-00)
Trim & Tilt Switch – Fits Yamaha Outboard (9.9-250 HP) (Replaces 703-82563-02-00) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Trim & Tilt Switch – Fits Yamaha Outboard (9.9-250 HP) (Replace...
Trim & Tilt Switch – Fits Yamaha Outboard (9.9-250 HP) (Replaces 703-82563-02-00) is backordered and will ship as soon as it is back in stock.
Product Details
This replacement Trim & Tilt Switch – Fits Yamaha Outboard Remote Controls (Replaces 703-82563-02-00, 703-82563-01-00) is designed for a wide range of Yamaha 2-stroke and 4-stroke outboard engines from 9.9 HP to 250 HP, manufactured between 1984 and 2003. It is specifically built for use with Yamaha's 703 side mount remote control boxes, ensuring seamless operation.
It serves as a direct interchange for Yamaha part numbers 703-82563-00-00, 703-82563-01-00, and 703-82563-02-00, as well as aftermarket equivalents like HeuroFosh 703-82563-02, NorthBoat 703-82563-02, and Marinepro 703-82563-02-00.
- Easy Installation: Features a direct plug-and-play design with a standard Molex connector.
- Durable Construction: Built with a high-quality plastic housing and metal contacts, rated IP68 for water and dust resistance.
- Precise Control: Provides reliable ON-OFF-ON operation for consistent trim and tilt adjustments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 703-82563-00-00 |
| Yamaha | 703-82563-01-00 |
| Yamaha | 703-82563-02-00 |
| HeuroFosh | 703-82563-02 |
| NorthBoat | 703-82563-02 |
| Marinepro | 703-82563-02-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is documented to fit over 100 Yamaha models from 1984–2003 using the 703 remote control. The following list is a representative sample.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115TJRZ, 115TLRZ, 115TXRZ | 115 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | 130TLRZ, 130TXRZ | 130 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | 150TXRZ | 150 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | 60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | 70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | 90TJRZ, 90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | C40TLRZ | 40 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | C50TLRZ | 50 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | C60TLRZ | 60 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | C70TLRZ | 70 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | C90TLRZ | 90 | 2-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F100TLRZ, F100TXRZ | 100 | 4-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F115TLRZ, F115TXRZ | 115 | 4-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F25ELHZ, F25ELRZ, F25ESHZ, F25ESRZ, F25MLHZ, F25MSHZ, F25TLRZ | 25 | 4-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F80TLRZ | 80 | 4-Stroke | 2001 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | Various 2-Stroke/4-Stroke models | 9.9-250 | 2- & 4-Stroke | 1984–2003 | 703-82563-02-00 | With side mount (703) remote controls |
| Yamaha | 115TLRA, 115TXRA | 115 | 2-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | 130TLRA, 130TXRA | 130 | 2-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | 150TXRA | 150 | 2-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | 60TLRA, 70TLRA, 90TLRA | 60-90 | 2-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | F100TLRA, F115TLRA, F115TXRA, F115TJRA | 100-115 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F200TXRA, F225TURA, F225TXRA | 200-225 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly 1 |
| Yamaha | F25ELHA, F25ELRA, F25ESHA, F25ESRA, F25MLHA, F25MSHA, F25TLRA | 25 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | F30TLRA | 30 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | F40ESRA, F40MJHA, F40MLHA, F40TLRA | 40 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly |
| Yamaha | F50TJRA, F50TLRA | 50 | 4-Stroke | 2002 | 703-82563-02-00 | Remote control assembly 1 |
Technical Specs
- Product Type
- Trim & Tilt Switch Assembly
- Installation
- Direct plug-and-play replacement
- Connection
- Molex connector
- Switch Type
- Tilt Switch
- Mounting Type
- Surface mount
- Circuit Type
- Parallel
- Contact Type
- Normally Closed
- Number of Positions
- 3
- Operation Mode
- ON-OFF-ON
- Terminal
- Through Hole
- Contact Material
- Metal
- Housing Material
- Plastic
- IP Rating
- IP68
What’s in the Box
- 1 x Trim & Tilt Switch Assembly (703-82563-02-00)
Installation Notes
- Safety First: Disconnect the boat's battery to prevent electrical shorts.
- Access the Switch: Locate and access the old trim/tilt switch on your 703 remote control unit. This may require removing a cover plate.
- Disconnect Old Switch: Carefully unplug the Molex electrical connector from the back of the old switch.
- Remove Old Switch: Unfasten any mounting screws or clips holding the switch in place and remove it.
- Install New Switch: Position the new switch in the mounting location and secure it with the original hardware.
- Connect New Switch: Firmly plug the new switch's Molex connector into the corresponding harness plug.
- Test Functionality: Reconnect the battery and test the trim and tilt functions to ensure proper operation up and down.
- Reassemble: Reinstall any covers or panels that were removed.
Troubleshooting & FAQ
Which Yamaha remote controls is this switch for?
This switch is a direct replacement for the toggle found in Yamaha 703 series side mount remote control boxes.
How can I be sure this will fit my engine?
This part fits a very wide range of Yamaha outboards (9.9-250 HP, 1984–2003). The best way to confirm is to match your original part number to one in the Part Number Matrix or check your specific engine model against the compatibility list. Visually comparing your old switch to our product images is also highly recommended.
Is this a simple plug-and-play installation?
Yes. The switch comes with the correct Molex-style plug to connect directly to the Yamaha factory wiring harness without any cutting or splicing required.
What are common signs of a failing trim/tilt switch?
Symptoms include intermittent or non-responsive operation (no movement up or down), the switch feeling loose or stuck, or the trim operating in only one direction. This can be caused by internal corrosion or contact failure.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
