Product Details
This Water Pump Impeller – Fits Yamaha 75-100HP 4-Stroke Outboards (Replaces 67F-44352-00-00) is designed for compatibility with Yamaha 75-100HP 4-stroke outboard motors manufactured between 1999 and 2017, including F75, F80, F90, and F100 models. It serves as a direct replacement part to restore cooling system performance.
This component provides a direct interchange for Yamaha part numbers 67F-44352-00-00 and 67F-44352-01-00, as well as aftermarket equivalents from Sierra, Mallory, GLM, SEI, Red Rhino, and CEF.
- Installs internally within the lower unit's water pump housing.
- Constructed from marine-grade neoprene rubber for durability and efficiency.
- Features a 6-blade design to meet OEM flow specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 67F-44352-00-00 |
| Yamaha | 67F-44352-01-00 |
| Sierra | 18-3042 |
| Mallory | 9-45612 |
| GLM | 89624 |
| SEI | 96-499-03M |
| Red Rhino | YA-108 |
| CEF | 500364 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75A | 75 | 4-Stroke | 2003–2017 | 67F-44352-00-00 | |
| Yamaha | F80 | 80 | 4-Stroke | 1999–2003 | 67F-44352-00-00 | |
| Yamaha | F80 Jet Drive | 80 | 4-Stroke | 2001–2002 | 67F-44352-00-00 | |
| Yamaha | F90 | 90 | 4-Stroke | 2003–2011 | 67F-44352-00-00 | |
| Yamaha | F90A | 90 | 4-Stroke | 2012–2017 | 67F-44352-00-00 | |
| Yamaha | F90 Jet Drive | 90 | 4-Stroke | 2003–2004 | 67F-44352-00-00 | |
| Yamaha | F100 | 100 | 4-Stroke | 1999–2003 | 67F-44352-00-00 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Internal - Lower Unit
- Material
- Marine Grade Neoprene Rubber
- Number of Blades
- 6
- Dimensions
- Height: 34.7 mm (1.37 in), Overall Diameter: 58.2 mm (2.29 in), Shaft Diameter: 20.0 mm (0.79 in)
- Weight
- 40 g (1.4 oz)
- Warranty
- Varies by manufacturer

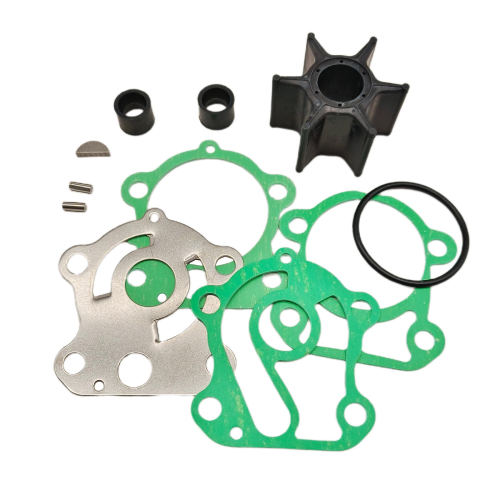

What’s in the Box
- When purchased as an individual impeller:
- 1 x Impeller (Replaces 67F-44352-00-00)
- When purchased as part of a service kit (contents may vary):
- 1 x Impeller (67F-44352-00-00)
- 1 x Key (90280-04M04)
- 1 x Gasket (688-44315-A0)
- 1 x Gasket (688-44324-A0)
- 3 x Drain Screw Gasket (90430-08020)
Installation Notes
- Disconnect the battery and shift the outboard into neutral.
- Place a drain pan under the gearcase and remove the drain screw to empty the gear oil.
- Remove the bolts securing the lower unit (gearcase) to the upper casing and carefully lower it.
- Unbolt and remove the water pump housing cover to access the impeller.
- Take note of the old impeller blade direction, then remove it and the woodruff key.
- Clean the housing interior and inspect it for wear, scoring, or corrosion.
- Install the new woodruff key and lubricate the new impeller with a light coat of grease or soapy water.
- Slide the new impeller onto the driveshaft, rotating it in the direction of engine operation to flex the blades correctly inside the housing.
- Reinstall the water pump housing, gaskets, and cover, ensuring proper torque on all bolts.
- Reattach the lower unit to the outboard, ensuring the water tube and shift shaft align.
- Refill the gearcase with fresh oil, re-start the engine using a water source, and confirm water is exiting the tell-tale port.
Troubleshooting & FAQ
How do I know if my impeller needs replacing?
Common signs of a failed or failing impeller include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alerts, or a noticeable drop in water pressure. Visual inspection may reveal cracked, brittle, or missing blades.
What is the recommended replacement interval for this impeller?
For most recreational boats, it is recommended to inspect the impeller annually and replace it every 1-2 years, regardless of visual condition. For boats used in saltwater or sandy/silty conditions, annual replacement is strongly advised.
Will this fit my F90 model from 2012?
Yes, this impeller is compatible with the Yamaha F90A model for years 2012 through 2017. Always cross-reference the OEM part number 67F-44352-00-00 to be certain.
What's the difference between 67F-44352-00-00 and 67F-44352-01-00?
The part number 67F-44352-01-00 is listed as a supersession or replacement for the original 67F-44352-00-00. Both are dimensionally and functionally identical, and this aftermarket part is designed to replace both versions.
Do I need to lubricate the impeller during installation?
Yes, applying a thin layer of marine grease or soapy water to the inside of the pump cup and the impeller blades helps prevent damage during the first dry start-up and makes installation easier.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
